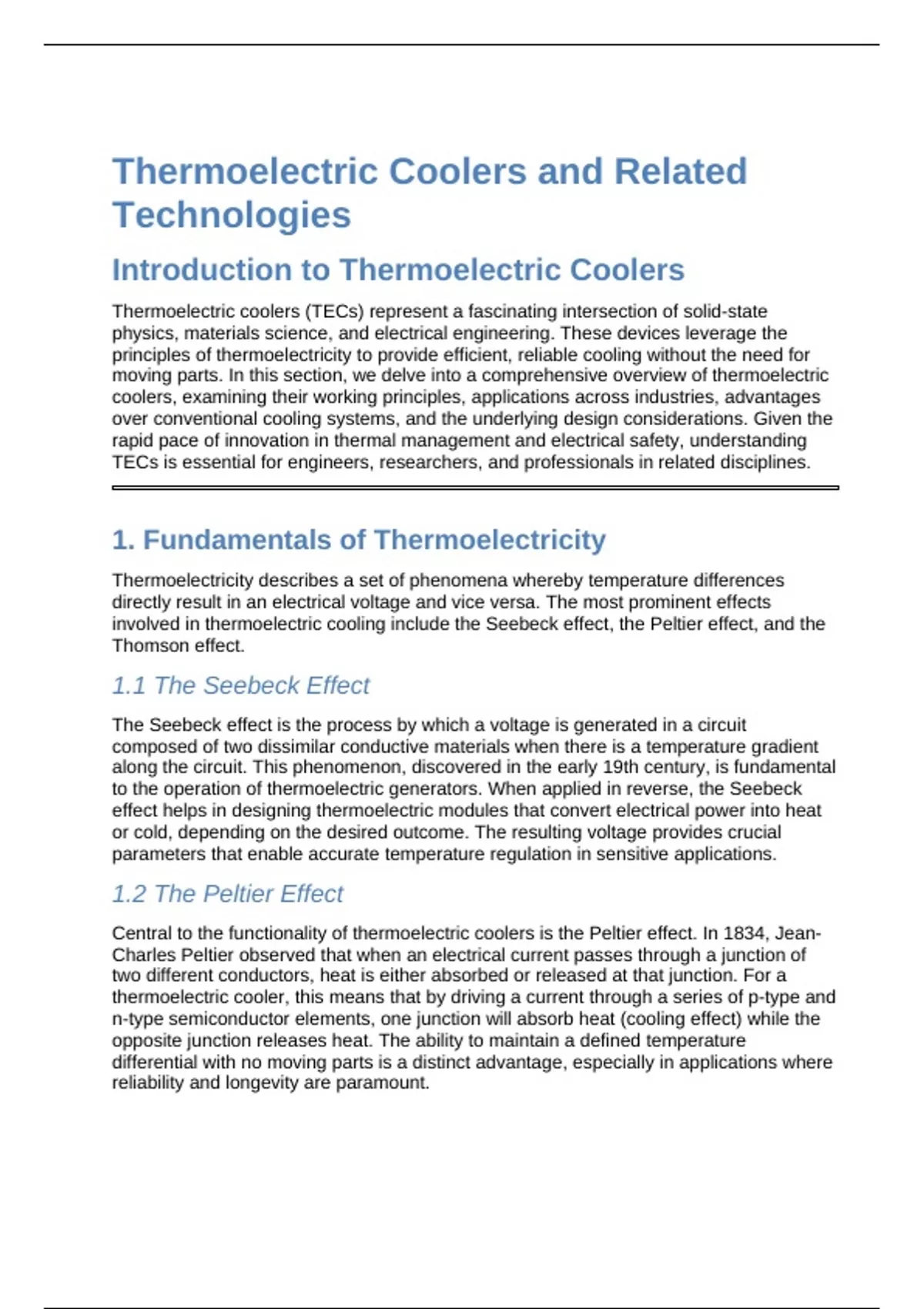

Thermoelectric Coolers and Related
Technologies
Introduction to Thermoelectric Coolers
Thermoelectric coolers (TECs) represent a fascinating intersection of solid-state
physics, materials science, and electrical engineering. These devices leverage the
principles of thermoelectricity to provide efficient, reliable cooling without the need for
moving parts. In this section, we delve into a comprehensive overview of thermoelectric
coolers, examining their working principles, applications across industries, advantages
over conventional cooling systems, and the underlying design considerations. Given the
rapid pace of innovation in thermal management and electrical safety, understanding
TECs is essential for engineers, researchers, and professionals in related disciplines.
1. Fundamentals of Thermoelectricity
Thermoelectricity describes a set of phenomena whereby temperature differences
directly result in an electrical voltage and vice versa. The most prominent effects
involved in thermoelectric cooling include the Seebeck effect, the Peltier effect, and the
Thomson effect.
1.1 The Seebeck Effect
The Seebeck effect is the process by which a voltage is generated in a circuit
composed of two dissimilar conductive materials when there is a temperature gradient
along the circuit. This phenomenon, discovered in the early 19th century, is fundamental
to the operation of thermoelectric generators. When applied in reverse, the Seebeck
effect helps in designing thermoelectric modules that convert electrical power into heat
or cold, depending on the desired outcome. The resulting voltage provides crucial
parameters that enable accurate temperature regulation in sensitive applications.
1.2 The Peltier Effect
Central to the functionality of thermoelectric coolers is the Peltier effect. In 1834, Jean-
Charles Peltier observed that when an electrical current passes through a junction of
two different conductors, heat is either absorbed or released at that junction. For a
thermoelectric cooler, this means that by driving a current through a series of p-type and
n-type semiconductor elements, one junction will absorb heat (cooling effect) while the
opposite junction releases heat. The ability to maintain a defined temperature
differential with no moving parts is a distinct advantage, especially in applications where
reliability and longevity are paramount.
,1.3 The Thomson Effect
Less commonly discussed but equally important is the Thomson effect, which describes
the heat absorption or evolution within a homogeneous conductor due to the flow of
electrical current in the presence of a temperature gradient. Although this effect is less
significant in typical industrial applications, modern thermal management systems do
consider it for optimization, especially in high-precision environments. The interplay
between the Seebeck, Peltier, and Thomson effects underpins the robust operational
framework of TECs.
2. Design and Operational Principles of
Thermoelectric Coolers
The design of thermoelectric coolers involves converting these thermoelectric
phenomena into a practical and reliable cooling module. TEC modules are typically
constructed as arrays of semiconductor p-n junctions sandwiched between two ceramic
plates. The design process incorporates several key factors, including material
selection, geometry of thermoelectric elements, and the method of heat rejection.
2.1 Material Selection
The efficiency of a thermoelectric cooler is highly dependent on the materials used for
the semiconductors. High-performance thermoelectric materials must exhibit high
electrical conductivity while maintaining low thermal conductivity. Some of the most
common materials used include:
• Bismuth Telluride (Bi₂Te₃): Predominantly used in low to moderate temperature
applications, Bi₂Te₃ and its alloys are renowned for their superior performance
near room temperature.
• Lead Telluride (PbTe): Used in medium temperature ranges and known for its
excellent thermoelectric properties when properly doped.
• Silicon-Germanium (SiGe) Alloys: Preferred for high temperature applications,
especially in the aerospace industry, where reliability at extreme conditions is
critical.
• Skutterudites: Materials that have recently gained attention due to their potential
for improved efficiency through nanostructuring.
These materials are continuously being improved upon with advances in
nanotechnology and materials science, promising even greater efficiencies and
temperature differences in the future.
2.2 Modular Design and Construction
TECs are constructed by stacking multiple thermoelectric pairs (often referred to as
couples) in series to increase the total cooling effect. Each module consists of:
, • P-type and N-type Elements: These are arranged alternately to allow a
continuous flow of electricity and ensure that the Peltier effect is optimally
utilized.
• Ceramic Substrates: The semiconductor elements are bonded to these
substrates, which provide electrical insulation and structural integrity while
allowing efficient heat conduction.
• Electrical Contacts and Interconnects: These elements ensure that the current
is evenly distributed across all semiconductor pairs, maximizing the device's
efficiency.
A typical TE module is assembled within a sealed housing, often with integrated heat
sinks or cold plates to facilitate the transfer of heat from the device to the surrounding
environment. The design also incorporates measures to prevent thermal stress and
mechanical fatigue due to cycles of heating and cooling.
2.3 Operational Considerations
When integrated into a cooling system, TECs require precise control of the electrical
current to maintain effective temperature regulation. The efficiency of a thermoelectric
cooler can be characterized by its coefficient of performance (COP), which is defined as
the ratio of heat removed from the cold side to the electrical power consumed. Key
operational considerations include:
• Heat Sink Integration: To sustain the thermal cycle, the hot side of the TEC
must efficiently dissipate the accumulated heat. This is typically achieved using
active or passive heat sinks, with the choice depending on the specific
application.
• Power Management: Proper regulation of current and voltage is essential to
optimize the performance of the thermoelectric module. Advanced power control
algorithms and temperature sensors are often employed for system monitoring.
• Thermal Interface Materials (TIMs): These materials improve thermal coupling
between the TEC and the components it cools, reducing resistance to heat flow
and enhancing overall system performance.
Development teams often simulate the thermal behavior of TEC assemblies using finite
element analysis (FEA), ensuring that every module adheres to the necessary
operational standards even under fluctuating environmental conditions.
3. Applications of Thermoelectric Coolers
The technological benefits of TECs have spurred their adoption in a wide range of
industries. Their robust design, high reliability, and unique thermal management
capabilities make thermoelectric coolers valuable in circumstances where conventional
cooling systems may fall short.
, 3.1 Electronics and Semiconductor Cooling
One of the most prevalent applications of TECs is in electronics cooling. With the
miniaturization of electronic components and increasing computational demands,
overheating poses significant risks. In high-performance computers,
telecommunications equipment, and precision instruments, TECs help to:
• Control Temperature: Preventing thermal runaway in microprocessors and
other key circuitry.
• Improve Reliability: Ensuring sustained performance in demanding
environments.
• Reduce Maintenance Costs: TEC systems have no moving parts, thereby
reducing wear and tear and leading to longer operational lifetimes.
The integration of TECs in electronics allows for precise temperature regulation,
ensuring that devices operate within their specified ranges and thereby extending the
lifespan and reliability of the components.
3.2 Medical and Laboratory Instruments
In medical diagnostics and laboratory instruments where sensitive measurements are
conducted, maintaining a stable temperature is paramount. TECs are used in:
• Medical Cooling Applications: Devices such as portable refrigeration units for
biological samples, vaccine storage, and diagnostic instruments.
• Laboratory Equipment: High-precision temperature controllers in
spectrophotometers, cryostats, and DNA sequencers.
The compact size and silent operation of TECs make them ideal for environments
where noise and mechanical vibrations might interfere with sensitive measurements.
3.3 Aerospace and Defense
In aerospace, thermoelectric coolers are valued for their reliability and ability to operate
in extreme conditions. They serve roles in:
• Avionics Cooling: Maintaining the thermal stability of sensitive instruments in
aircraft and spacecraft.
• Defense Applications: Cooling electronic components in rugged environments
where traditional cooling systems might fail due to mechanical shock or vibration.
Their ability to maintain consistent performance under thermal stress while requiring
minimal maintenance makes TECs a suitable candidate for applications where failure is
not an option.
3.4 Consumer Electronics and Portable Devices
Thermoelectric cooling is not limited to industrial applications. Increasingly, consumer
electronics are leveraging TECs for efficient thermal management. Examples include:
