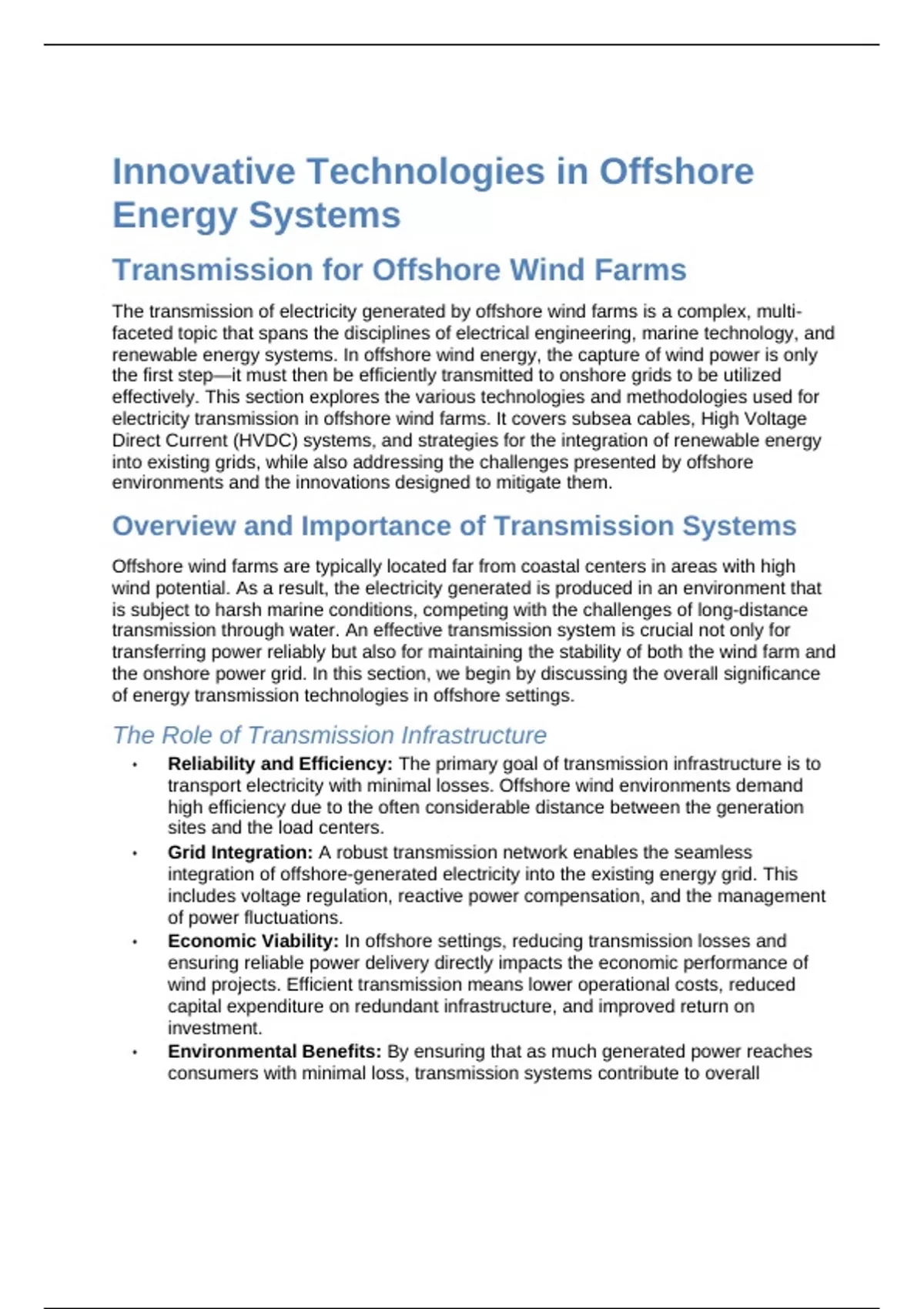

Innovative Technologies in Offshore
Energy Systems
Transmission for Offshore Wind Farms
The transmission of electricity generated by offshore wind farms is a complex, multi-
faceted topic that spans the disciplines of electrical engineering, marine technology, and
renewable energy systems. In offshore wind energy, the capture of wind power is only
the first step—it must then be efficiently transmitted to onshore grids to be utilized
effectively. This section explores the various technologies and methodologies used for
electricity transmission in offshore wind farms. It covers subsea cables, High Voltage
Direct Current (HVDC) systems, and strategies for the integration of renewable energy
into existing grids, while also addressing the challenges presented by offshore
environments and the innovations designed to mitigate them.
Overview and Importance of Transmission Systems
Offshore wind farms are typically located far from coastal centers in areas with high
wind potential. As a result, the electricity generated is produced in an environment that
is subject to harsh marine conditions, competing with the challenges of long-distance
transmission through water. An effective transmission system is crucial not only for
transferring power reliably but also for maintaining the stability of both the wind farm and
the onshore power grid. In this section, we begin by discussing the overall significance
of energy transmission technologies in offshore settings.
The Role of Transmission Infrastructure
• Reliability and Efficiency: The primary goal of transmission infrastructure is to
transport electricity with minimal losses. Offshore wind environments demand
high efficiency due to the often considerable distance between the generation
sites and the load centers.
• Grid Integration: A robust transmission network enables the seamless
integration of offshore-generated electricity into the existing energy grid. This
includes voltage regulation, reactive power compensation, and the management
of power fluctuations.
• Economic Viability: In offshore settings, reducing transmission losses and
ensuring reliable power delivery directly impacts the economic performance of
wind projects. Efficient transmission means lower operational costs, reduced
capital expenditure on redundant infrastructure, and improved return on
investment.
• Environmental Benefits: By ensuring that as much generated power reaches
consumers with minimal loss, transmission systems contribute to overall
, environmental sustainability. Reduced losses translate into lower emissions per
unit of usable energy, making offshore wind an even greener energy source.
By ensuring that energy generated offshore is reliably and efficiently transmitted to
consumption areas, transmission systems form the backbone of ensuring that offshore
wind power remains a competitive and sustainable alternative in the global energy mix.
Key Components in Offshore Transmission Systems
A typical offshore wind transmission system includes multiple components that work
together in harmony. Key elements include:
• Subsea Cables: Serve as the physical medium that carries electrical power from
turbines to the offshore converter stations and then to onshore grids.
• Converter Stations: Convert power from one form (most frequently AC) to
another (e.g., HVDC) to facilitate long-distance transmission with minimal losses.
• HVDC Systems: Convert alternating current to direct current for long-distance
transmission, which is particularly beneficial in reducing transmission losses over
long distances.
• Landfall and Onshore Management Stations: Manage the final stage of power
integration where electricity is synchronized with onshore grid parameters.
Understanding these components is critical for grasping how offshore wind power can
be effectively harnessed and delivered to consumers.
Subsea Cable Technologies
Subsea cables are the elemental components that physically transmit power from
offshore wind turbines to onshore grids. Their design, construction, and deployment
require specialized expertise due to the challenging marine environment. This section
delves into the intricate aspects of subsea cable technologies, their construction
materials, design considerations, and installation procedures.
Types and Construction of Subsea Cables
Subsea cables used in offshore wind transmission are typically classified by their
insulation and shielding materials, their operating voltage, and the level of armour
protection necessary to withstand physical and environmental stresses. There are
several types of subsea cables:
• Armoured Cables: These cables are designed with layers of steel armour that
protect the conductor from mechanical damage caused by fishing activities,
anchors, and other marine hazards.
• Non-Armoured Cables: Suitable for areas with low mechanical risk, these
cables are lighter and less costly but require careful route selection to avoid
potential damage.
, • Hybrid Cables: Combining both armored and non-armored sections, these
cables utilize a graded approach depending on varying risk zones along the
installation route.
A typical subsea cable comprises multiple layers:
1. Conductor: Usually copper or aluminum, which carries the electrical current.
2. Insulation: Often made from cross-linked polyethylene (XLPE) or other high-
performance insulating polymers that protect against short circuits.
3. Screening Layers: Metallic screens help to manage and mitigate the effects of
electromagnetic interference.
4. Armour Layers: In armoured cables, one or more layers of steel wires or tapes
provide mechanical protection.
5. Outer Jacket: A robust polymer layer that shields the cable from chemical and
biological factors in the marine environment.
Material and Design Innovations
The design and material selection for subsea cables have evolved significantly to
address both performance and environmental challenges. Several key innovations
include:
• Improved Insulating Materials: Modern insulating materials are not only highly
thermally conductive but also chemically inert, thereby prolonging the cable’s
operating life by minimizing degradation in saltwater environments.
• Enhanced Armour Design: Research into flexible yet robust armour materials
has resulted in cables that maintain protection without compromising the ease of
laying the cables in deep waters.
• Robust Outer Jackets: Advances in polymer science have led to the
development of outer jackets that provide improved resistance to corrosion,
micro-bio fouling, and physical abrasions.
Table 1 provides a summary of typical components found in subsea cables for offshore
wind applications:
Component Material/Description Function
Conductor Copper or Aluminum Carries the electrical
current
Insulation Cross-linked Provides electrical
polyethylene (XLPE) insulation
or others
Screening Layers Metallic screens Mitigates
(copper or aluminum electromagnetic
alloys) interference
Armour Layers Steel wires/tapes or Provides mechanical
advanced composites strength and
, Component Material/Description Function
protection
Outer Jacket High-durability Protects from
polymer (polyethylene, environmental
polyurethane) degradation
Installation and Maintenance
Installing subsea cables entails careful pre-design surveys, meticulous planning of cable
routes, and precise underwater laying techniques using specialized vessels. Key steps
include:
• Marine Surveys: Detailed bathymetric and geotechnical analyses to determine
optimal cable routes that minimize risks.
• Cable Laying Vessels: Advanced ships equipped with dynamic positioning
systems ensure that cables are laid accurately along predetermined paths.
• Burying and Protection Solutions: In areas with potential mechanical stress
from external forces, cables may be buried under the seabed or protected by
additional weight coatings.
• Regular Monitoring and Maintenance: Once installed, subsea cables are
subject to routine inspections using remotely operated vehicles (ROVs) and other
monitoring systems to detect early signs of wear or damage.
Emerging technologies, such as real-time monitoring sensors embedded in cables, can
predict failure points and reduce downtimes by enabling proactive maintenance
strategies.
High Voltage Direct Current (HVDC) Systems
High Voltage Direct Current (HVDC) transmission systems have emerged as the
optimal solution for long-distance transmission from offshore wind farms. HVDC
systems offer several advantages over traditional alternating current (AC) systems,
including lower line losses and precise control of power flows. In this section, we
explore the principles, technologies, and benefits of HVDC transmission in the offshore
context.
Principles of HVDC Transmission
At its core, HVDC involves the conversion of alternating current (AC) to direct current
(DC) for transmission purposes. The basic process involves two major stages:
1. Conversion (AC to DC): At the offshore converter station, the generated AC
power from wind turbines is transformed into DC power. This stage employs
converter technologies such as Voltage Source Converters (VSC) or Line
Commutated Converters (LCC), each with distinct advantages.
