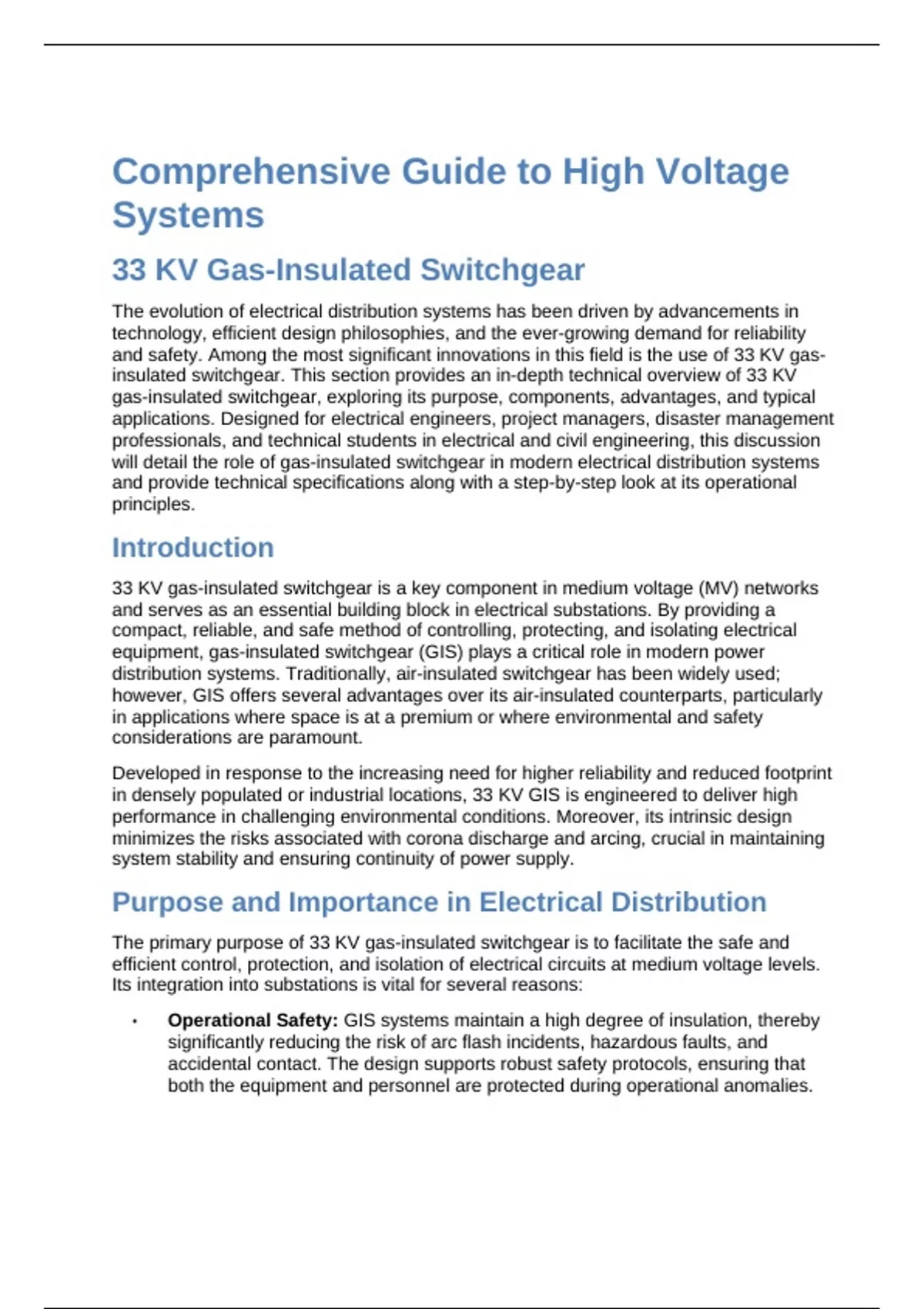

Comprehensive Guide to High Voltage
Systems
33 KV Gas-Insulated Switchgear
The evolution of electrical distribution systems has been driven by advancements in
technology, efficient design philosophies, and the ever-growing demand for reliability
and safety. Among the most significant innovations in this field is the use of 33 KV gas-
insulated switchgear. This section provides an in-depth technical overview of 33 KV
gas-insulated switchgear, exploring its purpose, components, advantages, and typical
applications. Designed for electrical engineers, project managers, disaster management
professionals, and technical students in electrical and civil engineering, this discussion
will detail the role of gas-insulated switchgear in modern electrical distribution systems
and provide technical specifications along with a step-by-step look at its operational
principles.
Introduction
33 KV gas-insulated switchgear is a key component in medium voltage (MV) networks
and serves as an essential building block in electrical substations. By providing a
compact, reliable, and safe method of controlling, protecting, and isolating electrical
equipment, gas-insulated switchgear (GIS) plays a critical role in modern power
distribution systems. Traditionally, air-insulated switchgear has been widely used;
however, GIS offers several advantages over its air-insulated counterparts, particularly
in applications where space is at a premium or where environmental and safety
considerations are paramount.
Developed in response to the increasing need for higher reliability and reduced footprint
in densely populated or industrial locations, 33 KV GIS is engineered to deliver high
performance in challenging environmental conditions. Moreover, its intrinsic design
minimizes the risks associated with corona discharge and arcing, crucial in maintaining
system stability and ensuring continuity of power supply.
Purpose and Importance in Electrical Distribution
The primary purpose of 33 KV gas-insulated switchgear is to facilitate the safe and
efficient control, protection, and isolation of electrical circuits at medium voltage levels.
Its integration into substations is vital for several reasons:
• Operational Safety: GIS systems maintain a high degree of insulation, thereby
significantly reducing the risk of arc flash incidents, hazardous faults, and
accidental contact. The design supports robust safety protocols, ensuring that
both the equipment and personnel are protected during operational anomalies.
, • Space Efficiency: In urban or densely populated industrial areas where space is
limited, GIS provides a compact alternative to traditional air-insulated switchgear
(AIS). This reduction in footprint is achieved by using gas as an insulating
medium, which allows for tighter component spacing while maintaining or
enhancing electrical insulation properties.
• Reliability and Maintenance: Gas-insulated switchgear typically exhibits a
longer service life with less maintenance compared to its air-insulated
counterparts. It comes with a high level of automation and diagnostic capabilities
that facilitate preventive maintenance schedules and fault prediction
mechanisms.
• Environmental Resilience: Due to its sealed design, GIS is less influenced by
weather conditions, dust, humidity, or corrosive environments. This reliability is
crucial in regions where frequent weather extremes or pollution could otherwise
compromise the performance and safety of electrical equipment.
Technical Components and Their Functionality
Understanding the key components of 33 KV gas-insulated switchgear is fundamental
to appreciating its design and operation. The switchgear is comprised of several
integrated components that work in tandem to control and protect electrical circuits. This
section outlines the primary elements along with their operational significance.
1. Insulated Enclosure
At the heart of the 33 KV GIS system is a robust, airtight enclosure that houses all
critical components. Constructed from high-strength materials such as aluminum alloys
or stainless steel, the enclosure is designed to:
• Support structural integrity under high mechanical stresses.
• Withstand external environmental factors such as temperature fluctuations,
corrosive atmospheres, and mechanical impacts.
• Provide a sealed environment where SF₆ (sulfur hexafluoride) gas, the primary
insulating medium, can be maintained at optimal pressure levels for insulation
and arc quenching.
2. SF₆ Gas Insulation
SF₆ is the primary insulating gas used in 33 KV GIS and exhibits excellent dielectric
properties. Key attributes include:
• Superior Dielectric Strength: SF₆ has a high dielectric strength relative to its
density, making it extremely effective in preventing electrical breakdowns.
• Arc Quenching Ability: The gas quickly quenches electrical arcs by interrupting
the ionized path during switching events, ensuring minimal damage and system
interruption.
• Chemical Stability: Despite its effectiveness, SF₆ is highly inert under normal
conditions, reducing the risk of undesired chemical reactions within the
, enclosure. However, considerations must be made regarding its environmental
impact and appropriate handling protocols at the end of its service life.
3. Circuit Breakers
Circuit breakers within a GIS are crucial for disconnecting electrical circuits during fault
conditions or routine maintenance. In the case of 33 KV switchgear, these breakers are
designed with several key features:
• Operating Mechanism: Many units employ spring-release mechanisms that
quickly open to interrupt fault currents. They are typically actuated either
pneumatically or electrically and employ mechanical interlocks.
• Arc Extinguishing Chamber: Integrated with SF₆ gas insulation, the design
ensures that any arcs formed during the separation of contacts are swiftly
extinguished, thereby preventing propagation of flashovers.
• Current Interruption Capability: The breakers are rated for high fault current
interruption values, making them resilient to transient disturbances and ensuring
rapid recovery from fault conditions.
4. Disconnectors and Isolators
Disconnectors, also known as isolators, provide the means to physically separate a
component or circuit for maintenance or emergency intervention. Their role is essential
to ensuring the safety of personnel during servicing:
• Visible Isolation: In the GIS design, disconnectors often provide visible gaps
that assure complete electrical isolation once the switchgear is de-energized.
• Mechanical Design: These components are meticulously engineered to
guarantee a high level of mechanical reliability, even when subjected to repeated
operations over extended time periods.
5. Instrument Transformers
Instrument transformers, including current transformers (CTs) and voltage transformers
(VTs), are integral to all modern electrical switchgear systems. In 33 KV GIS, these
devices serve to:
• Measure Electrical Parameters: They facilitate the precise measurement of
current and voltage, which subsequently feeds into the central control systems
for monitoring and control.
• System Protection: The transformers enable accurate fault detection by
producing scaled-down replicas of current and voltage signals. These signals are
then analyzed to predict and diagnose potential issues.
6. Monitoring and Control Systems
Modern GIS incorporates sophisticated monitoring and control systems that enhance
operational efficiency and safety:
, • Digital Sensors: Advanced sensors measure parameters such as gas pressure,
temperature, humidity, and partial discharge levels, which signal the health of the
switchgear.
• Remote Monitoring: Many systems are equipped with capabilities for remote
control and diagnostics, enabling centralized management of a complex
distribution network.
• Communication Protocols: Standardized communication protocols (IEC 61850,
DNP3, etc.) ensure integration with modern substation automation systems,
allowing seamless data exchange and coordination among multiple pieces of
equipment.
Detailed Design Principles
The design of 33 KV gas-insulated switchgear is guided by rigorous engineering
principles intended to maximize safety, reliability, and operational efficiency. The
following subsections provide a detailed insight into the design fundamentals.
Design Considerations
When engineering a 33 KV GIS, several critical factors must be taken into account:
• Electrical Insulation and Safety Margins:
– The switchgear components must exhibit high dielectric strength to
prevent electrical breakdowns.
– A comprehensive design approach ensures that safety margins are
maintained by considering potential fault conditions and dynamic load
scenarios.
• Mechanical Integrity:
– The physical design ensures that the enclosures and internal mechanisms
can withstand mechanical stresses, vibrations, and seismic events.
– The integration of shock-absorbing materials and design reinforcements
minimizes the risk of mechanical failure.
• Thermal Management:
– Heat dissipation is an important factor since high voltage operations
generate significant thermal energy.
– The design incorporates thermal management systems such as heat sinks
and temperature sensors to monitor and control internal temperatures.
• Modularity and Scalability:
– GIS systems are designed for ease of expansion and modular
replacement of components.
– The use of standardized modules and interfaces facilitates interoperability
and enables quick upgrades as technological improvements emerge.
• Environmental and Sustainability Considerations:

Systems
33 KV Gas-Insulated Switchgear
The evolution of electrical distribution systems has been driven by advancements in
technology, efficient design philosophies, and the ever-growing demand for reliability
and safety. Among the most significant innovations in this field is the use of 33 KV gas-
insulated switchgear. This section provides an in-depth technical overview of 33 KV
gas-insulated switchgear, exploring its purpose, components, advantages, and typical
applications. Designed for electrical engineers, project managers, disaster management
professionals, and technical students in electrical and civil engineering, this discussion
will detail the role of gas-insulated switchgear in modern electrical distribution systems
and provide technical specifications along with a step-by-step look at its operational
principles.
Introduction
33 KV gas-insulated switchgear is a key component in medium voltage (MV) networks
and serves as an essential building block in electrical substations. By providing a
compact, reliable, and safe method of controlling, protecting, and isolating electrical
equipment, gas-insulated switchgear (GIS) plays a critical role in modern power
distribution systems. Traditionally, air-insulated switchgear has been widely used;
however, GIS offers several advantages over its air-insulated counterparts, particularly
in applications where space is at a premium or where environmental and safety
considerations are paramount.
Developed in response to the increasing need for higher reliability and reduced footprint
in densely populated or industrial locations, 33 KV GIS is engineered to deliver high
performance in challenging environmental conditions. Moreover, its intrinsic design
minimizes the risks associated with corona discharge and arcing, crucial in maintaining
system stability and ensuring continuity of power supply.
Purpose and Importance in Electrical Distribution
The primary purpose of 33 KV gas-insulated switchgear is to facilitate the safe and
efficient control, protection, and isolation of electrical circuits at medium voltage levels.
Its integration into substations is vital for several reasons:
• Operational Safety: GIS systems maintain a high degree of insulation, thereby
significantly reducing the risk of arc flash incidents, hazardous faults, and
accidental contact. The design supports robust safety protocols, ensuring that
both the equipment and personnel are protected during operational anomalies.
, • Space Efficiency: In urban or densely populated industrial areas where space is
limited, GIS provides a compact alternative to traditional air-insulated switchgear
(AIS). This reduction in footprint is achieved by using gas as an insulating
medium, which allows for tighter component spacing while maintaining or
enhancing electrical insulation properties.
• Reliability and Maintenance: Gas-insulated switchgear typically exhibits a
longer service life with less maintenance compared to its air-insulated
counterparts. It comes with a high level of automation and diagnostic capabilities
that facilitate preventive maintenance schedules and fault prediction
mechanisms.
• Environmental Resilience: Due to its sealed design, GIS is less influenced by
weather conditions, dust, humidity, or corrosive environments. This reliability is
crucial in regions where frequent weather extremes or pollution could otherwise
compromise the performance and safety of electrical equipment.
Technical Components and Their Functionality
Understanding the key components of 33 KV gas-insulated switchgear is fundamental
to appreciating its design and operation. The switchgear is comprised of several
integrated components that work in tandem to control and protect electrical circuits. This
section outlines the primary elements along with their operational significance.
1. Insulated Enclosure
At the heart of the 33 KV GIS system is a robust, airtight enclosure that houses all
critical components. Constructed from high-strength materials such as aluminum alloys
or stainless steel, the enclosure is designed to:
• Support structural integrity under high mechanical stresses.
• Withstand external environmental factors such as temperature fluctuations,
corrosive atmospheres, and mechanical impacts.
• Provide a sealed environment where SF₆ (sulfur hexafluoride) gas, the primary
insulating medium, can be maintained at optimal pressure levels for insulation
and arc quenching.
2. SF₆ Gas Insulation
SF₆ is the primary insulating gas used in 33 KV GIS and exhibits excellent dielectric
properties. Key attributes include:
• Superior Dielectric Strength: SF₆ has a high dielectric strength relative to its
density, making it extremely effective in preventing electrical breakdowns.
• Arc Quenching Ability: The gas quickly quenches electrical arcs by interrupting
the ionized path during switching events, ensuring minimal damage and system
interruption.
• Chemical Stability: Despite its effectiveness, SF₆ is highly inert under normal
conditions, reducing the risk of undesired chemical reactions within the
, enclosure. However, considerations must be made regarding its environmental
impact and appropriate handling protocols at the end of its service life.
3. Circuit Breakers
Circuit breakers within a GIS are crucial for disconnecting electrical circuits during fault
conditions or routine maintenance. In the case of 33 KV switchgear, these breakers are
designed with several key features:
• Operating Mechanism: Many units employ spring-release mechanisms that
quickly open to interrupt fault currents. They are typically actuated either
pneumatically or electrically and employ mechanical interlocks.
• Arc Extinguishing Chamber: Integrated with SF₆ gas insulation, the design
ensures that any arcs formed during the separation of contacts are swiftly
extinguished, thereby preventing propagation of flashovers.
• Current Interruption Capability: The breakers are rated for high fault current
interruption values, making them resilient to transient disturbances and ensuring
rapid recovery from fault conditions.
4. Disconnectors and Isolators
Disconnectors, also known as isolators, provide the means to physically separate a
component or circuit for maintenance or emergency intervention. Their role is essential
to ensuring the safety of personnel during servicing:
• Visible Isolation: In the GIS design, disconnectors often provide visible gaps
that assure complete electrical isolation once the switchgear is de-energized.
• Mechanical Design: These components are meticulously engineered to
guarantee a high level of mechanical reliability, even when subjected to repeated
operations over extended time periods.
5. Instrument Transformers
Instrument transformers, including current transformers (CTs) and voltage transformers
(VTs), are integral to all modern electrical switchgear systems. In 33 KV GIS, these
devices serve to:
• Measure Electrical Parameters: They facilitate the precise measurement of
current and voltage, which subsequently feeds into the central control systems
for monitoring and control.
• System Protection: The transformers enable accurate fault detection by
producing scaled-down replicas of current and voltage signals. These signals are
then analyzed to predict and diagnose potential issues.
6. Monitoring and Control Systems
Modern GIS incorporates sophisticated monitoring and control systems that enhance
operational efficiency and safety:
, • Digital Sensors: Advanced sensors measure parameters such as gas pressure,
temperature, humidity, and partial discharge levels, which signal the health of the
switchgear.
• Remote Monitoring: Many systems are equipped with capabilities for remote
control and diagnostics, enabling centralized management of a complex
distribution network.
• Communication Protocols: Standardized communication protocols (IEC 61850,
DNP3, etc.) ensure integration with modern substation automation systems,
allowing seamless data exchange and coordination among multiple pieces of
equipment.
Detailed Design Principles
The design of 33 KV gas-insulated switchgear is guided by rigorous engineering
principles intended to maximize safety, reliability, and operational efficiency. The
following subsections provide a detailed insight into the design fundamentals.
Design Considerations
When engineering a 33 KV GIS, several critical factors must be taken into account:
• Electrical Insulation and Safety Margins:
– The switchgear components must exhibit high dielectric strength to
prevent electrical breakdowns.
– A comprehensive design approach ensures that safety margins are
maintained by considering potential fault conditions and dynamic load
scenarios.
• Mechanical Integrity:
– The physical design ensures that the enclosures and internal mechanisms
can withstand mechanical stresses, vibrations, and seismic events.
– The integration of shock-absorbing materials and design reinforcements
minimizes the risk of mechanical failure.
• Thermal Management:
– Heat dissipation is an important factor since high voltage operations
generate significant thermal energy.
– The design incorporates thermal management systems such as heat sinks
and temperature sensors to monitor and control internal temperatures.
• Modularity and Scalability:
– GIS systems are designed for ease of expansion and modular
replacement of components.
– The use of standardized modules and interfaces facilitates interoperability
and enables quick upgrades as technological improvements emerge.
• Environmental and Sustainability Considerations:
