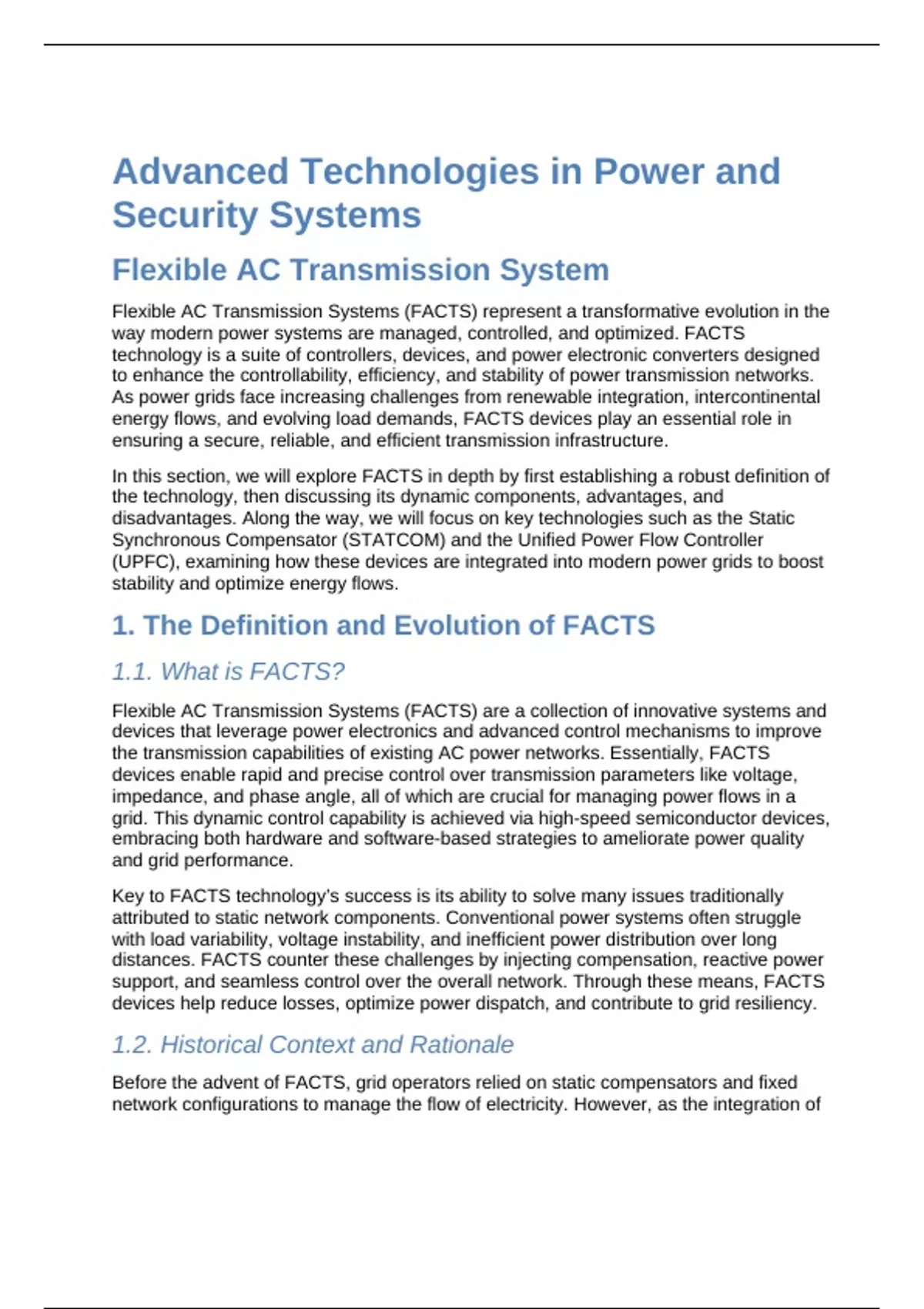

Advanced Technologies in Power and
Security Systems
Flexible AC Transmission System
Flexible AC Transmission Systems (FACTS) represent a transformative evolution in the
way modern power systems are managed, controlled, and optimized. FACTS
technology is a suite of controllers, devices, and power electronic converters designed
to enhance the controllability, efficiency, and stability of power transmission networks.
As power grids face increasing challenges from renewable integration, intercontinental
energy flows, and evolving load demands, FACTS devices play an essential role in
ensuring a secure, reliable, and efficient transmission infrastructure.
In this section, we will explore FACTS in depth by first establishing a robust definition of
the technology, then discussing its dynamic components, advantages, and
disadvantages. Along the way, we will focus on key technologies such as the Static
Synchronous Compensator (STATCOM) and the Unified Power Flow Controller
(UPFC), examining how these devices are integrated into modern power grids to boost
stability and optimize energy flows.
1. The Definition and Evolution of FACTS
1.1. What is FACTS?
Flexible AC Transmission Systems (FACTS) are a collection of innovative systems and
devices that leverage power electronics and advanced control mechanisms to improve
the transmission capabilities of existing AC power networks. Essentially, FACTS
devices enable rapid and precise control over transmission parameters like voltage,
impedance, and phase angle, all of which are crucial for managing power flows in a
grid. This dynamic control capability is achieved via high-speed semiconductor devices,
embracing both hardware and software-based strategies to ameliorate power quality
and grid performance.
Key to FACTS technology’s success is its ability to solve many issues traditionally
attributed to static network components. Conventional power systems often struggle
with load variability, voltage instability, and inefficient power distribution over long
distances. FACTS counter these challenges by injecting compensation, reactive power
support, and seamless control over the overall network. Through these means, FACTS
devices help reduce losses, optimize power dispatch, and contribute to grid resiliency.
1.2. Historical Context and Rationale
Before the advent of FACTS, grid operators relied on static compensators and fixed
network configurations to manage the flow of electricity. However, as the integration of
,renewable energy sources, unpredictable load patterns, and the demands of an
interconnected economy increased, the limitations of these conventional methods
became increasingly evident. FACTS technology emerged in the 1980s as a powerful
solution to this growing complexity. Development in power electronics and digital control
systems spurred significant innovations, offering utilities more agile and versatile means
of controlling power flow. Over the ensuing decades, FACTS devices have matured and
seen widespread deployment in grids across the globe.
Historically, grid reliability and efficiency have always been paramount. With the
proliferation of distributed generation technologies and the increased need for long-
distance, high-voltage transmissions, control over power flow became not just beneficial
but essential. FACTS systems address these needs by providing variable control
parameters within the AC network using high-speed semiconductor switching
mechanisms—thus allowing for real-time optimization that was once unachievable with
traditional mechanical and static devices.
2. Core Components and Operating Principles
To fully appreciate the capabilities of FACTS technology, it is essential to understand its
core components and how they interact within the broader transmission system. FACTS
devices gather speed from advances in power electronics, resulting in devices that can
quickly and accurately regulate the power system.
2.1. Power Electronic Converters
At the heart of FACTS devices lie power electronic converters. These converters are
responsible for converting AC to DC and vice versa, interfacing seamlessly with the
grid. They perform critical tasks such as:
• AC/DC Conversion: Useful for enabling devices to inject or absorb power as
necessary.
• Reactive Power Compensation: Quickly adjusts reactive power levels to
stabilize voltage fluctuations.
• Harmonic Filtering: Minimizes distortions in waveform quality caused by rapid
switching operations.
• Frequency Regulation: Responds to transient frequency disturbances by
manipulating the supply/demand balance.
Due to the fast switching nature of power electronic components, they can rapidly react
to changes in the grid, thus maintaining voltage levels and compensating for sudden
changes in load or generation.
2.2. Control Systems and Communication Interfaces
Alongside converters, FACTS devices integrate modern control systems that rely on
sophisticated algorithms and real-time data acquisition. These control systems use
parameters such as voltage, current, and frequency measurements to dynamically
,adjust system behavior. The interplay between control algorithms and power electronics
is crucial for ensuring rapid response times and stable performance within the network.
• Real-Time Control Algorithms: Devices use model predictive control (MPC)
and robust control theories to optimize system responses.
• Remote Operation and Monitoring: Communication interfaces allow grid
operators remote supervision and control, often integrating with SCADA
(Supervisory Control and Data Acquisition) systems.
• Feedback Mechanisms: Sensors provide immediate feedback to the control
system, which then processes the data to deploy corrective measures
instantaneously.
2.3. Common FACTS Devices: STATCOM and UPFC
While numerous FACTS devices have been developed over the years, two of the most
notable types in current deployment are the Static Synchronous Compensator
(STATCOM) and the Unified Power Flow Controller (UPFC). Their functionalities
highlight different aspects of grid control:
• STATCOM: Primarily employed for reactive power compensation, STATCOM
devices can quickly inject or absorb reactive power, thereby maintaining voltage
stability in the grid. Their design is simpler than that of UPFC and is often
preferred for localized voltage regulation in industrial areas.
• UPFC: This is one of the most versatile FACTS devices. It combines the
functions of voltage control, reactive power compensation, and active power
management. The UPFC can controllably set the phase angle between its input
and output, thereby managing power flows both in magnitude and direction. Its
flexibility makes it a preferred choice for mitigating power flow congestion over
essential transmission corridors.
These devices are underpinned by underlying principles in power electronics that allow
them to integrate seamlessly with variable power conditions—a necessity in today’s
dynamic grid scenarios.
3. Advantages of FACTS Implementation
The integration of FACTS devices into power grids brings multiple benefits that directly
influence efficiency, stability, and network reliability.
3.1. Enhanced Voltage Stability
One of the primary goals of FACTS technology is to maintain optimal voltage levels
across the network. By deploying devices such as STATCOMs, grid operators can
swiftly adjust local reactive power levels to counteract voltage dips or surges. This
capability is vital for preventing voltage collapse conditions, which can lead to cascading
failures in large power systems.
, • Voltage Regulation: FACTS devices allow for continuous fine-tuning to achieve
voltage balance, even under fluctuating load conditions.
• Dynamic Response: The fast switching speeds of power electronic converters
mean any voltage deviation is rapidly addressed before it can escalate into a
broader issue.
3.2. Improved Power Flow Control
The proactive management of power flow is critical, particularly in scenarios involving
long-distance transmission and renewable integration. UPFC devices are frequently
deployed to steer the direction and magnitude of power flows in the network. This
dynamic power routing:
• Increases Transmission Capacity: By redistributing power flows, FACTS
systems alleviate bottlenecks in transmission corridors, effectively increasing grid
capacity without the need for physically expanding the infrastructure.
• Mitigates Congestion: In areas prone to congestion, FACTS devices allow for a
more uniform distribution of power, thus reducing the likelihood of overloading
any single line.
3.3. Reactive Power Compensation
Reactive power is essential for voltage support and network efficiency. FACTS devices
such as SVCs (Static Var Compensators) and STATCOMs offer precise control over
reactive power flow, thereby reducing transmission losses and ensuring devices operate
within their optimal voltage ranges.
• Efficiency Gains: Reduction in reactive power losses directly translates into
lower operational costs and improved overall system efficiency.
• Enhanced Reliability: Proper reactive power management minimizes technical
faults and equipment stress, contributing to a more robust grid.
3.4. Increased System Flexibility
FACTS technologies contribute to the overall flexibility and resilience of modern power
systems. The ability to rapidly adapt to changes in demand or supply is fundamental,
especially given the rising penetration of intermittent renewable energy sources like
wind and solar. FACTS devices allow:
• Dynamic Grid Adaptation: The real-time response capabilities allow the grid to
immediately accommodate unexpected changes in load or generation.
• Contingency Management: In fault conditions or island mode operations,
FACTS devices help maintain stability by controlling power flows and mitigating
the impacts of localized disturbances.
