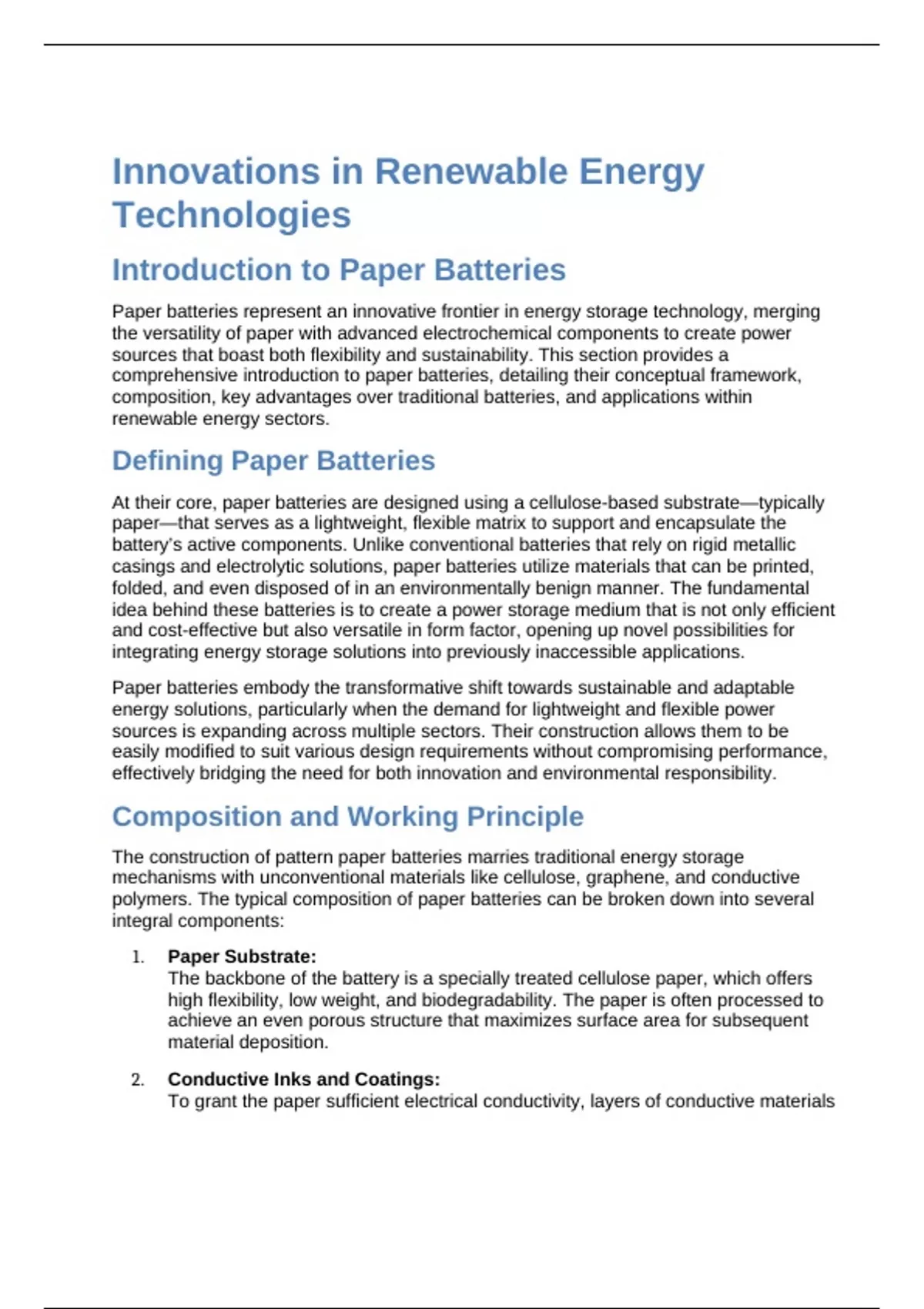

Innovations in Renewable Energy
Technologies
Introduction to Paper Batteries
Paper batteries represent an innovative frontier in energy storage technology, merging
the versatility of paper with advanced electrochemical components to create power
sources that boast both flexibility and sustainability. This section provides a
comprehensive introduction to paper batteries, detailing their conceptual framework,
composition, key advantages over traditional batteries, and applications within
renewable energy sectors.
Defining Paper Batteries
At their core, paper batteries are designed using a cellulose-based substrate—typically
paper—that serves as a lightweight, flexible matrix to support and encapsulate the
battery’s active components. Unlike conventional batteries that rely on rigid metallic
casings and electrolytic solutions, paper batteries utilize materials that can be printed,
folded, and even disposed of in an environmentally benign manner. The fundamental
idea behind these batteries is to create a power storage medium that is not only efficient
and cost-effective but also versatile in form factor, opening up novel possibilities for
integrating energy storage solutions into previously inaccessible applications.
Paper batteries embody the transformative shift towards sustainable and adaptable
energy solutions, particularly when the demand for lightweight and flexible power
sources is expanding across multiple sectors. Their construction allows them to be
easily modified to suit various design requirements without compromising performance,
effectively bridging the need for both innovation and environmental responsibility.
Composition and Working Principle
The construction of pattern paper batteries marries traditional energy storage
mechanisms with unconventional materials like cellulose, graphene, and conductive
polymers. The typical composition of paper batteries can be broken down into several
integral components:
1. Paper Substrate:
The backbone of the battery is a specially treated cellulose paper, which offers
high flexibility, low weight, and biodegradability. The paper is often processed to
achieve an even porous structure that maximizes surface area for subsequent
material deposition.
2. Conductive Inks and Coatings:
To grant the paper sufficient electrical conductivity, layers of conductive materials
, —such as graphene, carbon nanotubes, or metal nanoparticles—are applied
using printing processes. These conductive inks are crucial for forming the
electrodes and interconnections within the battery.
3. Electrode Materials:
The anode and cathode layers are typically created by depositing active
materials on the paper substrate. Such materials may include lithium
compounds, metallic oxides, or other advanced chemistries that enable efficient
ion transport and electron flow during battery operation. The electrode layers not
only store charge but also ensure the correct electrochemical reactions occur
during charging and discharging cycles.
4. Electrolyte:
In many paper battery designs, a gel or solid-state electrolyte is integrated within
the cellulose matrix to facilitate ionic conduction between the electrodes. This
component is critical for the energy conversion process, ensuring that ions can
move swiftly while maintaining the battery’s overall stability. The choice of
electrolyte—whether aqueous or non-aqueous, gel-based or solid-state—directly
affects the battery’s performance, longevity, and safety.
5. Binders and Additives:
To enhance mechanical integrity and ensure long-term stability, binders are often
used in the electrode formulation. These additives help maintain the adhesion of
active materials to the conductive paper substrate whilst also contributing to the
selective permeability required for efficient ionic transport.
The working principle of paper batteries follows the classical charge-discharge
mechanism observed in conventional batteries. During the charging phase, external
electrical energy is supplied, driving ions from one electrode (usually the cathode)
through the electrolyte to the other electrode (anode), where they are stored. When the
battery is discharged, this ion flow is reversed, and the stored chemical energy is
converted back into electrical energy. The integration of the flexible paper substrate
allows for the entire battery to be bent or folded without disrupting this critical ionic
movement, thereby ensuring continuous operation even under mechanical stress.
Advantages Over Conventional Battery Technologies
Paper batteries introduce several marked advantages that address many of the
shortcomings associated with traditional rigid battery systems. These benefits extend
from material sustainability and safety to manufacturing flexibility and cost-
effectiveness:
1. Lightweight and Flexible Design
One of the most profound advantages of paper batteries is their lightweight nature. The
paper substrate contributes minimally to the overall mass, making these batteries ideal
for applications where weight is a critical factor, such as in portable electronics,
wearable devices, and flexible displays. Moreover, the inherent flexibility of paper
,facilitates the integration of these energy storage devices into curved or non-flat
surfaces, broadening the range of potential applications.
2. Environmental Sustainability
Due to their cellulose-based components, paper batteries can be manufactured with a
lower environmental footprint than many conventional batteries. Cellulose is
biodegradable and renewable, and when combined with techniques that minimize the
use of toxic substances, the result is a battery that is not only efficient in performance
but also environmentally responsible. In an era where electronic waste is a mounting
concern, the biodegradable nature of paper batteries offers a promising solution by
reducing the long-term environmental impact associated with discarded battery
materials.
3. Cost Efficiency
Traditional battery manufacturing often involves energy-intensive processes and
expensive materials, such as rare-earth metals and inert substrates. In contrast, the raw
materials for paper batteries—such as cellulose, graphite derivatives, and conductive
polymer inks—are generally less expensive and more readily available. Additionally, the
possibility of adopting paper-based printing techniques for large-scale manufacturing
further contributes to lowering production costs, which can be particularly advantageous
for cost-sensitive renewable energy projects.
4. Scalable Manufacturing Techniques
The use of printing technologies in the fabrication of paper batteries enables high-
throughput and scalable production methods. Techniques such as inkjet printing, screen
printing, and roll-to-roll processing can be leveraged to produce batteries in a
continuous manner, thereby significantly reducing manufacturing time and allowing for
rapid prototyping. These methods are compatible with existing industrial printing
systems, which facilitates the transition from laboratory prototypes to commercial-scale
production.
5. Safety and Stability
Paper batteries can be designed with improved safety profiles compared to traditional
lithium-ion batteries. The use of gel or solid-state electrolytes can reduce the risk of
leakage and thermal runaway, a common problem in liquid-based electrolytic systems.
Furthermore, the encapsulation of reactive components within a stable cellulose matrix
can provide a physical barrier to overcharging and overheating. In applications where
durability under diverse environmental conditions is paramount, these safety
enhancements are particularly notable.
Technical Challenges and Ongoing Research
Despite their many advantages, paper batteries do present technical challenges that are
currently the focus of ongoing research. Key areas of inquiry include:
, • Enhancing Energy Density:
Balancing the lightweight nature of paper with the need to store sufficient energy
is a critical challenge. Researchers are experimenting with novel active materials
and hybrid structures that combine different chemistries to boost energy density
without significantly increasing weight.
• Optimizing Ionic Conductivity:
The performance of paper batteries is heavily dependent on the efficient
transport of ions through the electrolyte. Advances in material science—such as
the development of new gel electrolytes or nanoporous materials—aim to
maximize the ionic conductivity while maintaining the structural integrity of the
battery.
• Durability Under Mechanical Stress:
While the flexibility of paper batteries is a significant advantage, repeated
mechanical deformation, such as bending and folding, can cause microscopic
degradation over time. Innovations in binder chemistry and substrate
reinforcement are under investigation to mitigate such degradation and enhance
operational longevity.
• Integrating with Existing Energy Systems:
Seamlessly incorporating paper batteries into existing renewable energy
systems, such as solar panels or wind turbines, requires compatible interfaces
and energy management systems. This integration is crucial for ensuring that the
newly developed energy storage solutions can feed directly into power grids or
localized microgrids with minimal conversion losses.
Applications in Renewable Energy Sectors
Paper batteries are set to play a transformative role in a variety of renewable energy
applications. Their unique properties make them particularly suited for integration into
systems that require both flexibility and sustainability. Key application areas include:
1. Energy Harvesting and Storage in Portable and Wearable
Devices
One of the most promising application areas for paper batteries lies in the realm of
portable and wearable electronics. Their thin, lightweight profiles and flexible form
factors make paper batteries excellent candidates for integration into electronic textiles,
medical sensors, and fitness trackers. Devices that require a constant supply of power
but are limited by size constraints can benefit immensely from the incorporation of paper
battery technology.
Example Applications:
• Smart Clothing: Integrating flexible paper batteries into athletic wear or military
uniforms to power sensors and communication devices.

Technologies
Introduction to Paper Batteries
Paper batteries represent an innovative frontier in energy storage technology, merging
the versatility of paper with advanced electrochemical components to create power
sources that boast both flexibility and sustainability. This section provides a
comprehensive introduction to paper batteries, detailing their conceptual framework,
composition, key advantages over traditional batteries, and applications within
renewable energy sectors.
Defining Paper Batteries
At their core, paper batteries are designed using a cellulose-based substrate—typically
paper—that serves as a lightweight, flexible matrix to support and encapsulate the
battery’s active components. Unlike conventional batteries that rely on rigid metallic
casings and electrolytic solutions, paper batteries utilize materials that can be printed,
folded, and even disposed of in an environmentally benign manner. The fundamental
idea behind these batteries is to create a power storage medium that is not only efficient
and cost-effective but also versatile in form factor, opening up novel possibilities for
integrating energy storage solutions into previously inaccessible applications.
Paper batteries embody the transformative shift towards sustainable and adaptable
energy solutions, particularly when the demand for lightweight and flexible power
sources is expanding across multiple sectors. Their construction allows them to be
easily modified to suit various design requirements without compromising performance,
effectively bridging the need for both innovation and environmental responsibility.
Composition and Working Principle
The construction of pattern paper batteries marries traditional energy storage
mechanisms with unconventional materials like cellulose, graphene, and conductive
polymers. The typical composition of paper batteries can be broken down into several
integral components:
1. Paper Substrate:
The backbone of the battery is a specially treated cellulose paper, which offers
high flexibility, low weight, and biodegradability. The paper is often processed to
achieve an even porous structure that maximizes surface area for subsequent
material deposition.
2. Conductive Inks and Coatings:
To grant the paper sufficient electrical conductivity, layers of conductive materials
, —such as graphene, carbon nanotubes, or metal nanoparticles—are applied
using printing processes. These conductive inks are crucial for forming the
electrodes and interconnections within the battery.
3. Electrode Materials:
The anode and cathode layers are typically created by depositing active
materials on the paper substrate. Such materials may include lithium
compounds, metallic oxides, or other advanced chemistries that enable efficient
ion transport and electron flow during battery operation. The electrode layers not
only store charge but also ensure the correct electrochemical reactions occur
during charging and discharging cycles.
4. Electrolyte:
In many paper battery designs, a gel or solid-state electrolyte is integrated within
the cellulose matrix to facilitate ionic conduction between the electrodes. This
component is critical for the energy conversion process, ensuring that ions can
move swiftly while maintaining the battery’s overall stability. The choice of
electrolyte—whether aqueous or non-aqueous, gel-based or solid-state—directly
affects the battery’s performance, longevity, and safety.
5. Binders and Additives:
To enhance mechanical integrity and ensure long-term stability, binders are often
used in the electrode formulation. These additives help maintain the adhesion of
active materials to the conductive paper substrate whilst also contributing to the
selective permeability required for efficient ionic transport.
The working principle of paper batteries follows the classical charge-discharge
mechanism observed in conventional batteries. During the charging phase, external
electrical energy is supplied, driving ions from one electrode (usually the cathode)
through the electrolyte to the other electrode (anode), where they are stored. When the
battery is discharged, this ion flow is reversed, and the stored chemical energy is
converted back into electrical energy. The integration of the flexible paper substrate
allows for the entire battery to be bent or folded without disrupting this critical ionic
movement, thereby ensuring continuous operation even under mechanical stress.
Advantages Over Conventional Battery Technologies
Paper batteries introduce several marked advantages that address many of the
shortcomings associated with traditional rigid battery systems. These benefits extend
from material sustainability and safety to manufacturing flexibility and cost-
effectiveness:
1. Lightweight and Flexible Design
One of the most profound advantages of paper batteries is their lightweight nature. The
paper substrate contributes minimally to the overall mass, making these batteries ideal
for applications where weight is a critical factor, such as in portable electronics,
wearable devices, and flexible displays. Moreover, the inherent flexibility of paper
,facilitates the integration of these energy storage devices into curved or non-flat
surfaces, broadening the range of potential applications.
2. Environmental Sustainability
Due to their cellulose-based components, paper batteries can be manufactured with a
lower environmental footprint than many conventional batteries. Cellulose is
biodegradable and renewable, and when combined with techniques that minimize the
use of toxic substances, the result is a battery that is not only efficient in performance
but also environmentally responsible. In an era where electronic waste is a mounting
concern, the biodegradable nature of paper batteries offers a promising solution by
reducing the long-term environmental impact associated with discarded battery
materials.
3. Cost Efficiency
Traditional battery manufacturing often involves energy-intensive processes and
expensive materials, such as rare-earth metals and inert substrates. In contrast, the raw
materials for paper batteries—such as cellulose, graphite derivatives, and conductive
polymer inks—are generally less expensive and more readily available. Additionally, the
possibility of adopting paper-based printing techniques for large-scale manufacturing
further contributes to lowering production costs, which can be particularly advantageous
for cost-sensitive renewable energy projects.
4. Scalable Manufacturing Techniques
The use of printing technologies in the fabrication of paper batteries enables high-
throughput and scalable production methods. Techniques such as inkjet printing, screen
printing, and roll-to-roll processing can be leveraged to produce batteries in a
continuous manner, thereby significantly reducing manufacturing time and allowing for
rapid prototyping. These methods are compatible with existing industrial printing
systems, which facilitates the transition from laboratory prototypes to commercial-scale
production.
5. Safety and Stability
Paper batteries can be designed with improved safety profiles compared to traditional
lithium-ion batteries. The use of gel or solid-state electrolytes can reduce the risk of
leakage and thermal runaway, a common problem in liquid-based electrolytic systems.
Furthermore, the encapsulation of reactive components within a stable cellulose matrix
can provide a physical barrier to overcharging and overheating. In applications where
durability under diverse environmental conditions is paramount, these safety
enhancements are particularly notable.
Technical Challenges and Ongoing Research
Despite their many advantages, paper batteries do present technical challenges that are
currently the focus of ongoing research. Key areas of inquiry include:
, • Enhancing Energy Density:
Balancing the lightweight nature of paper with the need to store sufficient energy
is a critical challenge. Researchers are experimenting with novel active materials
and hybrid structures that combine different chemistries to boost energy density
without significantly increasing weight.
• Optimizing Ionic Conductivity:
The performance of paper batteries is heavily dependent on the efficient
transport of ions through the electrolyte. Advances in material science—such as
the development of new gel electrolytes or nanoporous materials—aim to
maximize the ionic conductivity while maintaining the structural integrity of the
battery.
• Durability Under Mechanical Stress:
While the flexibility of paper batteries is a significant advantage, repeated
mechanical deformation, such as bending and folding, can cause microscopic
degradation over time. Innovations in binder chemistry and substrate
reinforcement are under investigation to mitigate such degradation and enhance
operational longevity.
• Integrating with Existing Energy Systems:
Seamlessly incorporating paper batteries into existing renewable energy
systems, such as solar panels or wind turbines, requires compatible interfaces
and energy management systems. This integration is crucial for ensuring that the
newly developed energy storage solutions can feed directly into power grids or
localized microgrids with minimal conversion losses.
Applications in Renewable Energy Sectors
Paper batteries are set to play a transformative role in a variety of renewable energy
applications. Their unique properties make them particularly suited for integration into
systems that require both flexibility and sustainability. Key application areas include:
1. Energy Harvesting and Storage in Portable and Wearable
Devices
One of the most promising application areas for paper batteries lies in the realm of
portable and wearable electronics. Their thin, lightweight profiles and flexible form
factors make paper batteries excellent candidates for integration into electronic textiles,
medical sensors, and fitness trackers. Devices that require a constant supply of power
but are limited by size constraints can benefit immensely from the incorporation of paper
battery technology.
Example Applications:
• Smart Clothing: Integrating flexible paper batteries into athletic wear or military
uniforms to power sensors and communication devices.
