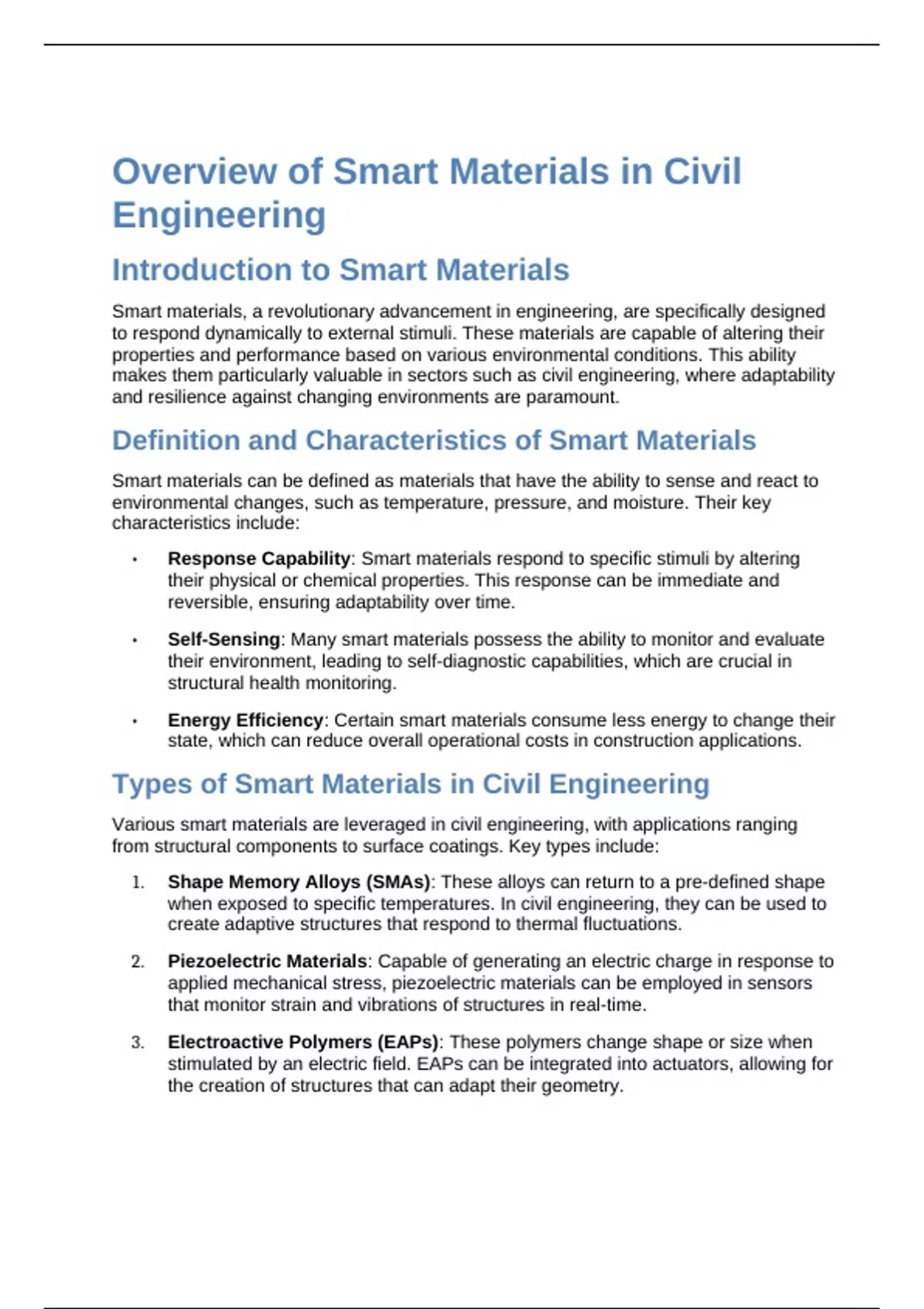

Overview of Smart Materials in Civil
Engineering
Introduction to Smart Materials
Smart materials, a revolutionary advancement in engineering, are specifically designed
to respond dynamically to external stimuli. These materials are capable of altering their
properties and performance based on various environmental conditions. This ability
makes them particularly valuable in sectors such as civil engineering, where adaptability
and resilience against changing environments are paramount.
Definition and Characteristics of Smart Materials
Smart materials can be defined as materials that have the ability to sense and react to
environmental changes, such as temperature, pressure, and moisture. Their key
characteristics include:
• Response Capability: Smart materials respond to specific stimuli by altering
their physical or chemical properties. This response can be immediate and
reversible, ensuring adaptability over time.
• Self-Sensing: Many smart materials possess the ability to monitor and evaluate
their environment, leading to self-diagnostic capabilities, which are crucial in
structural health monitoring.
• Energy Efficiency: Certain smart materials consume less energy to change their
state, which can reduce overall operational costs in construction applications.
Types of Smart Materials in Civil Engineering
Various smart materials are leveraged in civil engineering, with applications ranging
from structural components to surface coatings. Key types include:
1. Shape Memory Alloys (SMAs): These alloys can return to a pre-defined shape
when exposed to specific temperatures. In civil engineering, they can be used to
create adaptive structures that respond to thermal fluctuations.
2. Piezoelectric Materials: Capable of generating an electric charge in response to
applied mechanical stress, piezoelectric materials can be employed in sensors
that monitor strain and vibrations of structures in real-time.
3. Electroactive Polymers (EAPs): These polymers change shape or size when
stimulated by an electric field. EAPs can be integrated into actuators, allowing for
the creation of structures that can adapt their geometry.
, 4. Thermochromic and Photochromic Materials: These materials change color
or transparency when subject to temperature or light variations, which can be
utilized in smart windows and façade systems to improve energy efficiency.
5. Self-Healing Materials: With the technology to repair themselves after damage,
these materials promise significant benefits for infrastructure longevity. They can
be used in concrete, asphalt, and coatings to increase durability.
Applications of Smart Materials in Civil Engineering
The integration of smart materials into civil engineering projects has led to significant
advancements in functionality and performance. Some noteworthy applications include:
• Adaptive Structures: By incorporating smart materials like SMAs, structures can
adapt more effectively to dynamic loads, such as those experienced during
seismic events.
• Infrastructure Monitoring: The use of piezoelectric sensors embedded in
bridges and roads allows for continuous monitoring of structural integrity,
minimizing maintenance needs and improving safety.
• Energy-Efficient Buildings: The deployment of EAPs in building systems can
facilitate automatic adjustments in response to environmental conditions,
reducing energy consumption and improving occupant comfort.
• Innovative Roadway Materials: Self-healing asphalt is being explored to
minimize repair costs and extend roadway life by automatically repairing cracks
as they form.
Adaptation to Environmental Conditions
The core advantage of smart materials lies in their capacity to adapt to fluctuating
environmental conditions. This capability can enhance safety, improve durability, and
increase the overall sustainability of infrastructure. For instance, temperature-
responsive materials can adjust a structure's stiffness during extreme weather or
seismic activities, while moisture-responsive materials can adapt their properties based
on humidity levels, preventing structural degradation.
By employing these advanced materials, civil engineers can develop resilient
infrastructure systems capable of withstanding the challenges posed by climate change,
urbanization, and increased load demands.
In summary, smart materials are at the forefront of innovation in civil engineering,
offering transformative solutions that enhance performance, longevity, and adaptability
in construction and infrastructure management. As research continues to evolve, the
potential applications of these materials seem boundless, pointing towards a future of
intelligent and responsive engineering designs.
,Types of Smart Materials
In the rapidly evolving field of civil engineering, smart materials have become an
essential tool for enhancing the performance, resilience, and adaptability of
infrastructure. This section categorizes and examines key smart materials used in the
industry—specifically shape memory alloys, piezoelectric materials, and
magnetorheological fluids—and explores their mechanisms, examples, and
applications. By understanding these materials in detail, civil engineers can integrate
innovative approaches into design and construction, ensuring safer and more efficient
structures.
1. Shape Memory Alloys (SMAs)
Shape memory alloys are well-known for their remarkable ability to "remember" and
revert to a predetermined shape when subjected to specific stimuli, typically a change in
temperature. The most common SMA is the nickel-titanium alloy (Ni-Ti), often referred
to as Nitinol, which undergoes a reversible transformation between its low-temperature
martensitic phase and high-temperature austenitic phase.
Working Mechanism
The behavior of SMAs hinges on phase transformation:
• Martensitic Phase (Low Temperature): In this phase, the alloy can be
deformed easily. The atomic structure is relatively soft and flexible, allowing large
deformations.
• Austenitic Phase (High Temperature): When heated beyond a transformation
threshold, the stored deformation energy is released as the material returns to its
pre-set shape.
This unique, repeatable recovery process has made SMAs especially attractive for
applications requiring self-centering and adaptive responses.
Applications in Civil Engineering
SMAs are utilized in several innovative ways:
• Seismic Dampers and Seismic Restraint Systems: Buildings and bridges
exposed to seismic activity can benefit from SMA-based dampers that absorb
and dissipate energy during an earthquake. Their self-centering ability helps
structures return to their original shape even after significant deformation.
• Adaptive Structures: In applications such as retractable roofs or dynamic
facades, SMAs allow structures to change shape in response to environmental
temperature variations, optimizing performance and comfort.
• Retrofitting of Aging Structures: SMAs can be integrated into existing
structures to enhance their resilience. For example, SMA braces may be added
, to historical buildings to provide an extra safeguard against seismic forces
without compromising the structure's aesthetic and historical value.
Below is a table summarizing key properties of SMAs:
Property Details
Material Composition Typically Ni-Ti (Nickel-Titanium)
Phase Transformation Martensitic (deformable) and
Austenitic (shape recovery)
Activation Temperature changes
Applications Seismic dampers, adaptive
structures, retrofitting
Real-World Example
One notable project includes the integration of SMA elements in bridge retrofitting. In
regions prone to seismic activity, SMA braces have been employed to enhance the
inherent flexibility of bridge structures. These elements not only facilitate energy
dissipation during tremors but also help in realigning the structure post-event, markedly
reducing long-term maintenance costs.
2. Piezoelectric Materials
Piezoelectric materials have the extraordinary capability to convert mechanical stress
into electrical charge and vice versa. This dual nature makes them invaluable
components for both sensing structural health and actively controlling structural
dynamics.
How Piezoelectricity Works
At the atomic level, piezoelectric materials exhibit a crystalline structure that lacks a
center of symmetry. When mechanical force is applied:
• Direct Piezoelectric Effect: The asymmetrical lattice structure produces an
electrical charge proportional to the applied stress.
• Inverse Piezoelectric Effect: Conversely, applying an electrical voltage causes
the material to change its dimensions or shape.
Applications and Examples in Civil Engineering
Piezoelectric materials are particularly beneficial in the monitoring and maintenance of
civil infrastructure:
• Structural Health Monitoring (SHM): Embedding piezoelectric sensors in
concrete, bridges, and buildings enables real-time monitoring of stress, strain,
