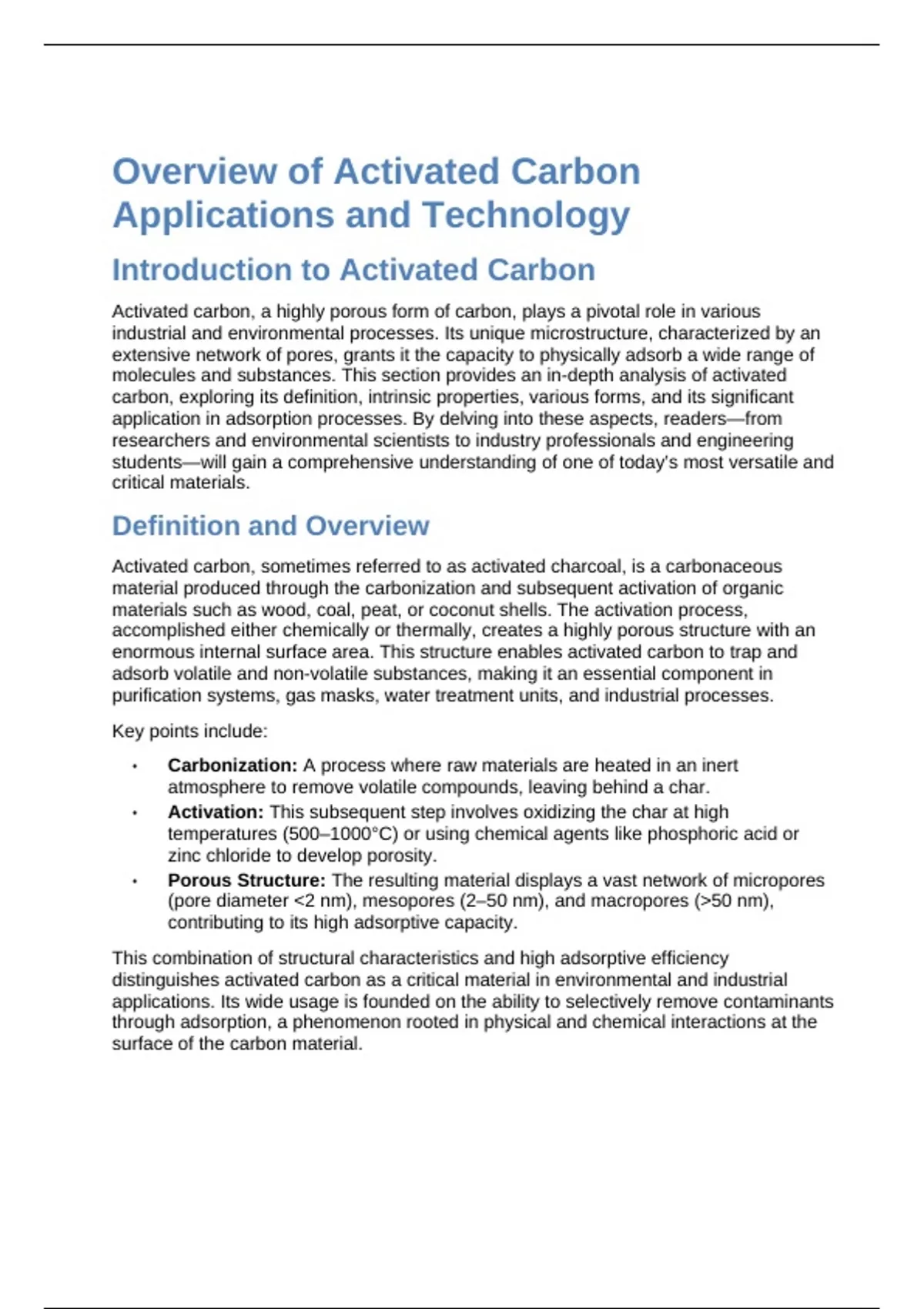

Overview of Activated Carbon
Applications and Technology
Introduction to Activated Carbon
Activated carbon, a highly porous form of carbon, plays a pivotal role in various
industrial and environmental processes. Its unique microstructure, characterized by an
extensive network of pores, grants it the capacity to physically adsorb a wide range of
molecules and substances. This section provides an in-depth analysis of activated
carbon, exploring its definition, intrinsic properties, various forms, and its significant
application in adsorption processes. By delving into these aspects, readers—from
researchers and environmental scientists to industry professionals and engineering
students—will gain a comprehensive understanding of one of today’s most versatile and
critical materials.
Definition and Overview
Activated carbon, sometimes referred to as activated charcoal, is a carbonaceous
material produced through the carbonization and subsequent activation of organic
materials such as wood, coal, peat, or coconut shells. The activation process,
accomplished either chemically or thermally, creates a highly porous structure with an
enormous internal surface area. This structure enables activated carbon to trap and
adsorb volatile and non-volatile substances, making it an essential component in
purification systems, gas masks, water treatment units, and industrial processes.
Key points include:
• Carbonization: A process where raw materials are heated in an inert
atmosphere to remove volatile compounds, leaving behind a char.
• Activation: This subsequent step involves oxidizing the char at high
temperatures (500–1000°C) or using chemical agents like phosphoric acid or
zinc chloride to develop porosity.
• Porous Structure: The resulting material displays a vast network of micropores
(pore diameter <2 nm), mesopores (2–50 nm), and macropores (>50 nm),
contributing to its high adsorptive capacity.
This combination of structural characteristics and high adsorptive efficiency
distinguishes activated carbon as a critical material in environmental and industrial
applications. Its wide usage is founded on the ability to selectively remove contaminants
through adsorption, a phenomenon rooted in physical and chemical interactions at the
surface of the carbon material.
,Properties of Activated Carbon
Activated carbon’s performance and eventual applications are deeply rooted in its
physical and chemical properties. Understanding these properties is essential to grasp
its functional behavior and effectiveness in various applications.
1. High Surface Area
One of the most remarkable properties of activated carbon is its extraordinarily high
surface area. Surface areas can exceed 2000 m²/g, which is made possible by the
presence of an extensive network of micropores and mesopores. This high surface area
facilitates:
• Enhanced Adsorption: Larger surface areas provide more active sites for the
adsorption of molecules.
• Improved Efficiency: Even minute amounts of activated carbon can capture
significant quantities of pollutants, emphasizing its efficiency in water and air
treatment setups.
2. Porosity and Pore Size Distribution
The pore structure is categorized into three primary types:
• Micropores (<2 nm): Critical for the adsorption of small molecules, such as
gases and volatile organic compounds.
• Mesopores (2–50 nm): Important for adsorbing medium-sized molecules and
can help in the distribution of molecules within the structure.
• Macropores (>50 nm): Although they contribute less to the overall adsorption
capacity, macropores serve as pathways facilitating the diffusion of particles into
the more active microporous areas.
The distribution and interconnectivity among these pore sizes significantly impact the
diffusion and retention of adsorbates.
3. Surface Chemistry
The surface of activated carbon is not inert; rather, it exhibits a variety of chemical
functional groups such as carboxyl, hydroxyl, carbonyl, and lactone groups. These sites
are instrumental in:
• Chemical Interactions: Enhancing the adsorption of polar compounds and
increasing the specificity for certain molecules.
• Catalytic Reactions: In certain applications, activated carbon can serve as a
catalyst or catalyst support, promoting reactions on its surface.
,4. Thermal and Chemical Stability
Activated carbon demonstrates robust thermal stability and can endure extreme
operational conditions:
• Thermal Stability: Suitable for high-temperature processes, though practical
applications require balancing temperature constraints against potential
oxidation.
• Chemical Resilience: Resistant to a range of chemicals, with the ability to be
regenerated and reused through thermal or chemical processes, making it cost-
effective for long-term use.
5. Mechanical Strength and Attrition Resistance
The durability of activated carbon is another critical attribute:
• Particle Integrity: It maintains structural integrity under mechanical stress, which
is essential during usage in packed columns, filters, or reactors.
• Longevity: Its resistance to attrition allows it to be used over long operational
cycles without significant shedding of fine particles.
These properties underscore its versatile functionality, enabling effective adsorption in
diverse settings ranging from municipal water treatment facilities to advanced industrial
applications.
Forms of Activated Carbon
Activated carbon is available in various forms, and the choice of form depends on the
intended application and design of the adsorption process. Below are some of the most
common forms:
1. Powdered Activated Carbon (PAC)
• Characteristics: Fine particles with a typical size distribution ranging from 10 to
100 µm.
• Applications: Widely used in water treatment facilities due to its ease of
dispersion in liquids. Often added directly to water streams to adsorb organic and
inorganic contaminants.
• Advantages: High reactivity and rapid adsorption kinetics due to its small
particle size and consequently greater available surface area per unit volume.
• Considerations: Requires post-treatment separation steps like sedimentation or
filtration to remove spent carbon from the treated water.
2. Granular Activated Carbon (GAC)
• Characteristics: Composed of larger particles than PAC, typically sized between
0.2 and 4 mm.
• Applications: Predominantly found in fixed-bed columns for water purification
and air filtration, due to its ease of packing and regeneration capabilities.
, • Advantages: Lower pressure drops in packed columns and extended
operational life through regeneration techniques.
• Considerations: Adsorption rate is slower compared to PAC; suitable primarily
for systems where contact time with contaminants is sufficiently long.
3. Extruded Activated Carbon (EAC)
• Characteristics: Produced via extrusion and then impregnated with binders to
form cylindrical or spherical pellets.
• Applications: Commonly used in gas-phase adsorption systems, such as in the
control of volatile organic compounds (VOCs) in industrial emissions.
• Advantages: Uniform shape and strength conducive to high flow rates with
minimal channeling effects.
• Considerations: Manufactured with precise control over porosity, these are
particularly useful in applications where specific pore size distributions are
needed.
4. Cloth and Fiber Forms
• Characteristics: Activated carbon can also be incorporated into fabrics and
fibrous matrices.
• Applications: Employed in personal protective equipment, such as gas masks
and respirators, as well as air purifiers.
• Advantages: Flexibility in design, allowing for the integration into wearable or
portable formats.
• Considerations: The fiber form may require additional support structures to
ensure mechanical stability during use.
Each form of activated carbon offers unique benefits and challenges, and the proper
selection can significantly influence the efficiency of the adsorption process. The design
of filters and absorption systems often considers the moisture content, surface area,
and mechanical attributes inherent to each form.
Significance in Adsorption Processes
Activated carbon’s principal function within adsorption processes is its ability to remove
unwanted compounds and impurities from various media—be it water, air, or industrial
effluents. The following sub-sections explore how activated carbon operates in
adsorption and why it is so essential in modern environmental and industrial practices.
The Adsorption Mechanism
At its core, adsorption is a surface phenomenon where molecules from a fluid phase
adhere to a solid surface. In activated carbon, this process is governed by several
interacting factors:
• Physical Adsorption (Physisorption): Primarily driven by van der Waals forces
and the large surface area available, physical adsorption allows for the reversible
