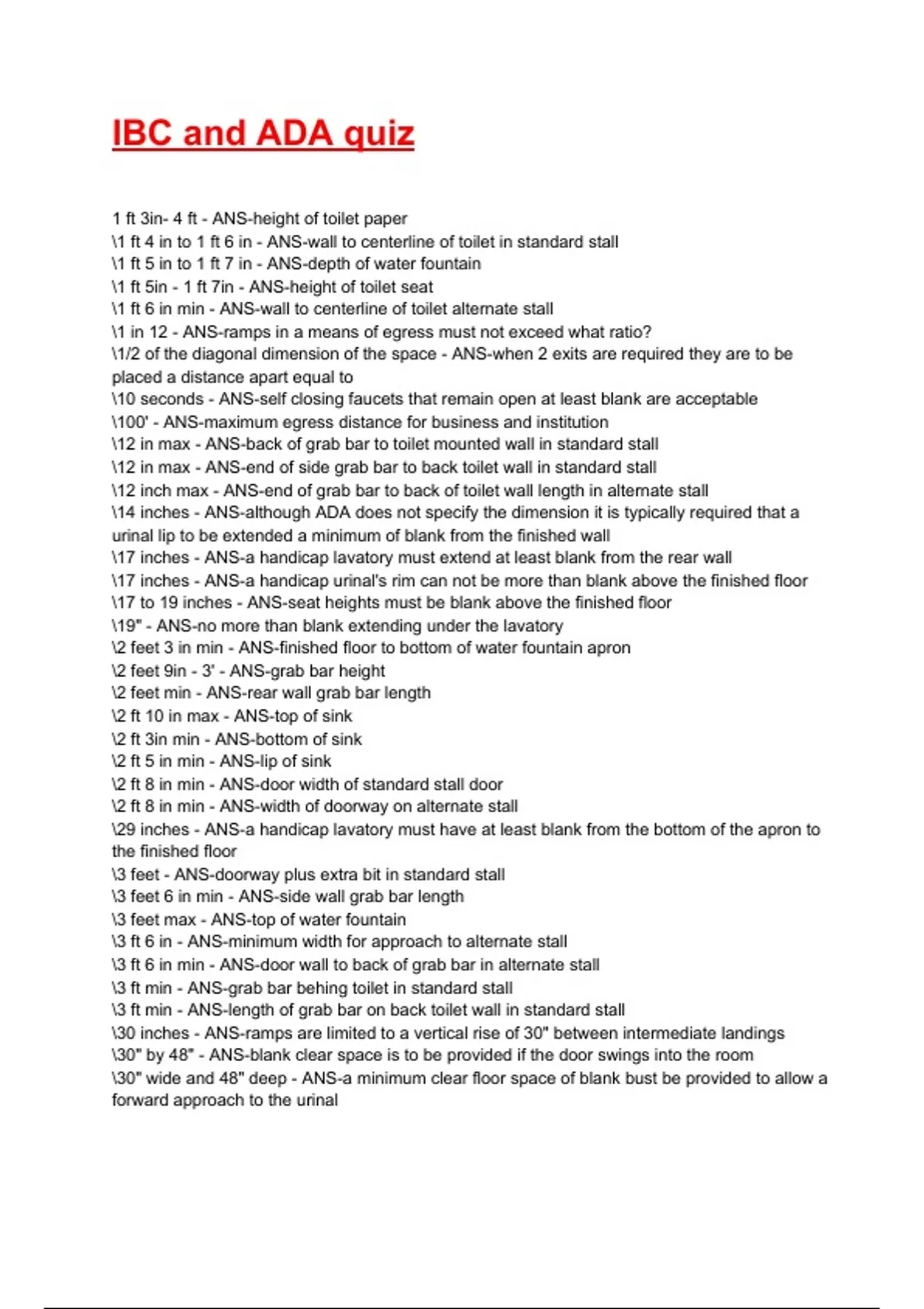

IBC and ADA quiz
1 ft 3in- 4 ft - ANS-height of toilet paper
\1 ft 4 in to 1 ft 6 in - ANS-wall to centerline of toilet in standard stall
\1 ft 5 in to 1 ft 7 in - ANS-depth of water fountain
\1 ft 5in - 1 ft 7in - ANS-height of toilet seat
\1 ft 6 in min - ANS-wall to centerline of toilet alternate stall
\1 in 12 - ANS-ramps in a means of egress must not exceed what ratio?
\1/2 of the diagonal dimension of the space - ANS-when 2 exits are required they are to be
placed a distance apart equal to
\10 seconds - ANS-self closing faucets that remain open at least blank are acceptable
\100' - ANS-maximum egress distance for business and institution
\12 in max - ANS-back of grab bar to toilet mounted wall in standard stall
\12 in max - ANS-end of side grab bar to back toilet wall in standard stall
\12 inch max - ANS-end of grab bar to back of toilet wall length in alternate stall
\14 inches - ANS-although ADA does not specify the dimension it is typically required that a
urinal lip to be extended a minimum of blank from the finished wall
\17 inches - ANS-a handicap lavatory must extend at least blank from the rear wall
\17 inches - ANS-a handicap urinal's rim can not be more than blank above the finished floor
\17 to 19 inches - ANS-seat heights must be blank above the finished floor
\19" - ANS-no more than blank extending under the lavatory
\2 feet 3 in min - ANS-finished floor to bottom of water fountain apron
\2 feet 9in - 3' - ANS-grab bar height
\2 feet min - ANS-rear wall grab bar length
\2 ft 10 in max - ANS-top of sink
\2 ft 3in min - ANS-bottom of sink
\2 ft 5 in min - ANS-lip of sink
\2 ft 8 in min - ANS-door width of standard stall door
\2 ft 8 in min - ANS-width of doorway on alternate stall
\29 inches - ANS-a handicap lavatory must have at least blank from the bottom of the apron to
the finished floor
\3 feet - ANS-doorway plus extra bit in standard stall
\3 feet 6 in min - ANS-side wall grab bar length
\3 feet max - ANS-top of water fountain
\3 ft 6 in - ANS-minimum width for approach to alternate stall
\3 ft 6 in min - ANS-door wall to back of grab bar in alternate stall
\3 ft min - ANS-grab bar behing toilet in standard stall
\3 ft min - ANS-length of grab bar on back toilet wall in standard stall
\30 inches - ANS-ramps are limited to a vertical rise of 30" between intermediate landings
\30" by 48" - ANS-blank clear space is to be provided if the door swings into the room
\30" wide and 48" deep - ANS-a minimum clear floor space of blank bust be provided to allow a
forward approach to the urinal
