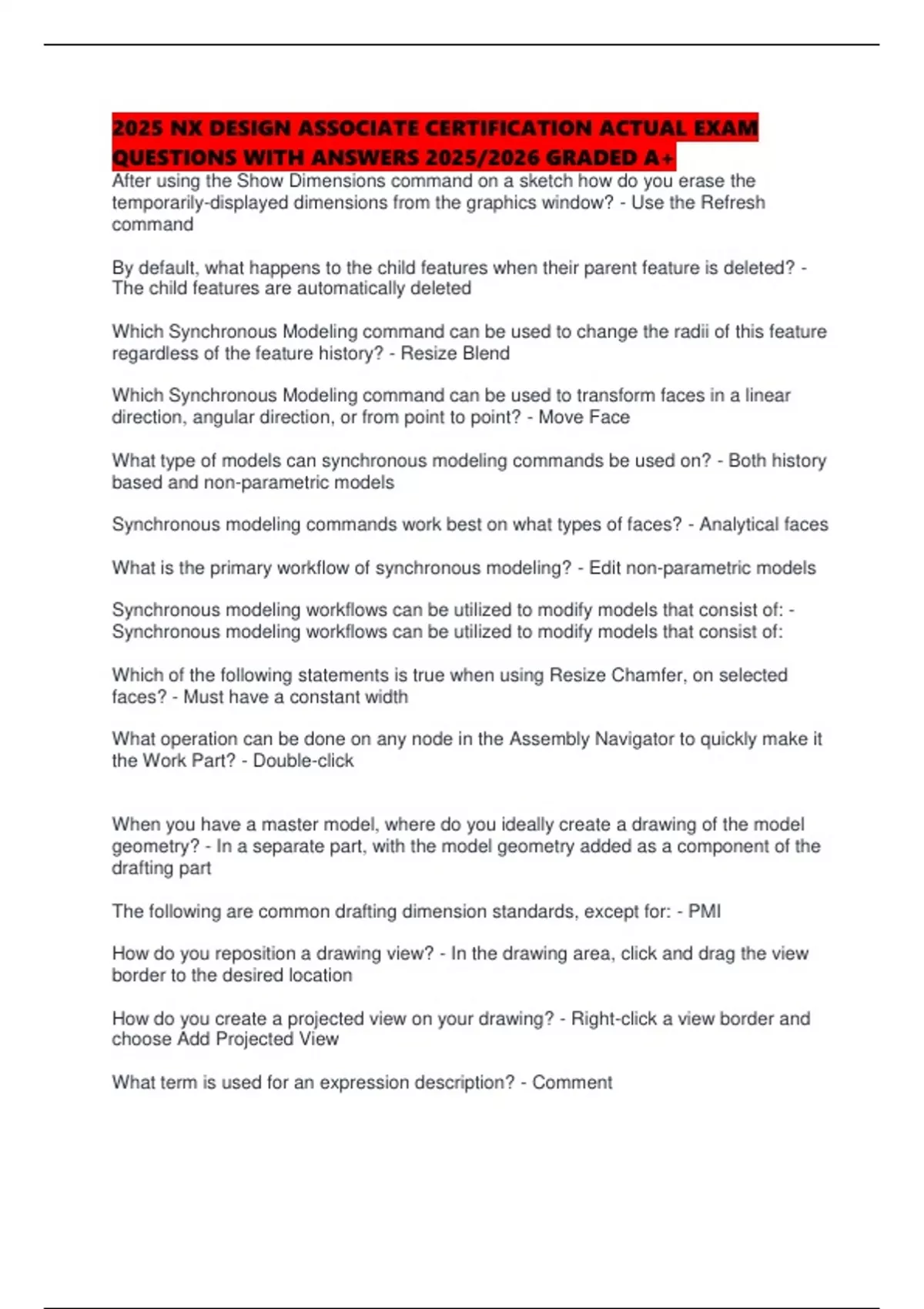

2025 NX DESIGN ASSOCIATE CERTIFICATION ACTUAL EXAM
QUESTIONS WITH ANSWERS 2025/2026 GRADED A+
After using the Show Dimensions command on a sketch how do you erase the
temporarily-displayed dimensions from the graphics window? - Use the Refresh
command
By default, what happens to the child features when their parent feature is deleted? -
The child features are automatically deleted
Which Synchronous Modeling command can be used to change the radii of this feature
regardless of the feature history? - Resize Blend
Which Synchronous Modeling command can be used to transform faces in a linear
direction, angular direction, or from point to point? - Move Face
What type of models can synchronous modeling commands be used on? - Both history
based and non-parametric models
Synchronous modeling commands work best on what types of faces? - Analytical faces
What is the primary workflow of synchronous modeling? - Edit non-parametric models
Synchronous modeling workflows can be utilized to modify models that consist of: -
Synchronous modeling workflows can be utilized to modify models that consist of:
Which of the following statements is true when using Resize Chamfer, on selected
faces? - Must have a constant width
What operation can be done on any node in the Assembly Navigator to quickly make it
the Work Part? - Double-click
When you have a master model, where do you ideally create a drawing of the model
geometry? - In a separate part, with the model geometry added as a component of the
drafting part
The following are common drafting dimension standards, except for: - PMI
How do you reposition a drawing view? - In the drawing area, click and drag the view
border to the desired location
How do you create a projected view on your drawing? - Right-click a view border and
choose Add Projected View
What term is used for an expression description? - Comment
, You have two user defined expressions: Width=12 and Length=Width*2, what happens
if you select Width in the Expressions dialog box and click the Delete key? - Width
cannot be deleted
A conditional expression is created using what kind of statement? - If-Else
When are expressions automatically created? - When features are created
What type of expressions can be deleted using the Expression dialog box? -
Expressions that are not used
if(Length==5)(150)else if(Length==4)(195)else(25) is an example of what type of
expression. - conditional
Which of the following statements about the Lock Formula option in the Expressions
dialog box are true? - Is particularly useful for protecting important expressions from
being modified
Design intent will determine which one of the following tasks. - The modeling strategy
Can design intent be incorporated after the initial model construction? - Yes, but may be
more difficult
Which one of these following operations does not automatically create expressions? -
When a part is opened
What type of expressions cannot be deleted? - System Expressions
Which one of the following statements about the Lock Formula option in the
Expressions dialog box is false? - Expressions with locked formulas when created
cannot be unlocked
The modeling strategy, the organization of the model, and the creation of expressions,
are tasks you typically do to establish what modeling concept? - Design Intent
Which one of the following statements about Design Intent is false? - Design intent
cannot be added to a model after the initial construction
What command lets you substitute bodies and datums as well as reapply dependent
features? - Replace Feature
Which of the following conditions must be in place before you can reattach a sketch to
new geometry? - The geometry must have a timestamp before the sketch
When you use Edit Parameters or Edit with Rollback, you generally access ... - the
same dialog box used to create the feature
