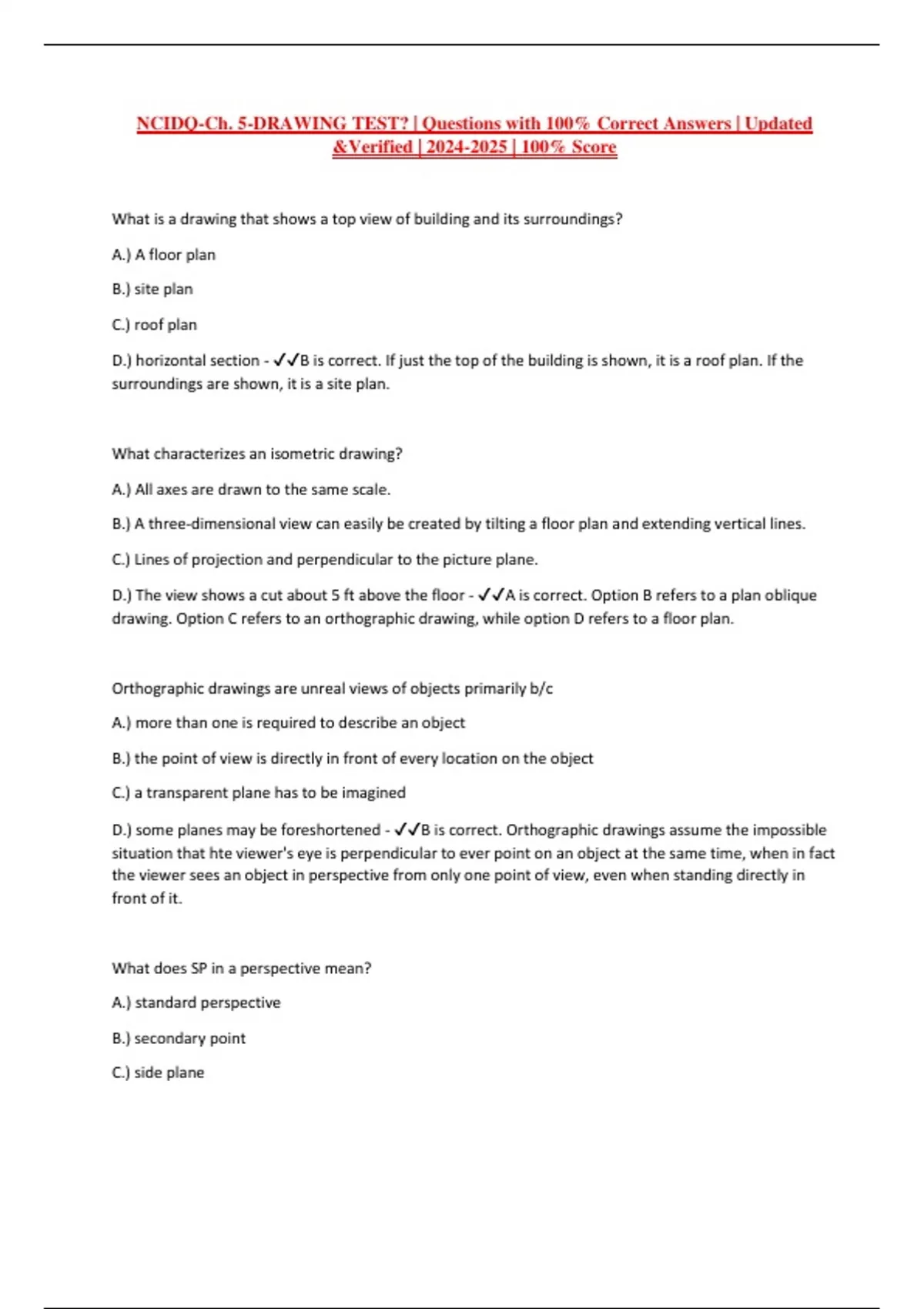

NCIDQ-Ch. 5-DRAWING TEST? | Questions with 100% Correct Answers | Updated
&Verified | 2024-2025 | 100% Score
What is a drawing that shows a top view of building and its surroundings?
A.) A floor plan
B.) site plan
C.) roof plan
D.) horizontal section - ✔✔B is correct. If just the top of the building is shown, it is a roof plan. If the
surroundings are shown, it is a site plan.
What characterizes an isometric drawing?
A.) All axes are drawn to the same scale.
B.) A three-dimensional view can easily be created by tilting a floor plan and extending vertical lines.
C.) Lines of projection and perpendicular to the picture plane.
D.) The view shows a cut about 5 ft above the floor - ✔✔A is correct. Option B refers to a plan oblique
drawing. Option C refers to an orthographic drawing, while option D refers to a floor plan.
Orthographic drawings are unreal views of objects primarily b/c
A.) more than one is required to describe an object
B.) the point of view is directly in front of every location on the object
C.) a transparent plane has to be imagined
D.) some planes may be foreshortened - ✔✔B is correct. Orthographic drawings assume the impossible
situation that hte viewer's eye is perpendicular to ever point on an object at the same time, when in fact
the viewer sees an object in perspective from only one point of view, even when standing directly in
front of it.
What does SP in a perspective mean?
A.) standard perspective
B.) secondary point
C.) side plane
