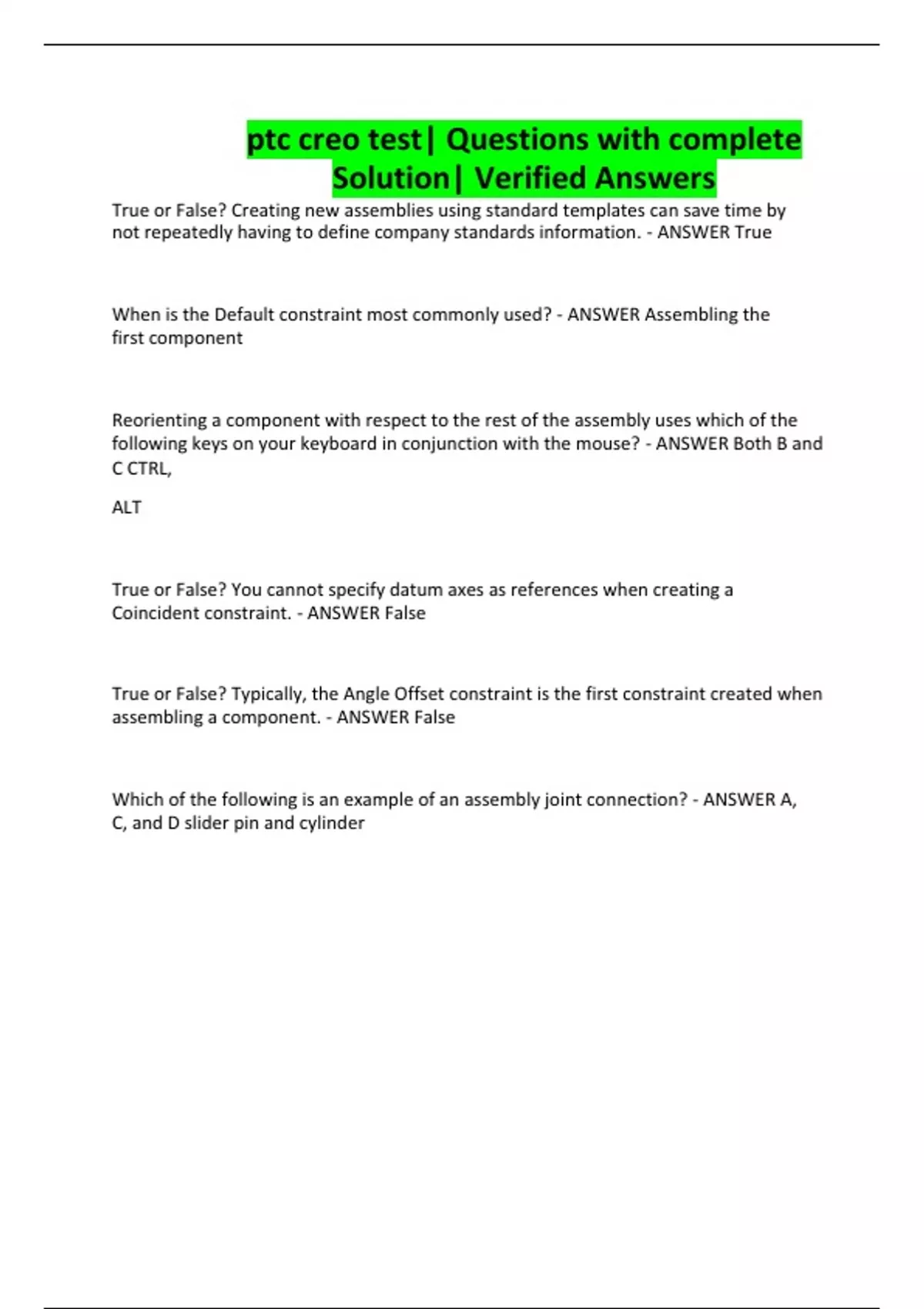

ptc creo test| Questions with complete
Solution| Verified Answers
True or False? Creating new assemblies using standard templates can save time by
not repeatedly having to define company standards information. - ANSWER True
When is the Default constraint most commonly used? - ANSWER Assembling the
first component
Reorienting a component with respect to the rest of the assembly uses which of the
following keys on your keyboard in conjunction with the mouse? - ANSWER Both B and
C CTRL,
ALT
True or False? You cannot specify datum axes as references when creating a
Coincident constraint. - ANSWER False
True or False? Typically, the Angle Offset constraint is the first constraint created when
assembling a component. - ANSWER False
Which of the following is an example of an assembly joint connection? - ANSWER A,
C, and D slider pin and cylinder
, True or False? Slider connections are used to enable rotation about a single axis. -
ANSWER false
True or False? Pin connections are used to enable rotation along a single axis. -
ANSWER True
The Cylinder connection is... - ANSWER best used in situations where you do not want
to over constrain a component.
When dragging assembly components, how are Snapshots used? - ANSWER To
return assembly components to a particular location.
True or False? Offset lines automatically update to changes in position made to
the exploded components they reference. - ANSWER True
When creating an explode state, how can you select multiple components to move?
- ANSWER B and C. Press CTRL and select multiple components. Select the Move with
Children option.
Which statement best describes the result of enabling the Follow Explode Sequence
option when animating explode states? - ANSWER The components explode or
unexplode in the order they were moved when creating the explode state, and
follow the drag motions used.
True or False? You can animate explode states to create both exploding
and unexploding animations. - ANSWER True
True or False? An explode state is only available when viewing 3-D models and
cannot be used within 2-D drawings. - ANSWER False
