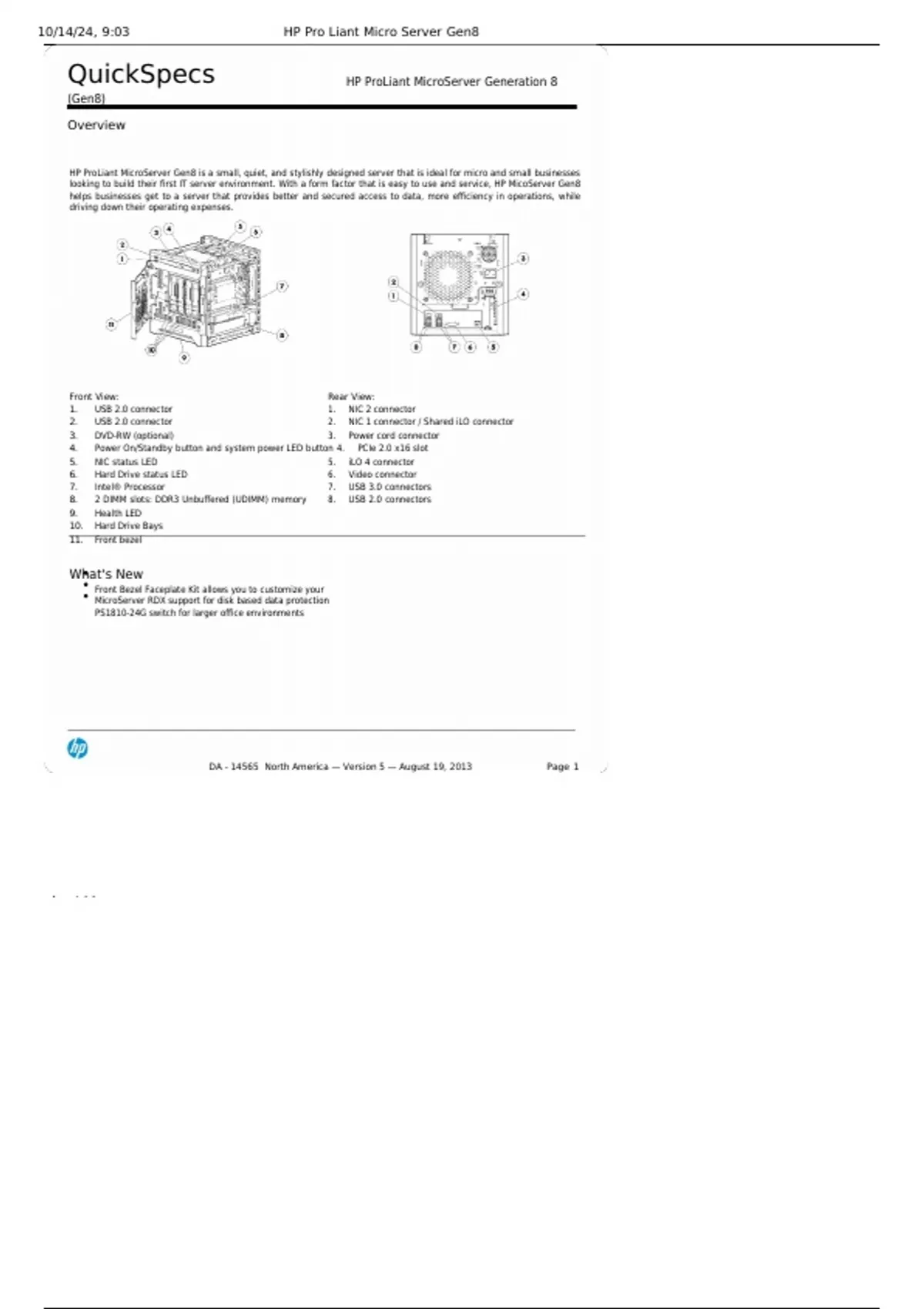

QuickSpecs HP ProLiant MicroServer Generation 8
(Gen8)
Overview
HP ProLiant MicroServer Gen8 is a small, quiet, and stylishly designed server that is ideal for micro and small businesses
looking to build their first IT server environment. With a form factor that is easy to use and service, HP MicoServer Gen8
helps businesses get to a server that provides better and secured access to data, more efficiency in operations, while
driving down their operating expenses.
Front View: Rear View:
1. USB 2.0 connector 1. NIC 2 connector
2. USB 2.0 connector 2. NIC 1 connector / Shared iLO connector
3. DVD-RW (optional) 3. Power cord connector
4. Power On/Standby button and system power LED button 4. PCIe 2.0 x16 slot
5. NIC status LED 5. iLO 4 connector
6. Hard Drive status LED 6. Video connector
7. Intel® Processor 7. USB 3.0 connectors
8. 2 DIMM slots: DDR3 Unbuffered (UDIMM) memory 8. USB 2.0 connectors
9. Health LED
10. Hard Drive Bays
11. Front bezel
What's New
Front Bezel Faceplate Kit allows you to customize your
MicroServer RDX support for disk based data protection
PS1810-24G switch for larger office environments
DA - 14565 North America — Version 5 — August 19, 2013 Page 1
about:bl 1/
,10/14/24, 9:03 HP Pro Liant Micro Server Gen8
AM quicspec
QuickSpecs HP ProLiant MicroServer Generation 8
(Gen8)
Standard Features
Processor NOTE: : Intel® Celeron® G1610T and Intel® Pentium® G2020T support up to 1333MHz DDR3
memory speed.
Intel® Celeron® G1610T (2.3Hz/2-core/2MB/35W)
Processor Intel® Pentium® G2020T
(2.5GHz/2-core/3MB/35W) Processor
Cache Memory 3MB (1 x 3MB) L3 Cache
NOTE: For Dual-core Pentium processor.
2MB (1 x 2MB) L3 Cache
NOTE: For Dual-core Celeron processor.
NOTE: All processor models above list the L3 Cache associated with that particular processor.
Chipset Intel® C204 Chipset
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
On System
HP iLO (Firmware: HP iLO 4)
Management
Processor NOTE: For more information, visit: http://www.hp.com/go/ilo.
Memory Protection ECC
Memory Type HP SmartMemory
DDR3 Unbuffered (UDIMM)
DIMM Slots Available 2
Standard 2GB (1 x 2GB) PC3-12800E DDR3 UDIMM
Maximum 16GB (2 x 8GB) PC3-12800E DDR3 UDIMM
NOTE: HP memory from previous generation servers are not fully compatible with the
HP ProLiant MicroServer Gen8.
Network Controller HP Ethernet 1Gb 2-port 332i Adapter
Expansion Slots Expansio Technolog Bus Connecto Form Factor Note
n y Width r s
Slot # * Width
1 PCIe 2.0 x16 x16 Low Profile
* Indicates the number of physical electrical lanes running to a PCI-e connector.
DA - 14565 North America — Version 5 — August 19, 2013 Page 2
about:bl 2/
, 10/14/24, 9:03 HP Pro Liant Micro Server Gen8
AM quicspec
QuickSpecs HP ProLiant MicroServer Generation 8
(Gen8)
Standard Features
HP Server ROM HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This
signature is verified before the flash process starts, reducing accidental programming and
preventing malicious efforts to corrupt system ROM.
HP ROM provides for essential initialization and validation of hardware components before
control is passed to the customer-installed operating system. The ROM also provides the
capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to
continue operation to the operating system.
HP ROM performs very early configuration of the video controller, to allow monitoring of
initialization progress via an attached monitor. If configuration or hardware errors are
discovered during this early phase of hardware initialization, suitable messages are now
displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management
Log (IML) to assist in diagnosis.
HP's ProLiant ROM is used to configure the following:
Processor and chipset status registers
System memory, memory map, and memory initialization
System hardware configuration (Integrated PCI devices and optional PCIe
cards). Customer-specific BIOS configuration (using the HP ROM-Based
Setup Utility (RBSU).
NOTE: For further information, please refer to HP's RBSU (ROM based setup utility) user guide:
www.hp.com/support/rbsu.
Storage Controller HP Dynamic Smart Array B120i Controller
NOTE: HDD bays 1 and 2 support 6.0Gb/s SATA. HDD bays 3 and 4 support 3.0Gb/s SATA.
NOTE: Supports RAID 0/1/10 only. No FBWC support. For FBWC, a standup Smart Array
Controller card must be configured.
NOTE: For more information about the controller and its features, see the HP Dynamic Smart
Array RAID
Controller User Guide on the HP website: (http://www.hp.com/support/DSA_RAID_UG_en).
NOTE: To configure arrays, see the Configuring Arrays on HP Smart Array Controllers
Reference Guide on the HP website (http://www.hp.com/support/CASAC_RG_en).
NOTE: For general information about HP Smart Array B120i SATA RAID Controller, please go to:
http://h18004.www1.hp.com/products/servers/proliantstorage/
arraycontrollers/dynamicsmartarray/index.html
Internal Storage Devices Optical Drive Optional: SATA DVD-RW drive
Hard Drives None ship standard
Maximum Internal Storage Non-Hot Plug SATA 12TB (4 x 3TB) 3.5" SATA
DA - 14565 North America — Version 5 — August 19, 2013 Page 3
about:bl 3/
