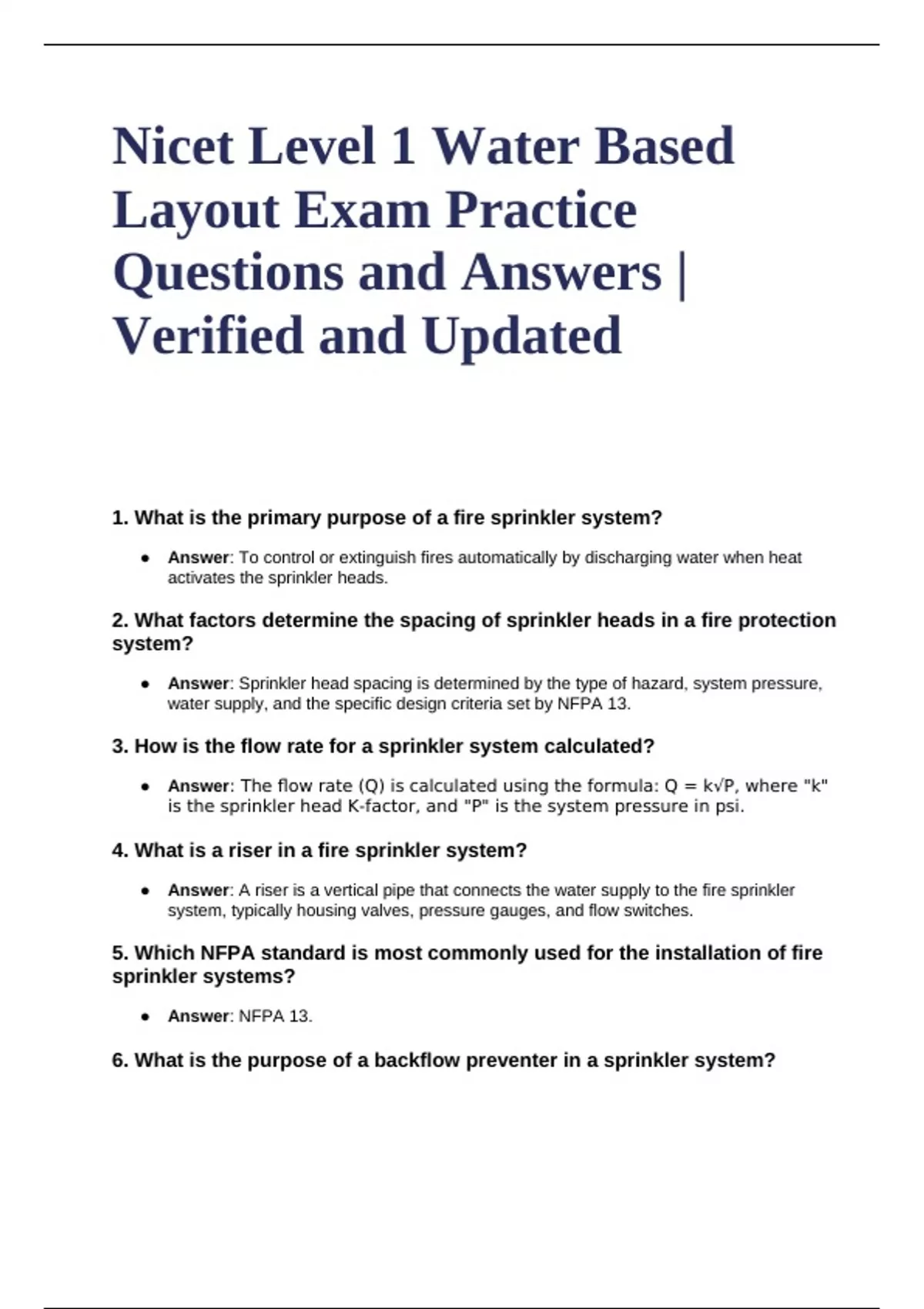

Nicet Level 1 Water Based
Layout Exam Practice
Questions and Answers |
Verified and Updated
1. What is the primary purpose of a fire sprinkler system?
● Answer: To control or extinguish fires automatically by discharging water when heat
activates the sprinkler heads.
2. What factors determine the spacing of sprinkler heads in a fire protection
system?
● Answer: Sprinkler head spacing is determined by the type of hazard, system pressure,
water supply, and the specific design criteria set by NFPA 13.
3. How is the flow rate for a sprinkler system calculated?
● Answer: The flow rate (Q) is calculated using the formula: Q = k√P, where "k"
is the sprinkler head K-factor, and "P" is the system pressure in psi.
4. What is a riser in a fire sprinkler system?
● Answer: A riser is a vertical pipe that connects the water supply to the fire sprinkler
system, typically housing valves, pressure gauges, and flow switches.
5. Which NFPA standard is most commonly used for the installation of fire
sprinkler systems?
● Answer: NFPA 13.
6. What is the purpose of a backflow preventer in a sprinkler system?
, ● Answer: A backflow preventer prevents contaminated water from flowing back into the
potable water supply from the fire sprinkler system.
7. What type of fire protection system is best suited for areas with sensitive
equipment?
● Answer: A pre-action system or a clean agent fire suppression system, as they are
designed to minimize water damage.
8. What is the difference between a wet pipe system and a dry pipe
system?
● Answer: In a wet pipe system, water is present in the pipes at all times. In a dry pipe
system, air fills the pipes, and water is only released into the pipes when a sprinkler
head is activated.
9. What is the function of a fire department connection (FDC) in a sprinkler
system?
● Answer: The FDC allows the fire department to pump additional water into the sprinkler
system to supplement the water supply in case of a fire.
10. What is a hydraulic calculation in the context of a fire sprinkler system
layout?
● Answer: Hydraulic calculations ensure that the system is capable of delivering the
necessary water flow and pressure to the sprinkler heads in the event of a fire.
11. What are the common types of sprinkler systems?
● Answer: Wet pipe, dry pipe, deluge, pre-action, and anti-freeze systems.
12. What role does a sprinkler head’s temperature rating play in system
design?
● Answer: The temperature rating of a sprinkler head determines the temperature at
which the head will activate, and it must be selected based on the environment where
the system is installed.
:
13. What is the purpose of a test and drain valve?
● Answer: It allows for testing of the system’s water flow and pressure and for draining
water from the system for maintenance.
14. What is a K-factor in a sprinkler system?
