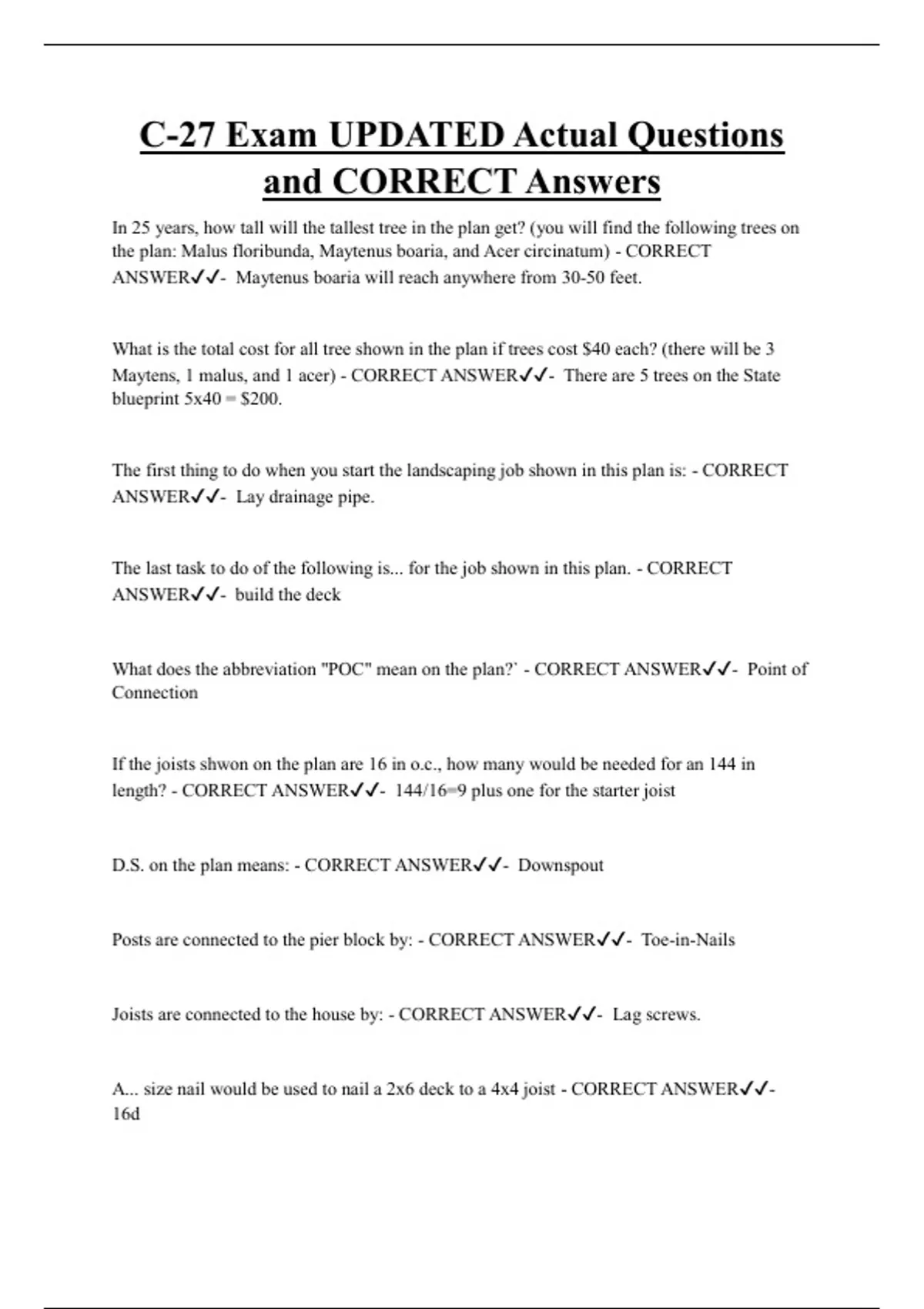

C-27 Exam UPDATED Actual Questions
and CORRECT Answers
In 25 years, how tall will the tallest tree in the plan get? (you will find the following trees on
the plan: Malus floribunda, Maytenus boaria, and Acer circinatum) - CORRECT
ANSWER✔✔- Maytenus boaria will reach anywhere from 30-50 feet.
What is the total cost for all tree shown in the plan if trees cost $40 each? (there will be 3
Maytens, 1 malus, and 1 acer) - CORRECT ANSWER✔✔- There are 5 trees on the State
blueprint 5x40 = $200.
The first thing to do when you start the landscaping job shown in this plan is: - CORRECT
ANSWER✔✔- Lay drainage pipe.
The last task to do of the following is... for the job shown in this plan. - CORRECT
ANSWER✔✔- build the deck
What does the abbreviation "POC" mean on the plan?` - CORRECT ANSWER✔✔- Point of
Connection
If the joists shwon on the plan are 16 in o.c., how many would be needed for an 144 in
length? - CORRECT ANSWER✔✔- 144/16=9 plus one for the starter joist
D.S. on the plan means: - CORRECT ANSWER✔✔- Downspout
Posts are connected to the pier block by: - CORRECT ANSWER✔✔- Toe-in-Nails
Joists are connected to the house by: - CORRECT ANSWER✔✔- Lag screws.
A... size nail would be used to nail a 2x6 deck to a 4x4 joist - CORRECT ANSWER✔✔-
16d
,The cut corners shown in the planter are called... - CORRECT ANSWER✔✔- Miter or Dada
The safest wire size for an electrical extension cord is: - CORRECT ANSWER✔✔- #12
In an electrical system, what is the white wire? - CORRECT ANSWER✔✔- Neutral
How many wires would you run from the controller, if you have six-station sprinkler system?
- CORRECT ANSWER✔✔- 6+1 common
The voltage in low-voltage garden light is: - CORRECT ANSWER✔✔- 12V
In a low voltage system, there are two 25 watt lights, five 30 watt lights, and one 50 watt
light. How many watts would you have to run in the system? - CORRECT ANSWER✔✔-
250. To determine wattage, just add the watts.
How is the wire size in a low voltage system determine? - CORRECT ANSWER✔✔- the
distance to be run (to compensate for voltage drop, caused by a long run of wire)
An outlet must be... feet from the pool. - CORRECT ANSWER✔✔- 10 feet
If a wire is #12, what is the maximum length for one set of landscape lights? - CORRECT
ANSWER✔✔- 100. Measured from the transformer to the last light.
One of the following wires gets the hottest: - CORRECT ANSWER✔✔- #12 series ( the
greater the resistance, the hotter the circuit gets. #12 is smaller than #10, so it has more
resistance. Parallel circuits have only a fraction the resistance as one in series)
What causes lights to dim at the end of the line? - CORRECT ANSWER✔✔- They were
wired in a series (if wired in series, each light further from the source has a drop in voltage
equal to the amount of voltage used by the previous light. Also not enough amps in the
system.
, If you are coming off a 120V household circuit and you must convert to 12V, you should: -
CORRECT ANSWER✔✔- call an electrician
Where is the splicing made, when splicing into a lighting system? - CORRECT
ANSWER✔✔- Above the ground (splicing must be "known" and "accessible")
An electrician brings in... wires from the house to an automatic sprinkler control: -
CORRECT ANSWER✔✔- 2
Which two things will give you a shock if you touch them simultaneously? - CORRECT
ANSWER✔✔- Black and white; black and a metal pipe
If you live wire were to come into contact with a power tool, what will best protect you from
shock? - CORRECT ANSWER✔✔- GFI (GFI means ground fault interrupter. The circuit
breaker and fuse protect the circuit. GFI protects you. It is much faster and responds to a
much weaker electrical event.
What is printed on the label of underground direct-burial wire? - CORRECT ANSWER✔✔-
UF (underground feeder)
What type must low voltage control conductors be? - CORRECT ANSWER✔✔- UF
A... cable is used for low voltage lighting. - CORRECT ANSWER✔✔- #12-2 UF (2
conductors of American wire gauge size #12. They must be copper, not aluminum.)
A... light bulb gives off the truest color. - CORRECT ANSWER✔✔- quartz halogen
You use a... to pull a wire through a conduit. - CORRECT ANSWER✔✔- fish tape
What is the maximum voltage you can work with before you must obtain a building permit? -
CORRECT ANSWER✔✔- 12V
What is the white wire in a sprinkler system? - CORRECT ANSWER✔✔- neutral
