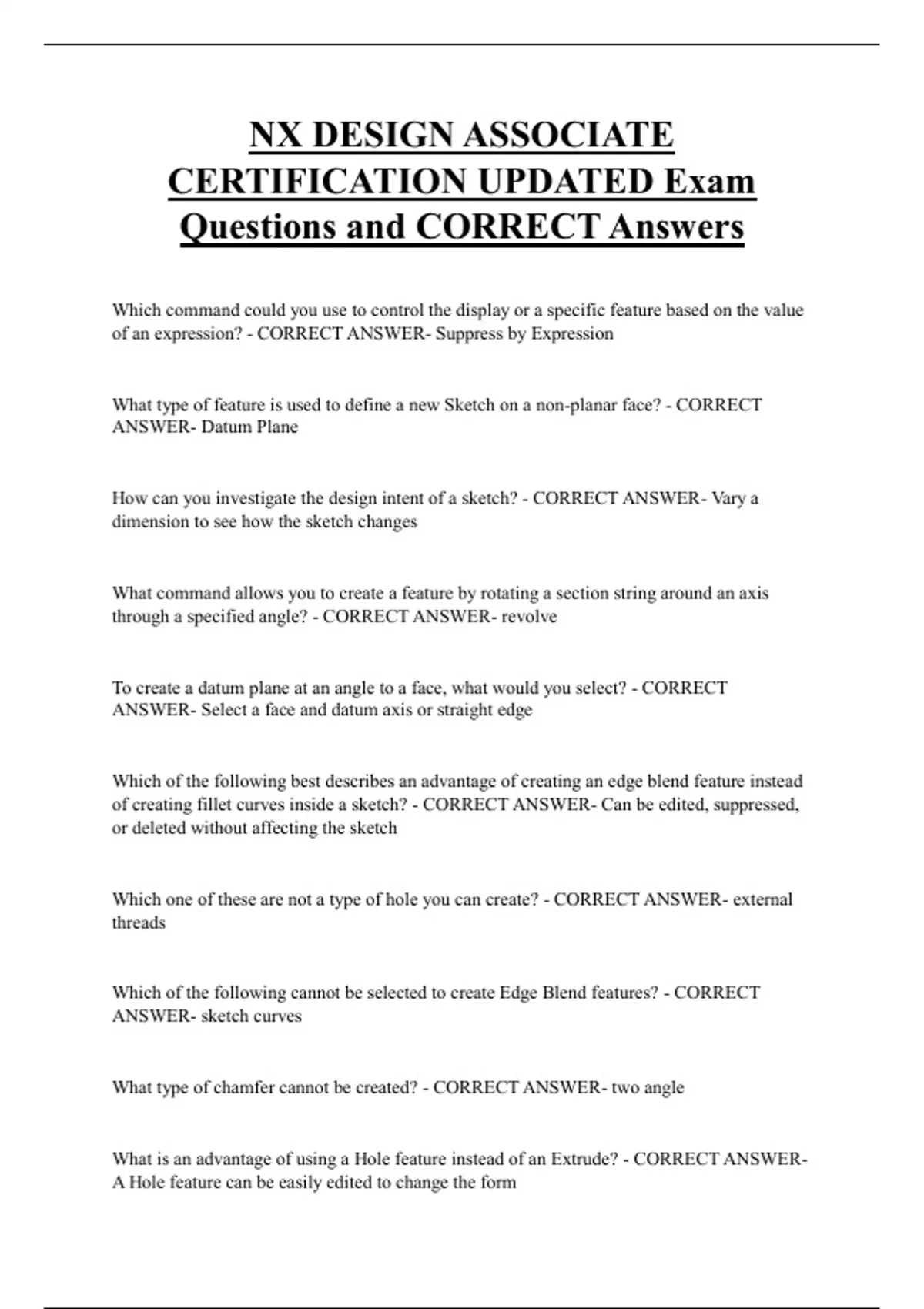

NX DESIGN ASSOCIATE
CERTIFICATION UPDATED Exam
Questions and CORRECT Answers
Which command could you use to control the display or a specific feature based on the value
of an expression? - CORRECT ANSWER- Suppress by Expression
What type of feature is used to define a new Sketch on a non-planar face? - CORRECT
ANSWER- Datum Plane
How can you investigate the design intent of a sketch? - CORRECT ANSWER- Vary a
dimension to see how the sketch changes
What command allows you to create a feature by rotating a section string around an axis
through a specified angle? - CORRECT ANSWER- revolve
To create a datum plane at an angle to a face, what would you select? - CORRECT
ANSWER- Select a face and datum axis or straight edge
Which of the following best describes an advantage of creating an edge blend feature instead
of creating fillet curves inside a sketch? - CORRECT ANSWER- Can be edited, suppressed,
or deleted without affecting the sketch
Which one of these are not a type of hole you can create? - CORRECT ANSWER- external
threads
Which of the following cannot be selected to create Edge Blend features? - CORRECT
ANSWER- sketch curves
What type of chamfer cannot be created? - CORRECT ANSWER- two angle
What is an advantage of using a Hole feature instead of an Extrude? - CORRECT ANSWER-
A Hole feature can be easily edited to change the form
, You create a threaded hole in a lug for a specific size fastener. The resulting Hole feature
includes: - CORRECT ANSWER- A single feature The hole, threads, and the entry and exit
chamfers
Why would you use a separate Thread command? - CORRECT ANSWER- To create external
threads
You can create a chamfer feature or chamfer curves inside a sketch. What is a potential
advantage of creating chamfers in a sketch? - CORRECT ANSWER- Your model history will
have fewer features
Why would you want to deactivate the Timestamp Order option in the Part Navigator? -
CORRECT ANSWER- To view solid bodies in the model
When selecting a feature in the Part Navigator, what do the colors of the text above and
below the selected Feature mean? - CORRECT ANSWER- The Parent- and Child
relationships
When selecting a feature in the Part Navigator what color does the text of its children features
then become? - CORRECT ANSWER- blue
In the Part Navigator how can you list the parameters, expressions, and values of a feature
without using the Show Dimensions command? - CORRECT ANSWER- Open the Details
Group
After using the Show Dimensions command on a sketch how do you erase the temporarily-
displayed dimensions from the graphics window? - CORRECT ANSWER- Use the Refresh
command
By default, what happens to the child features when their parent feature is deleted? -
CORRECT ANSWER- The child features are automatically deleted
Which Synchronous Modeling command can be used to change the radii of this feature
regardless of the feature history? - CORRECT ANSWER- Resize Blend
