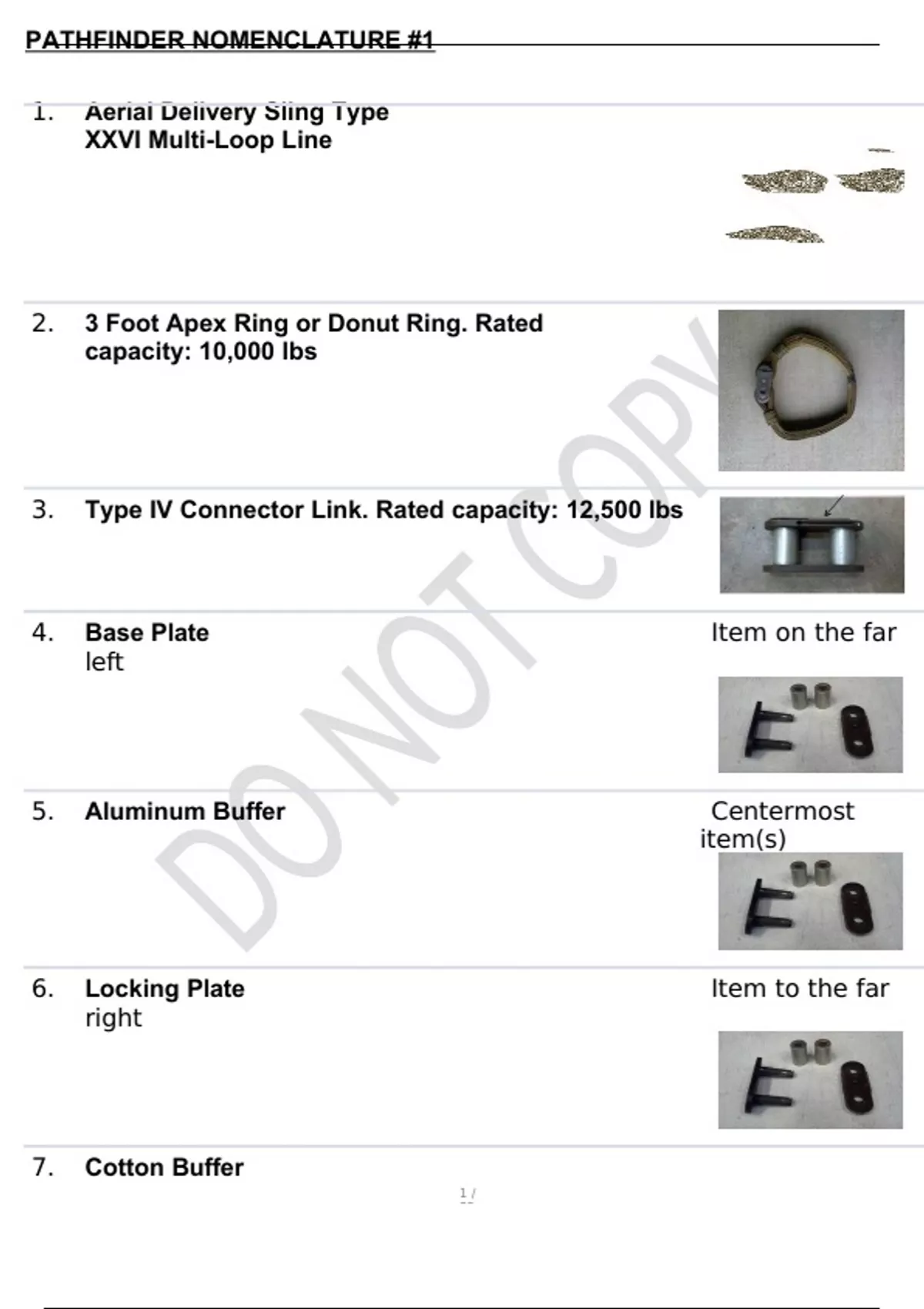

PATHFINDER NOMENCLATURE #1

PATHFINDER NOMENCLATURE #1

1. Aerial Delivery Sling Type
XXVI Multi-Loop Line




2. 3 Foot Apex Ring or Donut Ring. Rated
capacity: 10,000 lbs




3. Type IV Connector Link. Rated capacity: 12,500 lbs



4. Base Plate Item on the far
left




5. Aluminum Buffer Centermost
item(s)




6. Locking Plate Item to the far
right




7. Cotton Buffer
1/
33

,PATHFINDER NOMENCLATURE #1




8. Two Point Link Assembly. Rated capacity: 25,000
lbs


Item 1
9. Small Suspension Clevis. Rated capacity: 6,250
lbs, Lifting provision: 3,750 lbs

Item 2
10. Medium Suspension Clevis. Rated capacity:
6,250 lbs, Lifting provision: 3,750 lbs


11. Large Suspension Clevis. Rated capacity: 12,500 lbs, Item 3
Lifting provision: 7,875 lbs


12. Nut Item 4



13. Bolt Item 5



14. A7A Strap. Rated capacity: 500 lbs Item 1




2/
33

,PATHFINDER NOMENCLATURE #1




3/
33

, Pathfinder Nomenclature


15. Friction Adapter Item 2




16. CGU-1/B. Rated capacity: 5,000 lbs




17. 15 Foot Tie-Down Strap. Rated capacity: 10,000 lbs Item 1




18. D-Ring (15-foot) Item 2




19. Silver Load Binder. Rated capacity: 5,000 lbs Item 3




20. Black Load Binder. Rated capacity: 10,000 lbs Item 4




3/
33
