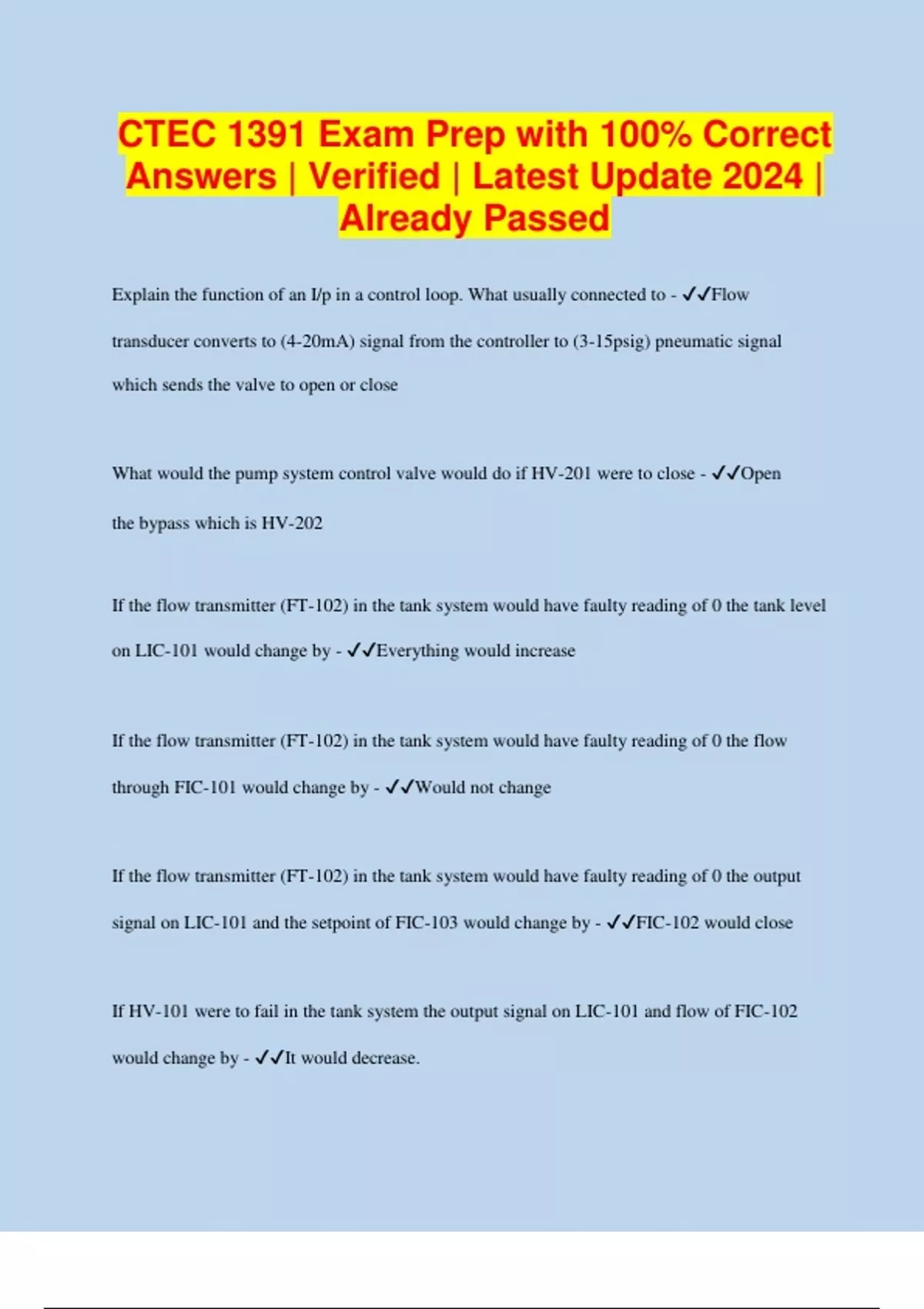

CTEC 1391 Exam Prep with 100% Correct Answers | Verified | Latest Update 2024 | Already Passed

Explain the function of an I/p in a control loop. What usually connected to - Flow transducer converts to (4-20mA) signal from the controller to (3-15psig) pneumatic signal which sends the valve to open or close What would the pump system control valve would do if HV-201 were to close - Open the bypass which is HV-202 If the flow transmitter (FT-102) in the tank system would have faulty reading of 0 the tank level on LIC-101 would change by - Everything would increase If the flow transmitter (FT-102) in the tank system would have faulty reading of 0 the flow through FIC-101 would change by - Would not change If the flow transmitter (FT-102) in the tank system would have faulty reading of 0 the output signal on LIC-101 and the setpoint of FIC-103 would change by - FIC-102 would close If HV-101 were to fail in the tank system the output signal on LIC-101 and flow of FIC-102 would change by - It would decrease.
