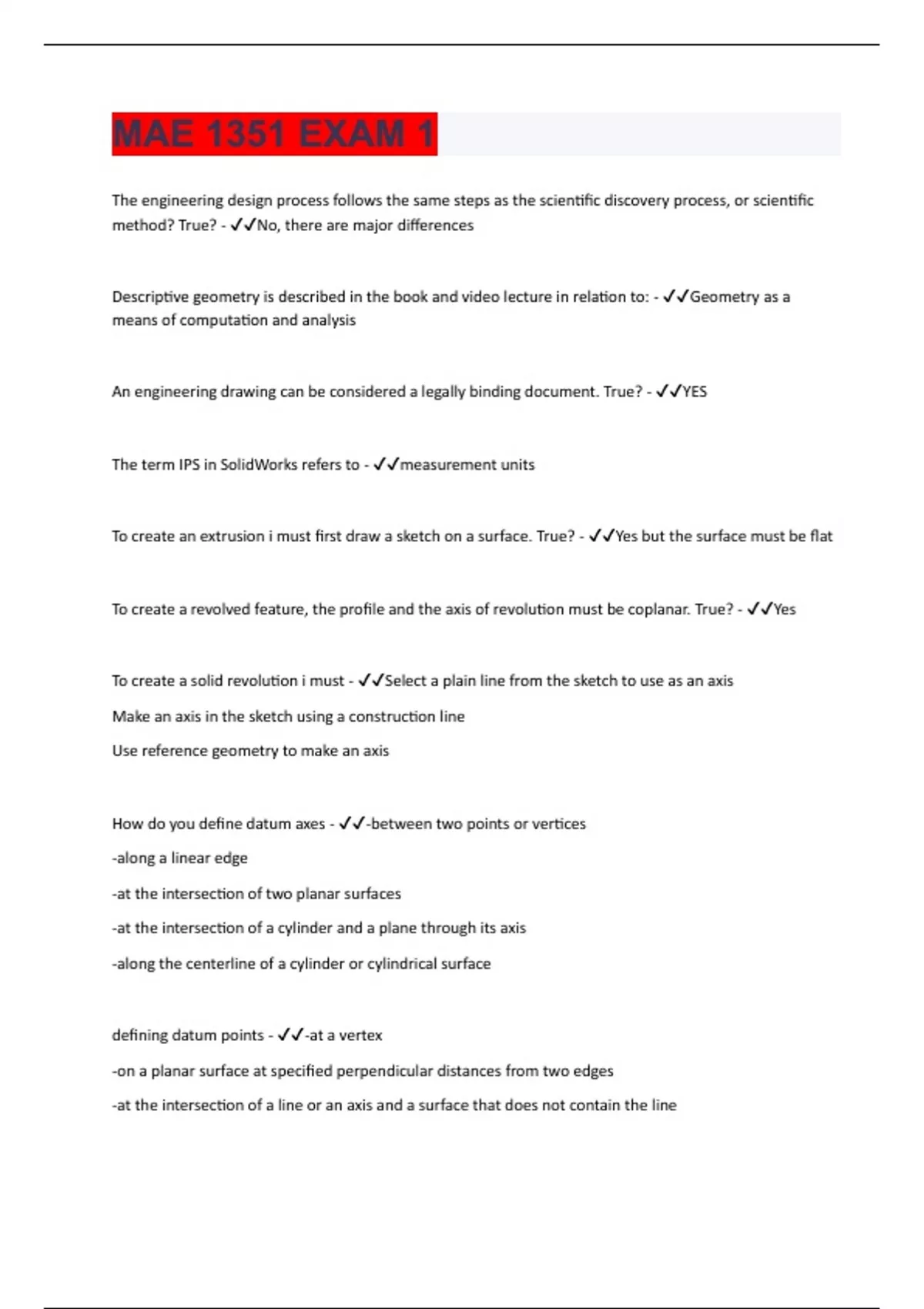

MAE 1351 EXAM 1 | Questions with 100% Correct Answers | verified

The engineering design process follows the same steps as the scientific discovery process, or scientific method? True? - No, there are major differences Descriptive geometry is described in the book and video lecture in relation to: - Geometry as a means of computation and analysis An engineering drawing can be considered a legally binding document. True? - YES The term IPS in SolidWorks refers to - measurement units To create an extrusion i must first draw a sketch on a surface. True? - Yes but the surface must be flat To create a revolved feature, the profile and the axis of revolution must be coplanar. True? - Yes To create a solid revolution i must - Select a plain line from the sketch to use as an axis Make an axis in the sketch using a construction line Use reference geometry to make an axis How do you define datum axes - -between two points or vertices -along a linear edge -at the intersection of two planar surfaces -at the intersection of a cylinder and a plane through its axis -along the centerline of a cylinder or cylindrical surface defining datum points - -at a vertex -on a planar surface at specified perpendicular distances from two edges -at the intersection of a line or an axis and a surface that does not contain the line
