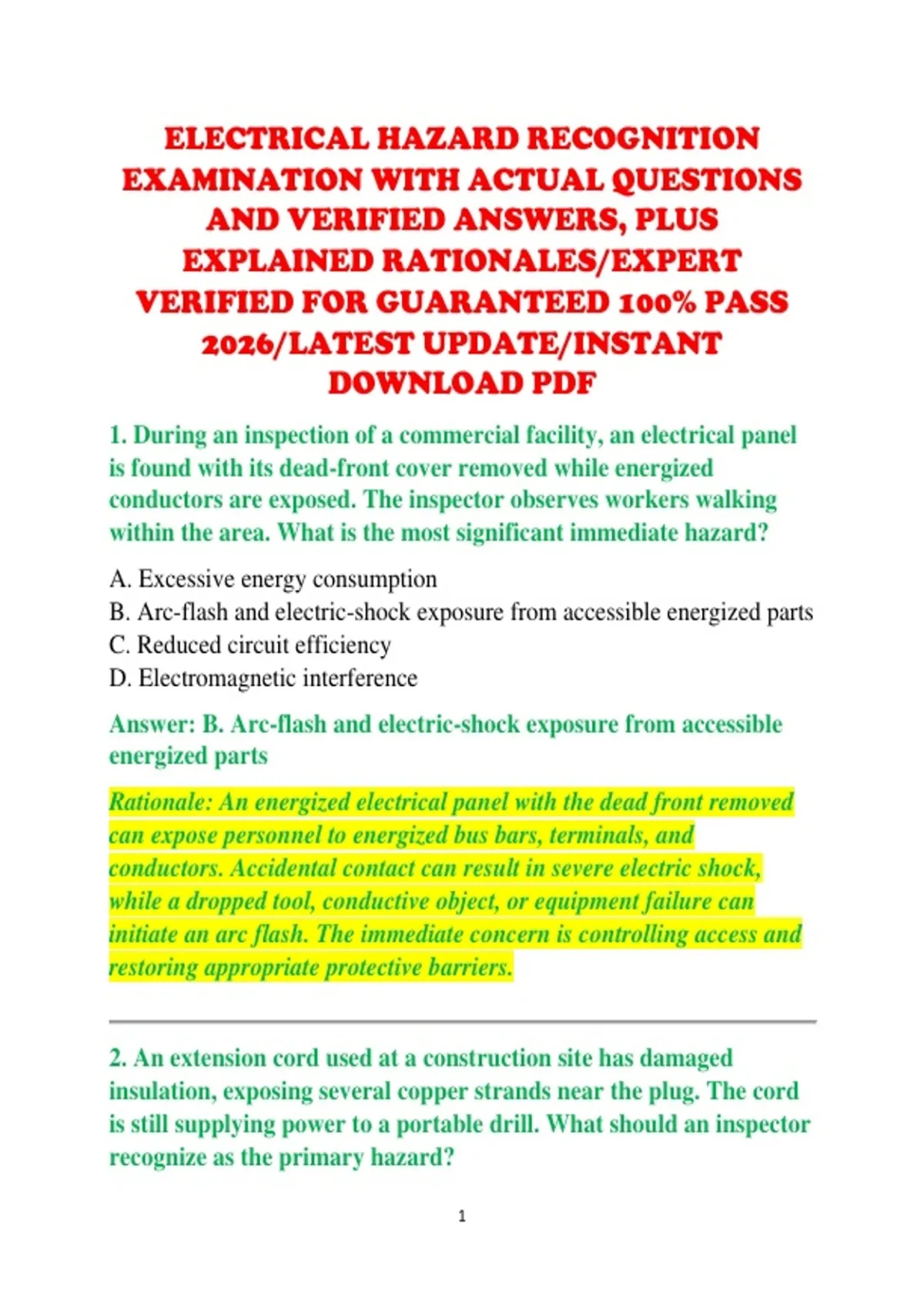

ELECTRICAL HAZARD RECOGNITION
EXAMINATION WITH ACTUAL QUESTIONS
AND VERIFIED ANSWERS, PLUS
EXPLAINED RATIONALES/EXPERT
VERIFIED FOR GUARANTEED 100% PASS
2026/LATEST UPDATE/INSTANT
DOWNLOAD PDF
1. During an inspection of a commercial facility, an electrical panel
is found with its dead-front cover removed while energized
conductors are exposed. The inspector observes workers walking
within the area. What is the most significant immediate hazard?
A. Excessive energy consumption
B. Arc-flash and electric-shock exposure from accessible energized parts
C. Reduced circuit efficiency
D. Electromagnetic interference
Answer: B. Arc-flash and electric-shock exposure from accessible
energized parts
Rationale: An energized electrical panel with the dead front removed
can expose personnel to energized bus bars, terminals, and
conductors. Accidental contact can result in severe electric shock,
while a dropped tool, conductive object, or equipment failure can
initiate an arc flash. The immediate concern is controlling access and
restoring appropriate protective barriers.
2. An extension cord used at a construction site has damaged
insulation, exposing several copper strands near the plug. The cord
is still supplying power to a portable drill. What should an inspector
recognize as the primary hazard?
1
,A. Excessive voltage regulation
B. Increased electrical resistance only
C. Shock, short-circuit, and fire hazards
D. Reduced motor speed
Answer: C. Shock, short-circuit, and fire hazards
Rationale: Damaged insulation can expose energized conductors to
personnel and conductive surfaces. The exposed conductor may also
contact another conductor or grounded object, creating a short circuit
or arcing condition. Continued use of a damaged cord significantly
increases the possibility of shock, burns, fire, and equipment damage.
3. A worker is standing on a damp concrete floor while operating a
portable electric tool that has damaged grounding protection. Why
does the damp environment substantially increase the severity of a
potential shock?
A. Water increases the resistance of the human body
B. Moisture can reduce body resistance and improve current flow
through the body
C. Concrete completely prevents current flow
D. Moisture increases circuit voltage
Answer: B. Moisture can reduce body resistance and improve
current flow through the body
Rationale: Moisture can substantially reduce skin resistance,
particularly when the skin is wet or damaged. A person standing on
conductive or damp surfaces may therefore provide a lower-resistance
path to ground. The resulting current through the body can become
more severe, potentially causing muscular paralysis, ventricular
fibrillation, burns, or death.
2
,4. An inspector finds a receptacle with a missing cover plate. The
receptacle is located approximately waist height in a heavily
occupied workshop. What hazard does the missing cover plate
create?
A. Only an aesthetic deficiency
B. Increased energy consumption
C. Possible access to energized components and increased physical
damage
D. Increased circuit voltage
Answer: C. Possible access to energized components and increased
physical damage
Rationale: A cover plate provides protection against accidental contact
with portions of the wiring device and helps prevent foreign objects
from entering the device. In a workshop, the exposed device is also
more susceptible to impact, contamination, and conductive debris. The
hazard is therefore both electrical and physical.
5. A 120-volt circuit has a damaged conductor whose insulation has
deteriorated. The conductor is touching a metal enclosure that is not
properly grounded. What is the most dangerous consequence?
A. The enclosure can become energized without an effective fault-
clearing path
B. The circuit will automatically become de-energized
C. The conductor will lose all voltage
D. The equipment will necessarily operate normally
Answer: A. The enclosure can become energized without an
effective fault-clearing path
Rationale: If an energized conductor contacts a metal enclosure and
the enclosure lacks an effective grounding and bonding path, the
3
, enclosure can remain energized. A person touching the enclosure
while simultaneously contacting ground or another conductive object
could become the fault-current path. This is a classic electric-shock
hazard.
6. During an inspection, an electrical cord is routed across a
pedestrian walkway without mechanical protection. What hazard
should receive the greatest attention?
A. Increased harmonic distortion
B. Trip damage and subsequent electrical conductor damage
C. Reduced electrical frequency
D. Excessive transformer efficiency
Answer: B. Trip damage and subsequent electrical conductor
damage
Rationale: Cords crossing walkways can create immediate trip
hazards. People can also pull, crush, or repeatedly bend the cord,
damaging insulation and conductors. Mechanical damage can
subsequently expose energized conductors and create shock, short-
circuit, or fire hazards.
7. An electrical disconnect is located behind stored boxes, making it
difficult to reach quickly. Why is this condition hazardous?
A. It increases the circuit's power factor
B. It prevents adequate ventilation of the electrical equipment
C. It can delay emergency de-energization during an electrical incident
D. It automatically causes an overload
Answer: C. It can delay emergency de-energization during an
electrical incident
4
