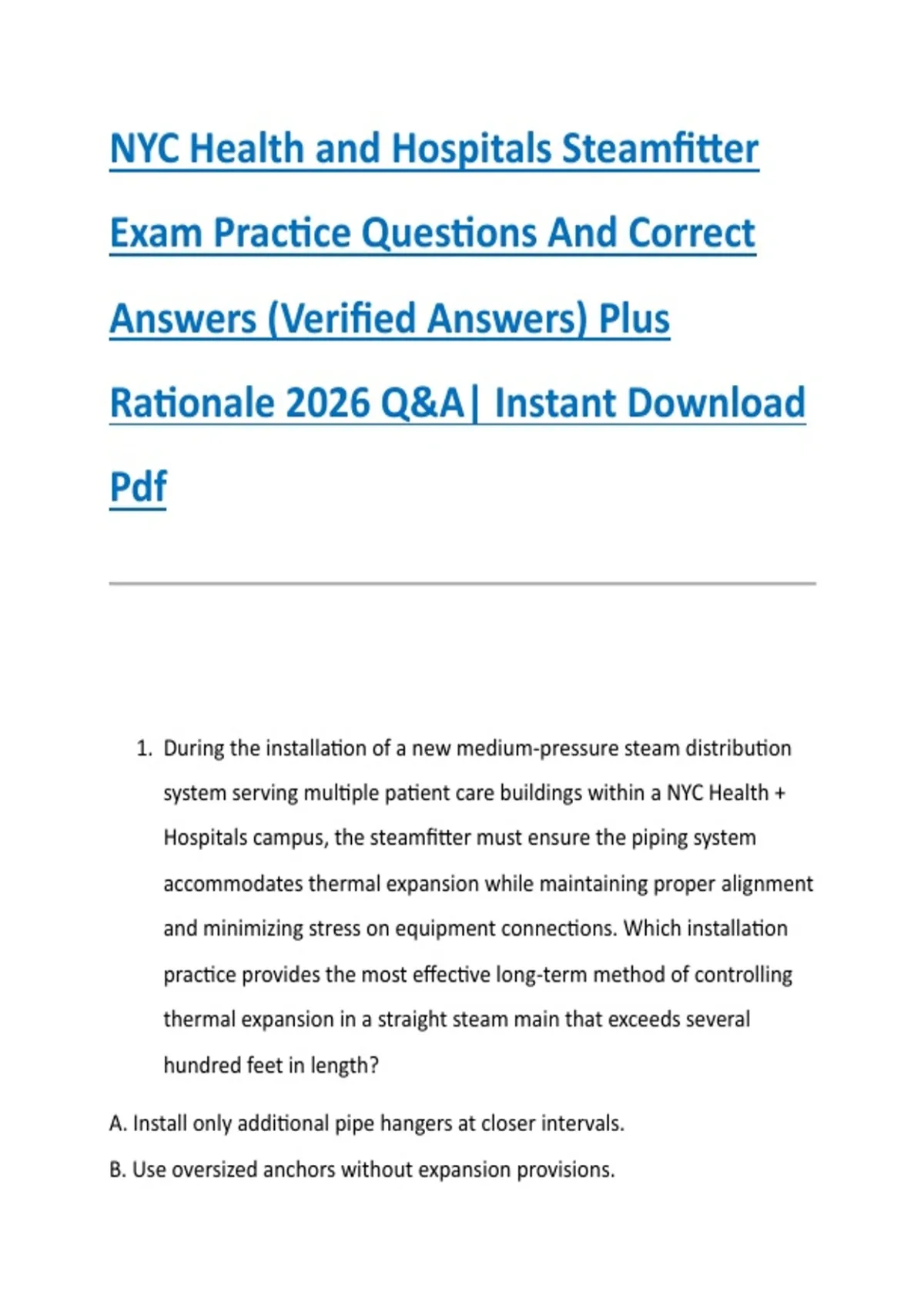

NYC Health and Hospitals Steamfitter
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. During the installation of a new medium-pressure steam distribution
system serving multiple patient care buildings within a NYC Health +
Hospitals campus, the steamfitter must ensure the piping system
accommodates thermal expansion while maintaining proper alignment
and minimizing stress on equipment connections. Which installation
practice provides the most effective long-term method of controlling
thermal expansion in a straight steam main that exceeds several
hundred feet in length?
A. Install only additional pipe hangers at closer intervals.
B. Use oversized anchors without expansion provisions.
,C. Incorporate engineered expansion loops or expansion joints together
with properly located guides and anchors.
D. Increase pipe wall thickness to resist movement.
Rationale: Steam piping expands significantly as temperature rises.
Properly designed expansion loops or approved expansion joints, combined
with correctly positioned anchors and guides, safely absorb thermal
movement while preventing excessive stress on valves, equipment, and
piping supports. Merely increasing support density or pipe thickness does
not eliminate expansion forces.
2. A steamfitter is troubleshooting a steam heating coil in an air handling
unit that consistently delivers insufficient heating despite the supply
valve being fully open. The steam trap has recently been replaced, and
the condensate return appears unrestricted. Which condition is the
most likely cause if condensate is found standing within the coil during
operation?
A. Excessively high condensate temperature.
B. Oversized air vents on nearby radiators.
C. Inadequate differential pressure across the control valve preventing
condensate removal and proper steam distribution.
D. Low insulation thickness on downstream piping.
Rationale: Standing condensate inside a heating coil indicates poor
condensate drainage, which often results from insufficient differential
,pressure across the control valve or improper control valve sizing.
Condensate accumulation reduces heat transfer and may lead to water
hammer and premature equipment failure.
3. While commissioning a hospital steam system, a technician notices
repeated water hammer immediately after startup in a horizontal
steam main supplying sterilization equipment. Which installation
deficiency is the most probable cause?
A. Steam pressure is slightly above design value.
B. Steam velocity is below recommended limits.
C. Excessive insulation thickness.
D. Improper pipe pitch allowing condensate to accumulate in the steam
main.
Rationale: Horizontal steam mains must maintain proper slope toward
designated drip points so condensate drains continuously. Improper pitch
allows condensate to pool, where high-velocity steam can propel it through
the system, producing severe water hammer capable of damaging piping
and equipment.
4. A pressure-reducing station lowers steam pressure from the campus
distribution system before entering a building mechanical room. Which
component is most critical for protecting downstream equipment if
the pressure-reducing valve fails in the open position?
, A. Temperature gauge.
B. Flow indicator.
C. Condensate receiver.
D. Properly sized safety relief valve installed downstream of the pressure-
reducing valve.
Rationale: If a pressure-reducing valve fails open, downstream equipment
may be exposed to dangerously high pressure. A properly sized safety relief
valve provides essential overpressure protection by safely discharging
excess steam before system components exceed their pressure ratings.
5. During inspection of a shell-and-tube steam heat exchanger, operators
report reduced heating capacity and unstable outlet temperatures.
The steam supply pressure remains normal, but condensate removal is
sluggish. Which maintenance issue is most likely responsible?
A. Excessively large expansion loops.
B. High ambient mechanical room temperature.
C. Steam trap malfunction causing condensate backup inside the heat
exchanger.
D. Oversized pipe insulation.
Rationale: Efficient steam heat transfer depends on rapid condensate
removal. A malfunctioning steam trap allows condensate to accumulate,
reducing available heat transfer surface, decreasing efficiency, and causing
unstable outlet temperatures.
