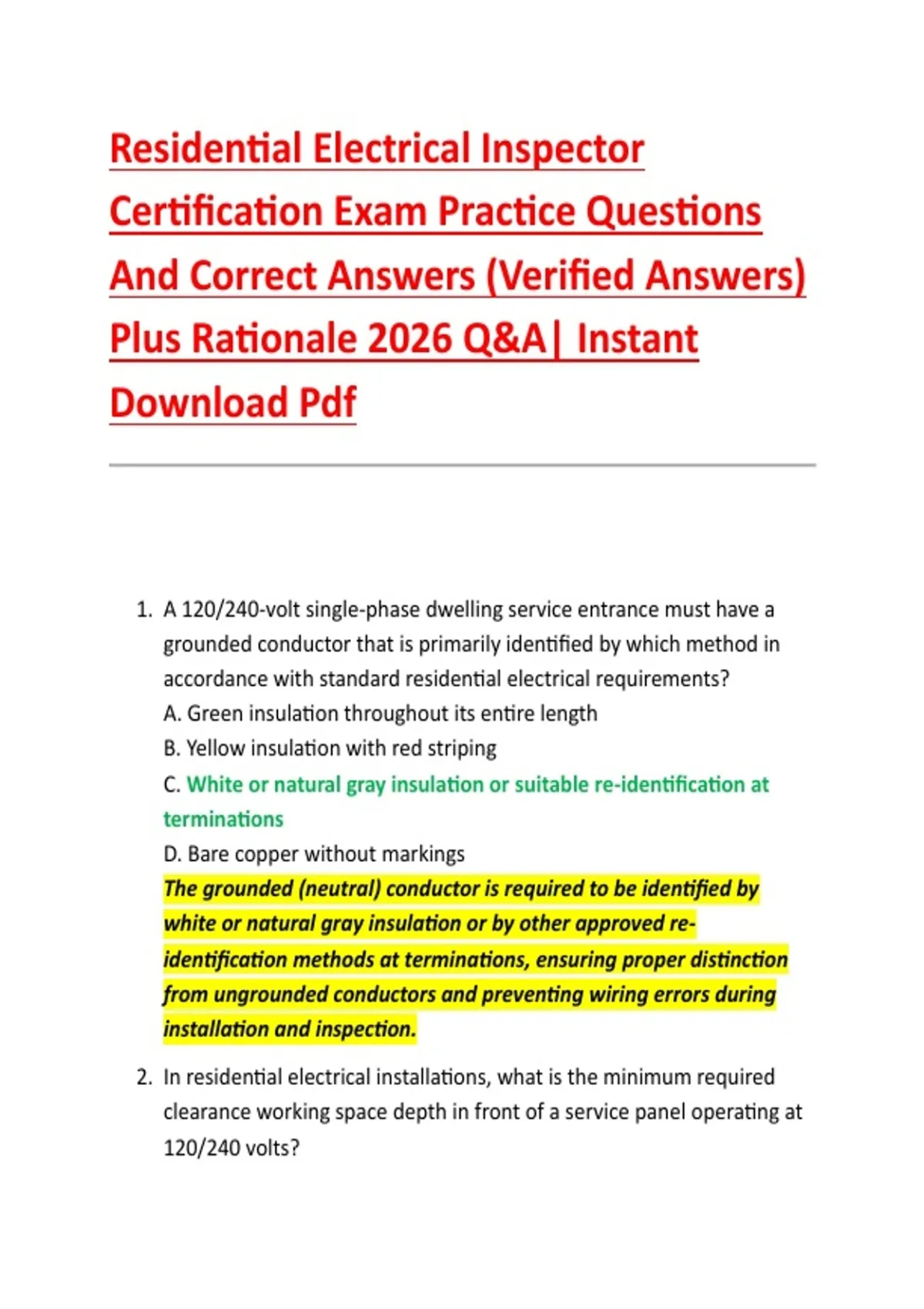

Residential Electrical Inspector
Certification Exam Practice Questions
And Correct Answers (Verified Answers)
Plus Rationale 2026 Q&A| Instant
Download Pdf
1. A 120/240-volt single-phase dwelling service entrance must have a
grounded conductor that is primarily identified by which method in
accordance with standard residential electrical requirements?
A. Green insulation throughout its entire length
B. Yellow insulation with red striping
C. White or natural gray insulation or suitable re-identification at
terminations
D. Bare copper without markings
The grounded (neutral) conductor is required to be identified by
white or natural gray insulation or by other approved re-
identification methods at terminations, ensuring proper distinction
from ungrounded conductors and preventing wiring errors during
installation and inspection.
2. In residential electrical installations, what is the minimum required
clearance working space depth in front of a service panel operating at
120/240 volts?
, A. 24 inches
B. 30 inches
C. 36 inches
D. 48 inches
Electrical codes require a minimum working space depth of 36 inches
in front of panelboards to ensure safe access for operation and
maintenance, reducing the risk of accidental contact with energized
parts.
3. What is the primary purpose of a grounding electrode system in a
residential electrical installation?
A. To increase voltage stability in branch circuits
B. To limit overcurrent in appliance cords
C. To provide a low-impedance path to earth for fault current and
stabilize system voltage to ground
D. To isolate metallic raceways from all fault conditions
The grounding electrode system is designed to safely dissipate fault
current into the earth and maintain system voltage stability relative
to ground, thereby reducing shock and fire hazards.
4. Which of the following best describes the correct installation
requirement for nonmetallic-sheathed cable (NM cable) in residential
interior walls?
A. It must always be installed in rigid metal conduit
B. It may be installed exposed in damp locations without protection
C. It must be protected from physical damage where necessary and
used only in permitted dry locations
D. It can be used for direct burial underground without conduit
NM cable is permitted primarily in dry, protected interior locations
and must be safeguarded from physical damage; it is not approved
for wet locations or direct burial applications.
,5. A 20-ampere branch circuit supplying residential kitchen countertop
receptacles must have how many receptacle outlets minimum?
A. One
B. Two
C. At least one receptacle every 24 inches of counter space (or
spacing not exceeding code limits)
D. One receptacle per kitchen wall only
Residential kitchen countertop receptacle spacing rules require
outlets to be installed so that no point along the counter is more than
a specified distance from a receptacle, ensuring adequate appliance
access and reducing extension cord hazards.
6. What is the required minimum rating for a receptacle installed for
servicing HVAC equipment in a dwelling unit?
A. 15-ampere only
B. 10-ampere only
C. 15-ampere or 20-ampere, 125-volt, single-phase
D. 30-ampere, 240-volt only
Service receptacles for HVAC equipment must typically be rated 125
volts at 15 or 20 amperes to accommodate standard maintenance
tools while complying with residential equipment requirements.
7. Which condition would violate residential grounding rules for
equipment enclosures?
A. Bonding metal boxes together using approved fittings
B. Connecting equipment grounding conductor to enclosures
C. Connecting the grounded (neutral) conductor to equipment
grounding terminals downstream of the service disconnect
D. Using listed grounding bushings for metal conduit
The neutral conductor must not be bonded to equipment grounding
conductors or enclosures downstream of the service disconnect to
, prevent unintended current flow on metal parts, which creates shock
hazards.
8. What is the maximum number of 15-ampere receptacles generally
permitted on a 20-ampere residential branch circuit under typical
design practice?
A. 1
B. 3
C. As many as required by load calculation and code limitations (no
fixed limit, but load governed)
D. Exactly 10
Modern residential codes do not impose a fixed number of
receptacles per circuit; instead, the allowable quantity depends on
calculated load and proper circuit design to prevent overloading.
9. Which wiring method is most commonly used for concealed residential
interior branch circuits in modern dwellings?
A. Armored cable (AC/BX)
B. Rigid metal conduit
C. Nonmetallic-sheathed cable (NM cable)
D. Electrical metallic tubing in all walls
Nonmetallic-sheathed cable is widely used in residential construction
due to its ease of installation, cost efficiency, and suitability for dry
interior environments.
10. A receptacle installed in a bathroom must be located where
relative to the lavatory basin?
A. At least 10 feet away on any wall
B. Only inside a cabinet beneath the sink
C. On the wall adjacent to the basin within accessible distance
requirements
D. Only on the ceiling above the fixture
