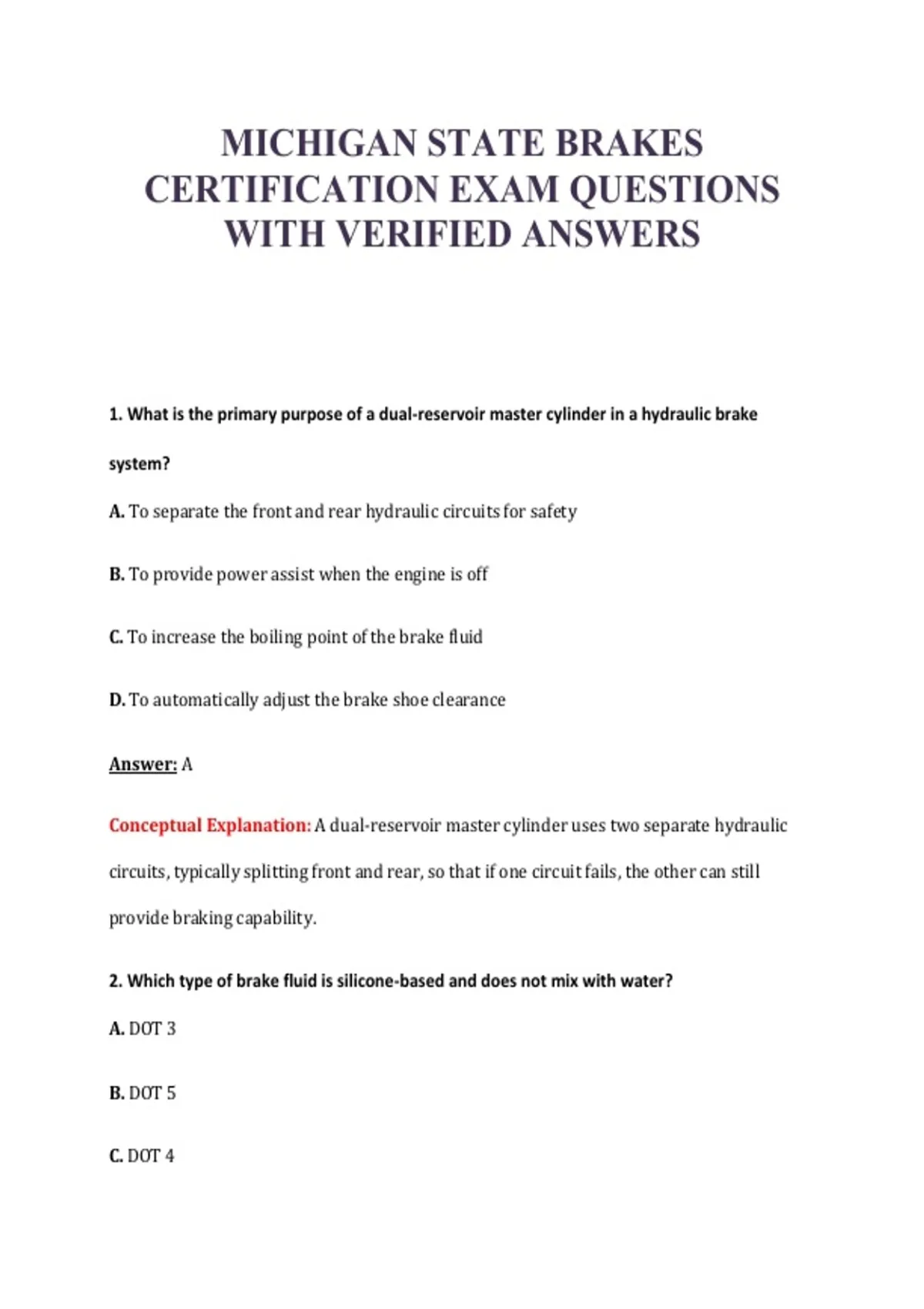

MICHIGAN STATE BRAKES
CERTIFICATION EXAM QUESTIONS
WITH VERIFIED ANSWERS
1. What is the primary purpose of a dual-reservoir master cylinder in a hydraulic brake
system?
A. To separate the front and rear hydraulic circuits for safety
B. To provide power assist when the engine is off
C. To increase the boiling point of the brake fluid
D. To automatically adjust the brake shoe clearance
Answer: A
Conceptual Explanation: A dual-reservoir master cylinder uses two separate hydraulic
circuits, typically splitting front and rear, so that if one circuit fails, the other can still
provide braking capability.
2. Which type of brake fluid is silicone-based and does not mix with water?
A. DOT 3
B. DOT 5
C. DOT 4
,D. DOT 5.1
Answer: B
Conceptual Explanation: DOT 5 brake fluid is silicone-based, purple in color, and
hydrophobic (does not mix with water). DOT 3, 4, and 5.1 are glycol-based and absorb
moisture.
3. During a brake inspection, you find that one front disc brake pad is worn down significantly
more than the other pad on the same wheel. What is the most likely cause?
A. Master cylinder internal leakage
B. Air trapped in the brake lines
C. Worn caliper slide pins or stuck caliper slides
D. Defective proportioning valve
Answer: C
Conceptual Explanation: Uneven pad wear between the inner and outer pads on the same
caliper is usually caused by seized, binding, or improperly lubricated caliper slide pins or
abutments.
4. What tool should be used to measure brake rotor thickness variation?
A. Feeler gauge
B. Dial indicator
C. Vernier caliper
, D. Outside micrometer
Answer: D
Conceptual Explanation: An outside micrometer is required to accurately measure rotor
thickness at multiple points around the circumference to check for thickness variation.
5. A customer complains of a pulsating brake pedal when stopping from highway speeds.
What is the most likely cause?
A. Low brake fluid level
B. Seized wheel cylinder
C. Warped or excessively thick-varied brake rotors
D. Glazed drum brake linings
Answer: C
Conceptual Explanation: Lateral runout or thickness variation (often referred to as
warped rotors) causes the pads to push back against the pistons, resulting in a pulsation
felt at the brake pedal.
6. Which component is responsible for preventing rear wheel lock-up during hard braking on
a vehicle without ABS?
A. Combination valve switch
B. Metering valve
C. Residual pressure valve
CERTIFICATION EXAM QUESTIONS
WITH VERIFIED ANSWERS
1. What is the primary purpose of a dual-reservoir master cylinder in a hydraulic brake
system?
A. To separate the front and rear hydraulic circuits for safety
B. To provide power assist when the engine is off
C. To increase the boiling point of the brake fluid
D. To automatically adjust the brake shoe clearance
Answer: A
Conceptual Explanation: A dual-reservoir master cylinder uses two separate hydraulic
circuits, typically splitting front and rear, so that if one circuit fails, the other can still
provide braking capability.
2. Which type of brake fluid is silicone-based and does not mix with water?
A. DOT 3
B. DOT 5
C. DOT 4
,D. DOT 5.1
Answer: B
Conceptual Explanation: DOT 5 brake fluid is silicone-based, purple in color, and
hydrophobic (does not mix with water). DOT 3, 4, and 5.1 are glycol-based and absorb
moisture.
3. During a brake inspection, you find that one front disc brake pad is worn down significantly
more than the other pad on the same wheel. What is the most likely cause?
A. Master cylinder internal leakage
B. Air trapped in the brake lines
C. Worn caliper slide pins or stuck caliper slides
D. Defective proportioning valve
Answer: C
Conceptual Explanation: Uneven pad wear between the inner and outer pads on the same
caliper is usually caused by seized, binding, or improperly lubricated caliper slide pins or
abutments.
4. What tool should be used to measure brake rotor thickness variation?
A. Feeler gauge
B. Dial indicator
C. Vernier caliper
, D. Outside micrometer
Answer: D
Conceptual Explanation: An outside micrometer is required to accurately measure rotor
thickness at multiple points around the circumference to check for thickness variation.
5. A customer complains of a pulsating brake pedal when stopping from highway speeds.
What is the most likely cause?
A. Low brake fluid level
B. Seized wheel cylinder
C. Warped or excessively thick-varied brake rotors
D. Glazed drum brake linings
Answer: C
Conceptual Explanation: Lateral runout or thickness variation (often referred to as
warped rotors) causes the pads to push back against the pistons, resulting in a pulsation
felt at the brake pedal.
6. Which component is responsible for preventing rear wheel lock-up during hard braking on
a vehicle without ABS?
A. Combination valve switch
B. Metering valve
C. Residual pressure valve
