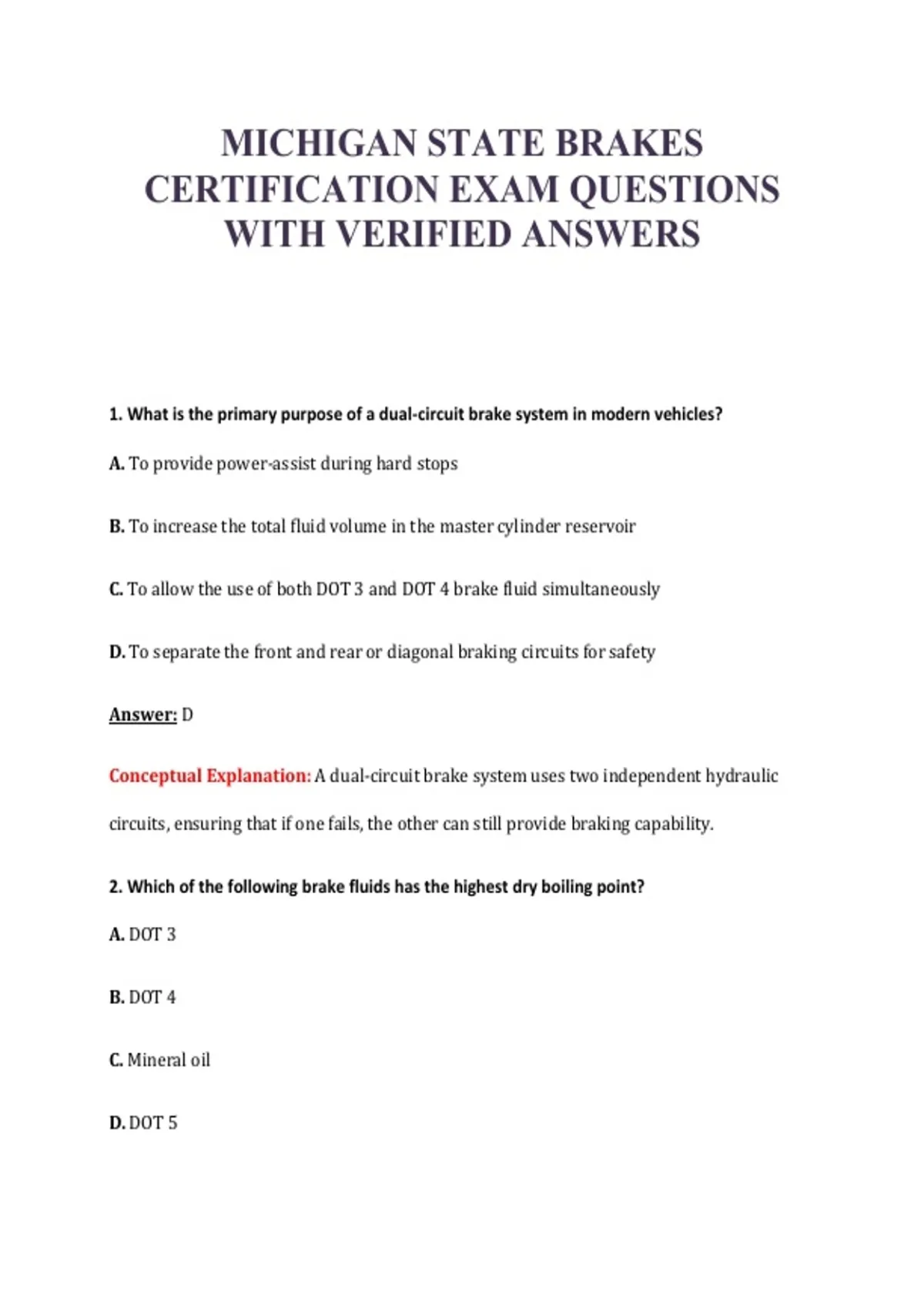

MICHIGAN STATE BRAKES
CERTIFICATION EXAM QUESTIONS
WITH VERIFIED ANSWERS
1. What is the primary purpose of a dual-circuit brake system in modern vehicles?
A. To provide power-assist during hard stops
B. To increase the total fluid volume in the master cylinder reservoir
C. To allow the use of both DOT 3 and DOT 4 brake fluid simultaneously
D. To separate the front and rear or diagonal braking circuits for safety
Answer: D
Conceptual Explanation: A dual-circuit brake system uses two independent hydraulic
circuits, ensuring that if one fails, the other can still provide braking capability.
2. Which of the following brake fluids has the highest dry boiling point?
A. DOT 3
B. DOT 4
C. Mineral oil
D. DOT 5
,Answer: D
Conceptual Explanation: DOT 5 silicone-based brake fluid typically has the highest dry
boiling point among conventional automotive brake fluids.
3. What causes ‘brake fade’ during heavy or continuous braking?
A. Excessive moisture absorption in the master cylinder
B. Failure of the power brake booster check valve
C. Air bubbles forming only in the rear brake lines
D. Loss of friction due to extreme heat buildup in the pads and rotors
Answer: D
Conceptual Explanation: Brake fade occurs when excessive heat reduces the friction
coefficient of the brake pads and rotors, decreasing braking efficiency.
4. When inspecting a disc brake rotor, what tool is used to measure parallelism and thickness
variation?
A. Dial indicator
B. Vernier caliper for depth
C. Outside micrometer
D. Torque angle gauge
Answer: C
, Conceptual Explanation: An outside micrometer is used to measure rotor thickness at
multiple points around the circumference to check for parallelism and variation.
5. What is the function of the proportioning valve in a hydraulic braking system?
A. To increase fluid pressure to the front discs during panic stops
B. To bleed air automatically from the ABS modulator
C. To limit hydraulic pressure to the rear brakes to prevent premature lockup
D. To maintain a constant residual pressure in drum brake lines
Answer: C
Conceptual Explanation: The proportioning valve limits pressure to the rear brakes
during heavy braking to prevent the rear wheels from locking up before the front wheels.
6. Which type of brake fluid is hygroscopic?
A. DOT 5 silicone
B. Synthetic transmission fluid
C. Petroleum-based hydraulic fluid
D. Glycol-based fluids like DOT 3 and DOT 4
Answer: D
Conceptual Explanation: Glycol-based brake fluids (DOT 3, DOT 4, and DOT 5.1) are
hygroscopic, meaning they absorb moisture from the atmosphere over time.
