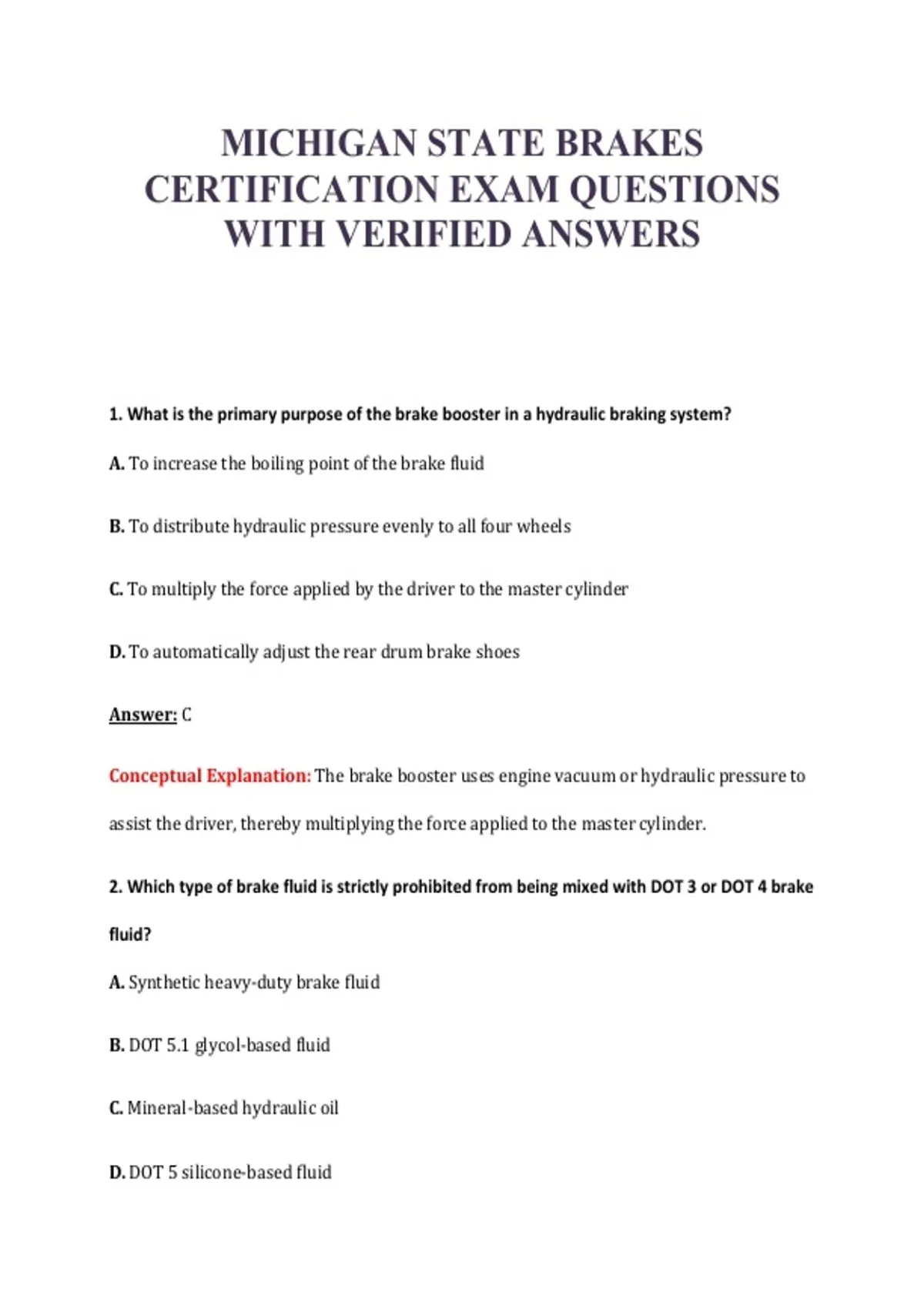

MICHIGAN STATE BRAKES
CERTIFICATION EXAM QUESTIONS
WITH VERIFIED ANSWERS
1. What is the primary purpose of the brake booster in a hydraulic braking system?
A. To increase the boiling point of the brake fluid
B. To distribute hydraulic pressure evenly to all four wheels
C. To multiply the force applied by the driver to the master cylinder
D. To automatically adjust the rear drum brake shoes
Answer: C
Conceptual Explanation: The brake booster uses engine vacuum or hydraulic pressure to
assist the driver, thereby multiplying the force applied to the master cylinder.
2. Which type of brake fluid is strictly prohibited from being mixed with DOT 3 or DOT 4 brake
fluid?
A. Synthetic heavy-duty brake fluid
B. DOT 5.1 glycol-based fluid
C. Mineral-based hydraulic oil
D. DOT 5 silicone-based fluid
,Answer: D
Conceptual Explanation: DOT 5 is silicone-based and is not compatible with glycol-based
fluids like DOT 3, 4, or 5.1, as mixing them can cause system failure and seal damage.
3. When inspecting a disc brake rotor, excessive lateral runout will most likely cause which of
the following conditions?
A. Brake pedal pulsation and steering wheel vibration
B. Spongy brake pedal feel
C. Total loss of hydraulic pressure
D. Delayed brake engagement
Answer: A
Conceptual Explanation: Lateral runout causes the rotor to wobble as it turns, pushing
the brake pads back and forth, resulting in pedal pulsation and vibration.
4. What is the function of the proportioning valve in a dual-circuit hydraulic braking system?
A. To isolate the front and rear hydraulic circuits
B. To warn the driver of low brake fluid levels
C. To reduce hydraulic pressure to the rear brakes during hard stops to prevent lockup
D. To maintain residual pressure in the drum brake lines
Answer: C
, Conceptual Explanation: The proportioning valve limits pressure to the rear brakes
during heavy braking, preventing premature rear wheel lockup due to weight transfer.
5. A customer complains of a spongy brake pedal. Technician A says this is caused by air in the
hydraulic lines. Technician B says it is caused by a seized caliper slide pin. Who is correct?
A. Technician A only
B. Technician B only
C. Both Technician A and Technician B
D. Neither Technician A nor Technician B
Answer: A
Conceptual Explanation: Air is compressible, which causes a spongy or soft brake pedal. A
seized slide pin typically causes uneven pad wear or pulling, not a spongy pedal.
6. What is the minimum safe thickness of a brake rotor usually stamped or indicated on?
A. The brake caliper mounting bracket
B. The inside of the master cylinder reservoir cap
C. The sidewall of the tire
D. The center hub or outer edge of the rotor
Answer: D
Conceptual Explanation: Manufacturers stamp the minimum thickness specification
directly onto the rotor, typically on the non-friction surface near the hub or outer edge.
