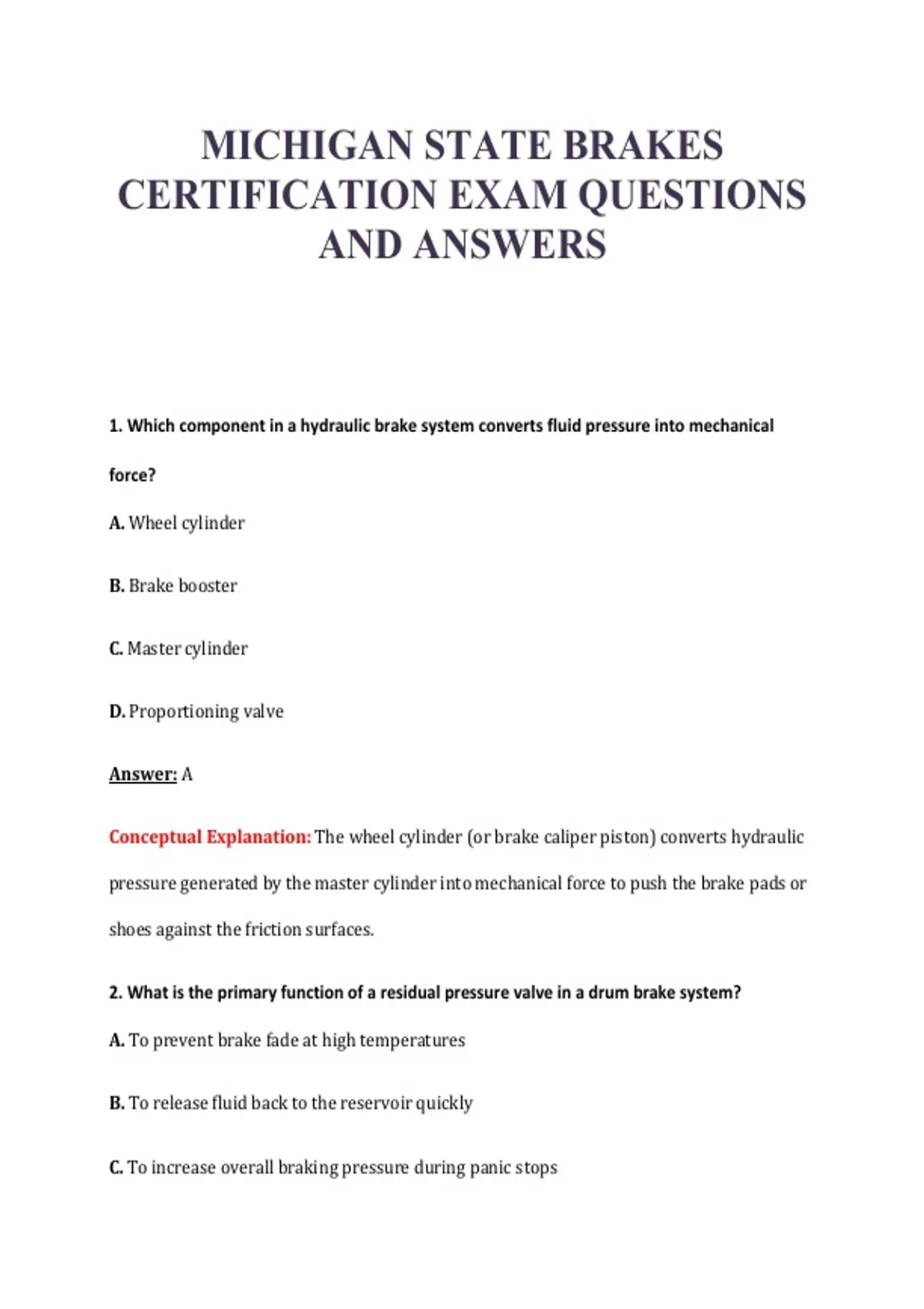

MICHIGAN STATE BRAKES
CERTIFICATION EXAM QUESTIONS
AND ANSWERS
1. Which component in a hydraulic brake system converts fluid pressure into mechanical
force?
A. Wheel cylinder
B. Brake booster
C. Master cylinder
D. Proportioning valve
Answer: A
Conceptual Explanation: The wheel cylinder (or brake caliper piston) converts hydraulic
pressure generated by the master cylinder into mechanical force to push the brake pads or
shoes against the friction surfaces.
2. What is the primary function of a residual pressure valve in a drum brake system?
A. To prevent brake fade at high temperatures
B. To release fluid back to the reservoir quickly
C. To increase overall braking pressure during panic stops
,D. To maintain a slight pressure in the lines to keep air from entering
Answer: D
Conceptual Explanation: A residual pressure valve maintains a low, constant pressure
(typically 2-10 psi) in the brake lines for drum brakes to prevent air from entering the
system past the wheel cylinder cups.
3. A customer complains of a spongy brake pedal. Technician A says this is likely due to air in
the hydraulic system. Technician B says it could be caused by a swollen brake hose. Who is
correct?
A. Both Technician A and Technician B
B. Technician B only
C. Technician A only
D. Neither Technician A nor Technician B
Answer: A
Conceptual Explanation: Both conditions can cause a spongy pedal. Air is compressible,
leading to sponginess, and a degraded or swollen brake hose will expand under pressure
instead of transferring it to the calipers.
4. When servicing an anti-lock braking system (ABS), what safety precaution must be taken
before opening the high-pressure accumulator circuit?
A. Disconnect the battery and depress the brake pedal 20-40 times to bleed stored
pressure
, B. Drain all brake fluid from the master cylinder reservoir
C. Warm up the engine to operating temperature
D. Remove the ABS control module fuse only
Answer: A
Conceptual Explanation: High-pressure accumulators store significant hydraulic energy
even with the engine off. Depressing the brake pedal repeatedly with the ignition off
relieves this stored pressure.
5. Which type of DOT brake fluid is silicone-based and does not mix with water?
A. DOT 5
B. DOT 4
C. DOT 3
D. DOT 5.1
Answer: A
Conceptual Explanation: DOT 5 is silicone-based, purple in color, and hydrophobic (does
not absorb water). DOT 3, 4, and 5.1 are glycol-based and absorb moisture.
6. A vehicle pulls to the left when the brakes are applied. Which of the following is the least
likely cause?
A. Contaminated right rear brake lining
B. Collapsed left front flexible brake hose
