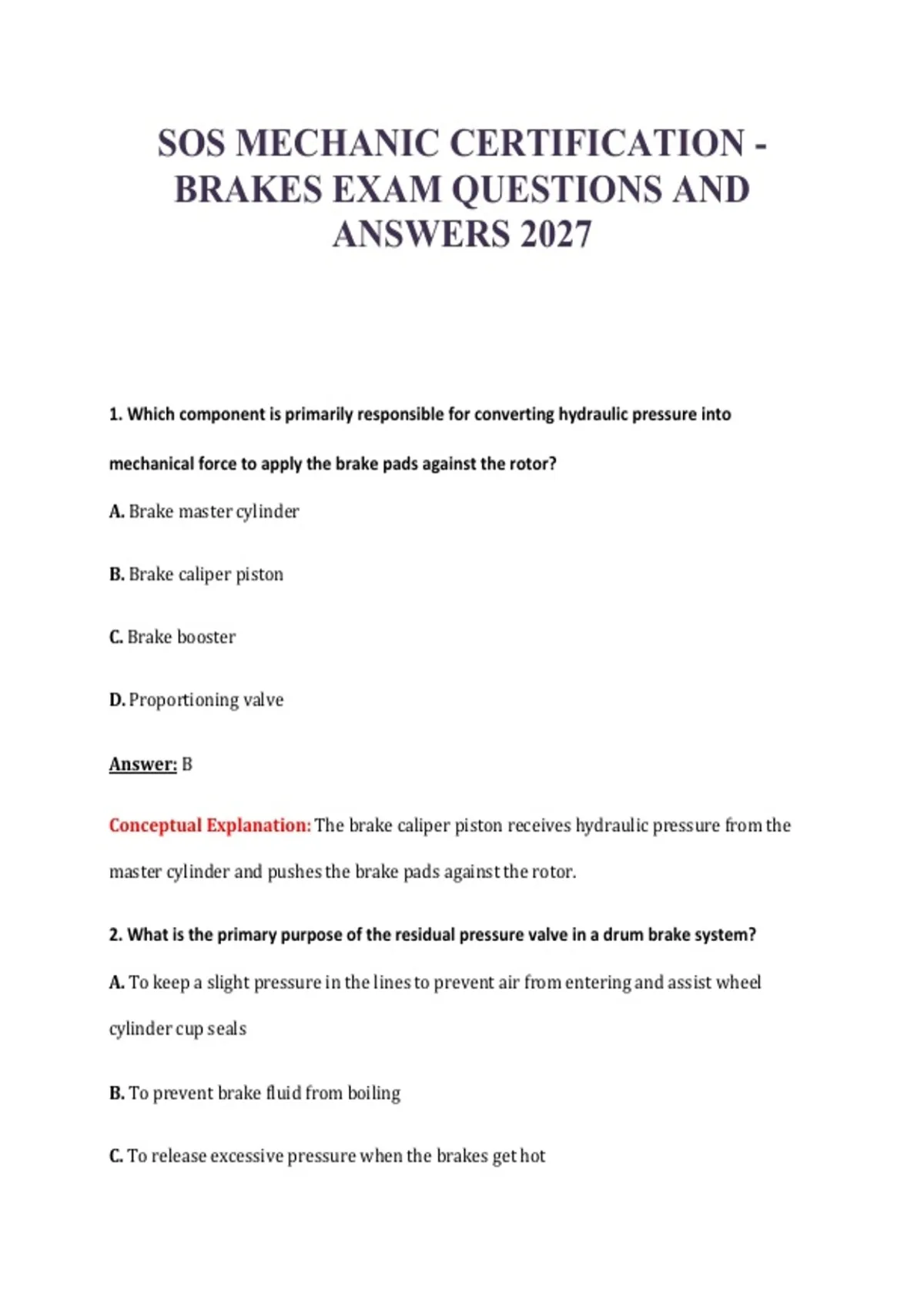

SOS MECHANIC CERTIFICATION -
BRAKES EXAM QUESTIONS AND
ANSWERS 2027
1. Which component is primarily responsible for converting hydraulic pressure into
mechanical force to apply the brake pads against the rotor?
A. Brake master cylinder
B. Brake caliper piston
C. Brake booster
D. Proportioning valve
Answer: B
Conceptual Explanation: The brake caliper piston receives hydraulic pressure from the
master cylinder and pushes the brake pads against the rotor.
2. What is the primary purpose of the residual pressure valve in a drum brake system?
A. To keep a slight pressure in the lines to prevent air from entering and assist wheel
cylinder cup seals
B. To prevent brake fluid from boiling
C. To release excessive pressure when the brakes get hot
,D. To increase pedal effort during heavy braking
Answer: A
Conceptual Explanation: The residual pressure valve maintains a small amount of
pressure (usually 4-10 psi) in the hydraulic lines to keep the wheel cylinder cups expanded
and prevent air entry.
3. Which type of brake fluid is strictly non-hygroscopic and silicone-based?
A. DOT 5
B. DOT 4
C. DOT 3
D. DOT 5.1
Answer: A
Conceptual Explanation: DOT 5 is a silicone-based fluid that does not absorb water (non-
hygroscopic), unlike glycol-based DOT 3, 4, and 5.1 fluids.
4. During a brake inspection, you notice uneven inner and outer pad wear on a floating
caliper. What is the most likely cause?
A. Warped brake rotor
B. Air in the hydraulic lines
C. Defective master cylinder primary seal
D. Seized or sticky caliper slide pins
, Answer: D
Conceptual Explanation: Sticky or seized slide pins prevent the floating caliper from
moving properly, causing uneven pressure and uneven wear between the inner and outer
pads.
5. What is the function of the low vacuum sensor in a hydro-boost braking system?
A. It operates a warning light if power steering pump pressure drops below a safe
threshold
B. It controls the anti-lock brake pump motor
C. It measures brake fluid level in the reservoir
D. It regulates hydraulic pressure to the rear wheels
Answer: A
Conceptual Explanation: Hydro-boost systems use power steering pressure rather than
vacuum; a low pressure sensor activates the red brake warning light if pressure falls.
6. When performing a lateral runout measurement on a brake rotor, which tool should be
used?
A. Dial indicator with a magnetic base
B. Outside micrometer
C. Vernier caliper
D. Torque angle gauge
