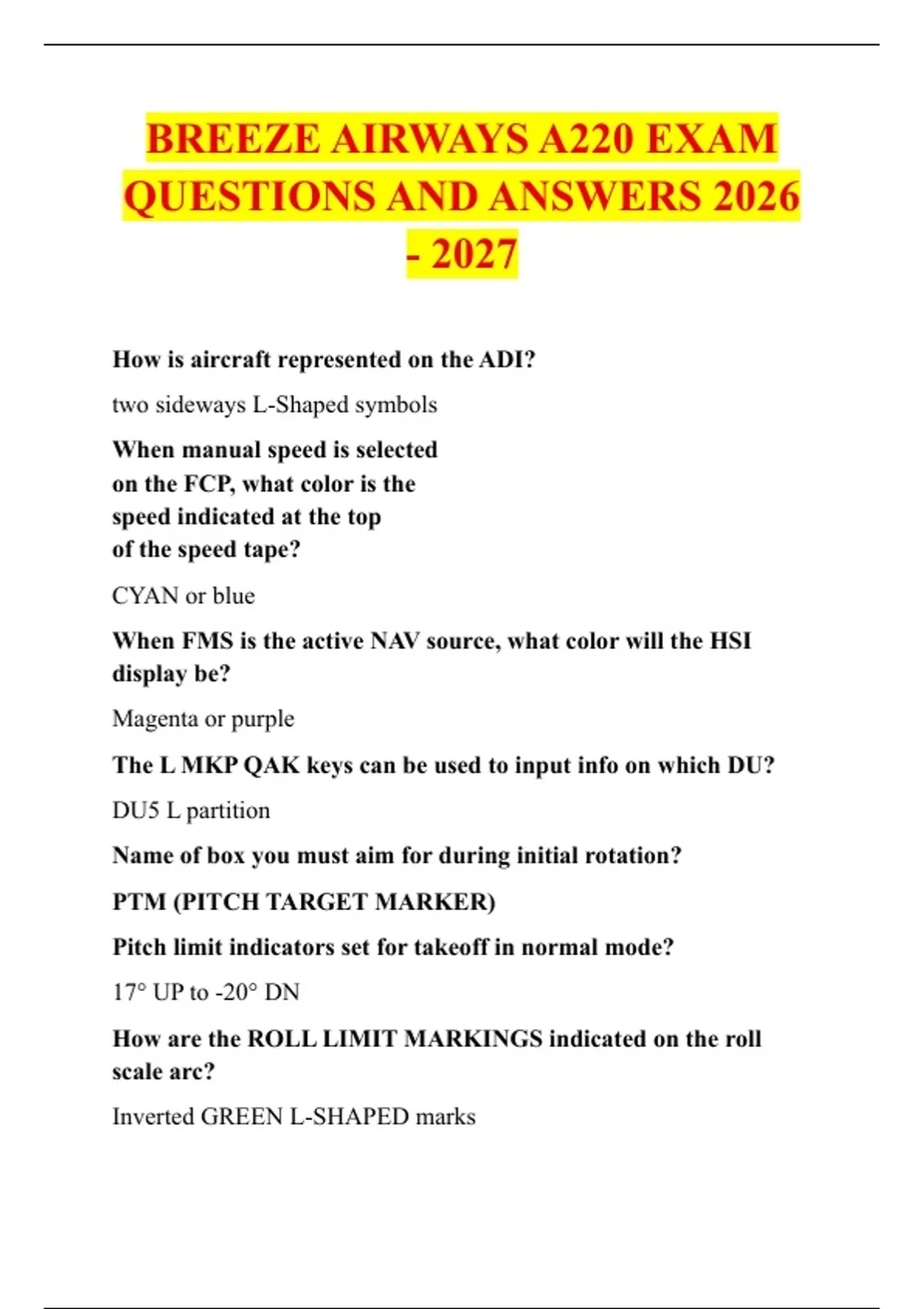

BREEZE AIRWAYS A220 EXAM
QUESTIONS AND ANSWERS 2026
- 2027
How is aircraft represented on the ADI?
two sideways L-Shaped symbols
When manual speed is selected
on the FCP, what color is the
speed indicated at the top
of the speed tape?
CYAN or blue
When FMS is the active NAV source, what color will the HSI
display be?
Magenta or purple
The L MKP QAK keys can be used to input info on which DU?
DU5 L partition
Name of box you must aim for during initial rotation?
PTM (PITCH TARGET MARKER)
Pitch limit indicators set for takeoff in normal mode?
17° UP to -20° DN
How are the ROLL LIMIT MARKINGS indicated on the roll
scale arc?
Inverted GREEN L-SHAPED marks
,How does the BETA index display on the PFD? Purpose? How
does the display change with FLAPS extended/retracted?
Green Trapezoid under the the FPV that appears during OEI
Provides guidance for roll input & yaw compensation with OEI
Flaps extended: beta index filled green trapezoid
Flaps retracted: beta index unfilled green trapezoid
What happens to the PFD when the aircraft attitude exceeds pitch
30° NU, or 20° ND or bank angle exceeds 60°
it declutters
When your PFD has decluttered, what parameters are required to
restore
your PFD to normal settings?
Pitch to be between 25° NU % 15° ND & bank to be less than 60°
When the FPV is in the CAGE mode, how is it indicated?
Bottom FPV becomes flat like a box. Also, smaller normal looking
FPV that shows drift from wind (ghosted FPV)
Whats it mean when the FPV is indicated in green dashed lines
and to the side of the ADI?
NON-CONFORMAL
How do you turn on Cage Mode for FPV?
CTP, TUNE/MENU key, top right LSK
Avionic synoptic page, CTP tab
How is acceleration cue indicated on the ADI?
Green pointer on the left wing of FPV
,Each tick mark on speed error tape?
5 KTS
What is the MAX indication possible to see on the speed error
tape?
15 KTS
What does the airspeed trend vector indicate?
Airspeed in 10 seconds,
if current acceleration is maintained
Which speeds are normally displayed at the bottom of the
airspeed tape upon entering them in the FMS?
V1, VR, V2
How is the best lift/drag speed displayed on the airspeed tape?
GREEN DOT
How are the FLAP reference speeds indicated on the airspeed
tape?
F0 to F5
How is the VMIN trim indicated on the airspeed tape?
thick amber line across and along the airspeed tape
WHITE EICAS messages?
STATUS messages
Where can you find the ECL summary page?
bottom footer of the ECL summary page
What parameters are monitored for the Takeoff configuration
warning?
1. STAB TRIM, RUDDER TRIM
, 2. SIDE-STICK priority
3. FLAP setting
4. Flight SPOILER lever position
5. AUTO-PILOT
6. PARKING BRAKE
How many AIR DATA SMART PROBES? What parameters do
they provide aircraft systems?
4
Static Pressure
Pitot Pressure
Angle-Of-Attack (AOA)
Which ADSP provides data
to the L PFD?
Which ADSP provides data to the R PFD?
Which ADSP provides data to the ISI?
What is purpose of ADSP 4?
ADSP 1 Failure, what are backup sources for L PFD in order of
priority?
ADSP 2 FAILURE? R PFD
ADSP 3 FAILURE? Backup source for ISI?
