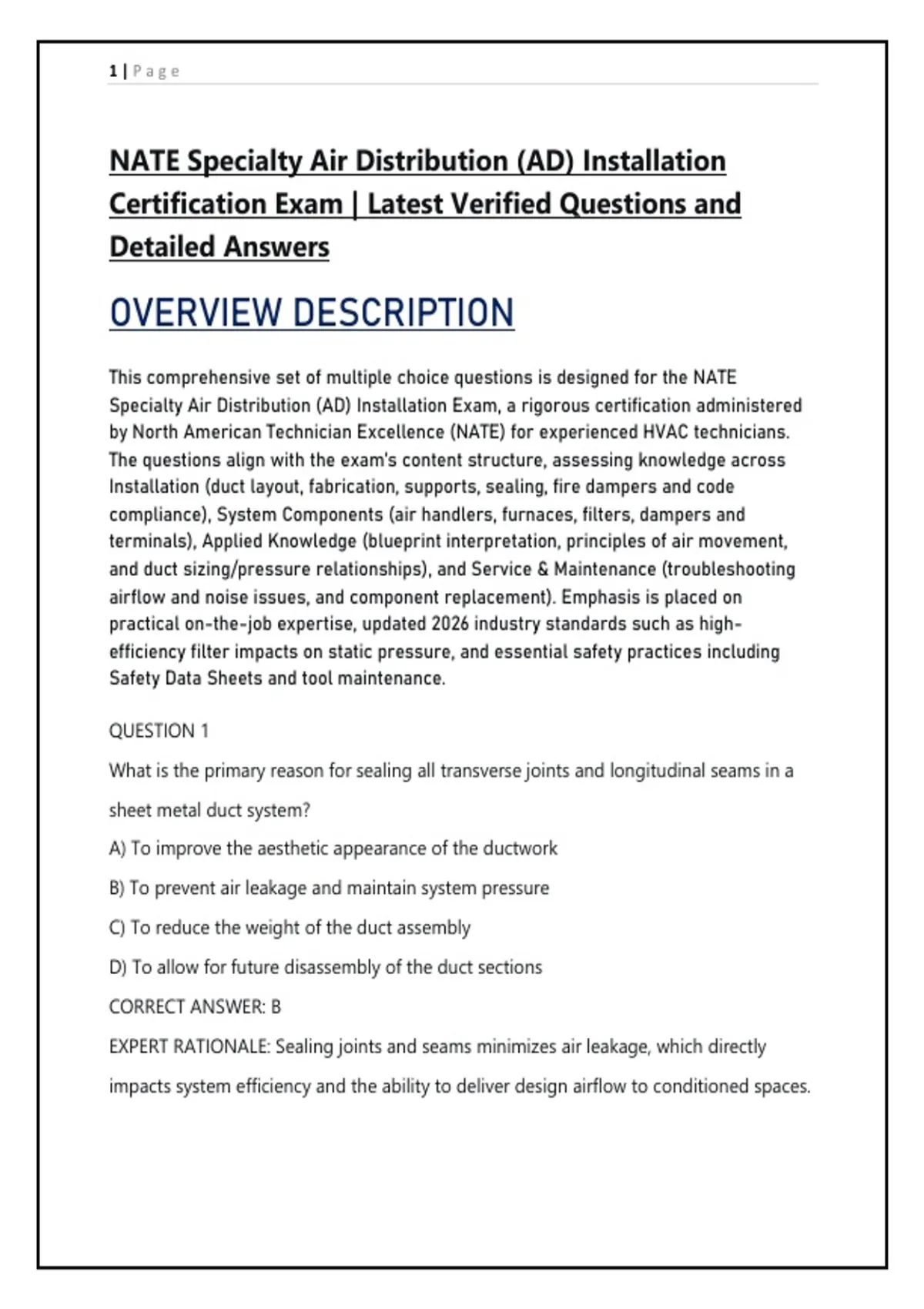

1|Page
NATE Specialty Air Distribution (AD) Installation
Certification Exam | Latest Verified Questions and
Detailed Answers
OVERVIEW DESCRIPTION
This comprehensive set of multiple choice questions is designed for the NATE
Specialty Air Distribution (AD) Installation Exam, a rigorous certification administered
by North American Technician Excellence (NATE) for experienced HVAC technicians.
The questions align with the exam’s content structure, assessing knowledge across
Installation (duct layout, fabrication, supports, sealing, fire dampers and code
compliance), System Components (air handlers, furnaces, filters, dampers and
terminals), Applied Knowledge (blueprint interpretation, principles of air movement,
and duct sizing/pressure relationships), and Service & Maintenance (troubleshooting
airflow and noise issues, and component replacement). Emphasis is placed on
practical on-the-job expertise, updated 2026 industry standards such as high-
efficiency filter impacts on static pressure, and essential safety practices including
Safety Data Sheets and tool maintenance.
QUESTION 1
What is the primary reason for sealing all transverse joints and longitudinal seams in a
sheet metal duct system?
A) To improve the aesthetic appearance of the ductwork
B) To prevent air leakage and maintain system pressure
C) To reduce the weight of the duct assembly
D) To allow for future disassembly of the duct sections
CORRECT ANSWER: B
EXPERT RATIONALE: Sealing joints and seams minimizes air leakage, which directly
impacts system efficiency and the ability to deliver design airflow to conditioned spaces.
,2|Page
QUESTION 2
When fabricating a rectangular sheet metal duct, which seam type provides the greatest
rigidity and is typically used on the longitudinal corner?
A) Snap-lock seam
B) Pittsburgh lock seam
C) Grooved seam
D) Standing seam
CORRECT ANSWER: B
EXPERT RATIONALE: The Pittsburgh lock seam is a mechanically locked corner seam that
offers high structural strength and rigidity, making it standard for rectangular duct
fabrication.
QUESTION 3
A technician is assembling a spiral round duct system. What is the recommended
maximum spacing between joints that use a slip-type coupling?
A) 4 feet
B) 8 feet
C) The length of a standard pipe section, typically 10 or 12 feet
D) 20 feet
CORRECT ANSWER: C
EXPERT RATIONALE: Spiral duct couplings are installed at the joints where standard pipe
sections meet, so spacing is determined by the manufactured pipe length.
QUESTION 4
Which type of flexible duct connector is required when connecting a duct to a vibrating
piece of equipment such as an air handler?
A) A rigid metal sleeve inside the flex duct
B) A canvas or non-metallic flexible connector
,3|Page
C) A length of non-insulated flexible duct
D) A slip joint with mastic sealant
CORRECT ANSWER: B
EXPERT RATIONALE: Canvas or non-metallic flexible connectors isolate vibration,
preventing noise transmission and stress fractures in the connected ductwork.
QUESTION 5
According to typical SMACNA standards, what is the maximum allowable sag between
hangers for a horizontally hung rectangular duct that is 24 inches wide?
A) 1/4 inch
B) 1/2 inch
C) 1 inch
D) 2 inches
CORRECT ANSWER: B
EXPERT RATIONALE: SMACNA standards generally limit sag to 1/2 inch for duct widths
up to 36 inches to maintain proper slope and prevent water accumulation.
QUESTION 6
When installing flexible duct, what is the maximum allowable compression of the inner
core before it significantly increases static pressure?
A) 5%
B) 10%
C) 20%
D) 30%
CORRECT ANSWER: A
EXPERT RATIONALE: Flex duct should not be compressed more than 5% of its fully
extended length; greater compression dramatically increases friction rate and pressure
drop.
, 4|Page
QUESTION 7
A grille is to be installed in a wall as a return air opening. Which orientation minimizes
the visibility of the duct interior?
A) Horizontal louvers angled downward
B) Horizontal louvers angled upward
C) Vertical louvers angled away from the line of sight
D) Curved blade register
CORRECT ANSWER: A
EXPERT RATIONALE: For return grilles, louvers angled downward obscure the view into
the duct, while still allowing free air passage.
QUESTION 8
Which fastener is specifically approved for connecting sheet metal duct hanger straps to
wooden structural members?
A) Drywall screws
B) Wood screws with a minimum penetration of 1 inch
C) Roofing nails
D) Rivets
CORRECT ANSWER: B
EXPERT RATIONALE: Wood screws provide adequate pull-out strength when properly
embedded; other fasteners like nails can loosen over time under vibration.
QUESTION 9
What is the primary purpose of a duct liner installed inside a sheet metal supply duct?
A) To prevent condensation on the outside of the duct
B) To reduce thermal loss and attenuate noise
C) To increase the structural rigidity of the duct
D) To prevent air leakage at joints
