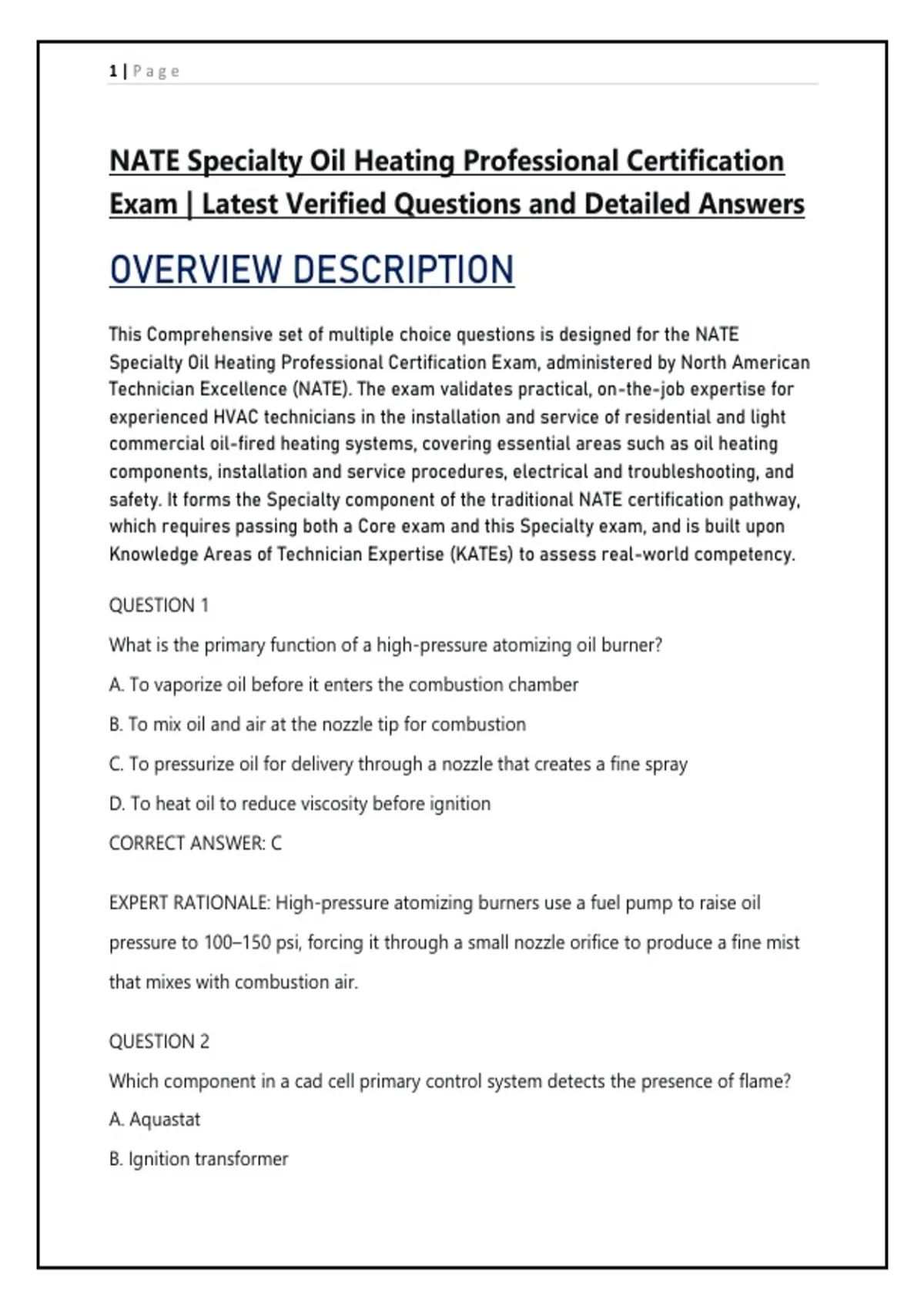

1|Page
NATE Specialty Oil Heating Professional Certification
Exam | Latest Verified Questions and Detailed Answers
OVERVIEW DESCRIPTION
This Comprehensive set of multiple choice questions is designed for the NATE
Specialty Oil Heating Professional Certification Exam, administered by North American
Technician Excellence (NATE). The exam validates practical, on-the-job expertise for
experienced HVAC technicians in the installation and service of residential and light
commercial oil-fired heating systems, covering essential areas such as oil heating
components, installation and service procedures, electrical and troubleshooting, and
safety. It forms the Specialty component of the traditional NATE certification pathway,
which requires passing both a Core exam and this Specialty exam, and is built upon
Knowledge Areas of Technician Expertise (KATEs) to assess real-world competency.
QUESTION 1
What is the primary function of a high-pressure atomizing oil burner?
A. To vaporize oil before it enters the combustion chamber
B. To mix oil and air at the nozzle tip for combustion
C. To pressurize oil for delivery through a nozzle that creates a fine spray
D. To heat oil to reduce viscosity before ignition
CORRECT ANSWER: C
EXPERT RATIONALE: High-pressure atomizing burners use a fuel pump to raise oil
pressure to 100–150 psi, forcing it through a small nozzle orifice to produce a fine mist
that mixes with combustion air.
QUESTION 2
Which component in a cad cell primary control system detects the presence of flame?
A. Aquastat
B. Ignition transformer
,2|Page
C. Cadmium sulfide cell
D. Stack relay
CORRECT ANSWER: C
EXPERT RATIONALE: The cad cell (cadmium sulfide photocell) changes resistance when
exposed to light, allowing the primary control to monitor flame by sensing the burner’s
light output.
QUESTION 3
A burner motor hums but does not start. What is the most likely cause?
A. Open cad cell
B. Defective fuel pump
C. Failed motor start capacitor
D. Clogged nozzle filter
CORRECT ANSWER: C
EXPERT RATIONALE: A humming motor that doesn’t rotate usually indicates a failed
start capacitor, which prevents the necessary phase shift to create starting torque.
QUESTION 4
What is the typical voltage supplied to the ignition transformer during burner
operation?
A. 24 VAC
B. 120 VAC
C. 240 VAC
D. 12 VDC
CORRECT ANSWER: B
,3|Page
EXPERT RATIONALE: Residential and light commercial oil burner ignition transformers
are powered by 120 VAC from the burner motor circuit, stepped up to 10,000–14,000
volts secondary.
QUESTION 5
Which tool is used to measure the smoke content in oil burner flue gases?
A. Combustion analyzer
B. Manometer
C. Smoke pump
D. Draft gauge
CORRECT ANSWER: C
EXPERT RATIONALE: A Bacharach-style manual smoke pump draws a fixed volume of
flue gas through filter paper; the resulting spot is compared to a scale to determine
smoke number.
QUESTION 6
What is the minimum indoor combustion air opening size for an oil-fired appliance in a
confined space per NFPA 31?
A. 1 sq in per 1,000 Btu/h input
B. 1 sq in per 5,000 Btu/h input
C. 1 sq in per 2,000 Btu/h input
D. 1 sq in per 10,000 Btu/h input
CORRECT ANSWER: B
EXPERT RATIONALE: NFPA 31 requires at least 1 square inch of free area per 5,000 Btu/h
of total appliance input for indoor combustion air openings in confined spaces.
, 4|Page
QUESTION 7
What is the purpose of a barometric draft regulator?
A. To increase chimney draft during startup
B. To maintain a constant over-fire draft
C. To prevent flue gas condensation
D. To seal the chimney when the burner is off
CORRECT ANSWER: B
EXPERT RATIONALE: A barometric damper modulates to admit room air into the
chimney, stabilizing draft and maintaining consistent over-fire pressure despite varying
chimney conditions.
QUESTION 8
Which oil burner nozzle spray pattern is most commonly used in older combustion
chambers originally designed for natural draft?
A. Solid cone
B. Hollow cone
C. Semi-solid cone
D. Flat spray
CORRECT ANSWER: B
EXPERT RATIONALE: Hollow cone nozzles produce an air core with a ring of oil droplets,
matching the flame shape required by many legacy refractory chambers to prevent
impingement.
QUESTION 9
What is the typical stack temperature range for a properly tuned residential oil burner
with a conventional furnace?
A. 200°F – 300°F
