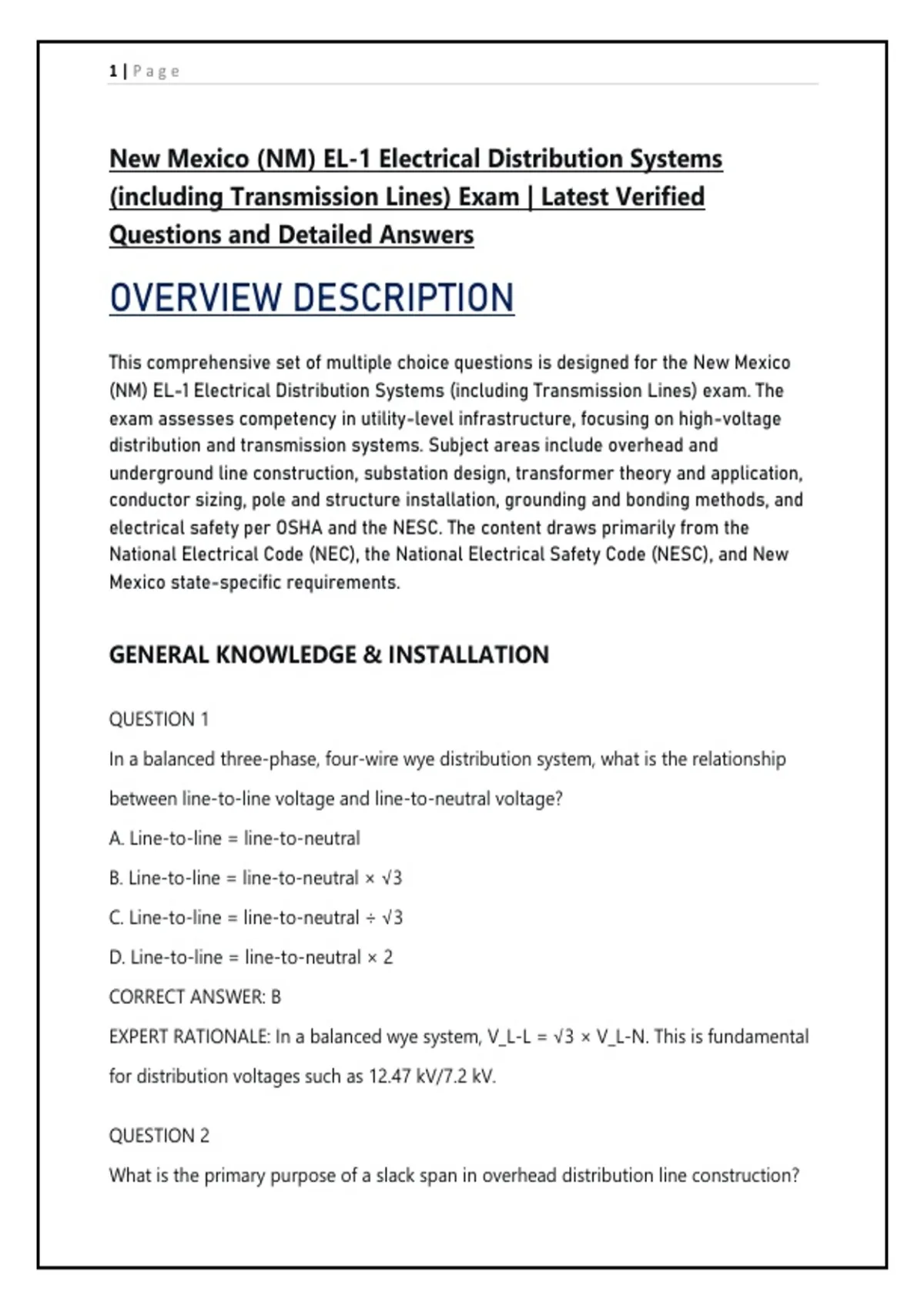

1|Page
New Mexico (NM) EL-1 Electrical Distribution Systems
(including Transmission Lines) Exam | Latest Verified
Questions and Detailed Answers
OVERVIEW DESCRIPTION
This comprehensive set of multiple choice questions is designed for the New Mexico
(NM) EL-1 Electrical Distribution Systems (including Transmission Lines) exam. The
exam assesses competency in utility-level infrastructure, focusing on high-voltage
distribution and transmission systems. Subject areas include overhead and
underground line construction, substation design, transformer theory and application,
conductor sizing, pole and structure installation, grounding and bonding methods, and
electrical safety per OSHA and the NESC. The content draws primarily from the
National Electrical Code (NEC), the National Electrical Safety Code (NESC), and New
Mexico state-specific requirements.
GENERAL KNOWLEDGE & INSTALLATION
QUESTION 1
In a balanced three-phase, four-wire wye distribution system, what is the relationship
between line-to-line voltage and line-to-neutral voltage?
A. Line-to-line = line-to-neutral
B. Line-to-line = line-to-neutral × √3
C. Line-to-line = line-to-neutral ÷ √3
D. Line-to-line = line-to-neutral × 2
CORRECT ANSWER: B
EXPERT RATIONALE: In a balanced wye system, V_L-L = √3 × V_L-N. This is fundamental
for distribution voltages such as 12.47 kV/7.2 kV.
QUESTION 2
What is the primary purpose of a slack span in overhead distribution line construction?
,2|Page
A. Reduce tension on dead-end structures
B. Provide mechanical isolation between different conductor sizes
C. Allow for thermal expansion without excessive sag
D. Maintain clearance over communication circuits at mid-span
CORRECT ANSWER: A
EXPERT RATIONALE: A slack span is intentionally installed with lower tension to reduce
stress on dead-end poles where conductors terminate, preventing excessive strain on
insulators and structures.
QUESTION 3
According to the NESC, which factor most directly determines the minimum vertical
clearance of an overhead distribution conductor above ground?
A. Conductor material
B. Voltage level and area classification (e.g., pedestrian, roadway)
C. Span length
D. Ambient temperature at time of installation
CORRECT ANSWER: B
EXPERT RATIONALE: NESC Table 232-1 provides required clearances based on voltage
and the nature of the surface crossed (roads, driveways, etc.). Area classification is the
primary driver.
QUESTION 4
What is the typical nominal voltage for a single-phase distribution transformer
secondary serving residential customers in New Mexico?
A. 120 V
B. 240 V
C. 120/240 V split-phase
D. 277/480 V
,3|Page
CORRECT ANSWER: C
EXPERT RATIONALE: Common U.S. residential service is 120/240 V, three-wire
single-phase. New Mexico follows the same standard.
QUESTION 5
In a purely resistive AC circuit, the power factor is:
A. 0
B. 0.5 leading
C. 0.5 lagging
D. 1.0
CORRECT ANSWER: D
EXPERT RATIONALE: Power factor = cos(θ). For a resistive load, voltage and current are
in phase, so θ=0° and power factor = 1.0 (unity).
QUESTION 6
Which of the following is a characteristic of an effectively grounded distribution system?
A. Zero-sequence reactance is very high
B. Phase-to-ground fault current is at least 60% of three-phase fault current
C. The neutral is ungrounded
D. Only single-phase loads can be served
CORRECT ANSWER: B
EXPERT RATIONALE: By definition (NESC/IEEE), effectively grounded means X0/X1 ≤ 3
and R0/X1 ≤ 1, ensuring high ground-fault current, typically 60-80% of three-phase
value.
QUESTION 7
What does the abbreviation “SIL” stand for in transmission line engineering?
A. Surge Impedance Loading
, 4|Page
B. Standard Insulation Level
C. Short-circuit Interrupting Limit
D. Structural Installation Limit
CORRECT ANSWER: A
EXPERT RATIONALE: SIL is the load at which a line’s reactive power generation equals its
absorption, a key parameter for voltage regulation in high-voltage transmission.
QUESTION 8
When installing a new distribution circuit, the term “phasing out” refers to:
A. Verifying correct phase sequence and identity before paralleling sources
B. Balancing single-phase taps across three phases
C. Removing one phase for maintenance
D. Checking voltage drop under load
CORRECT ANSWER: A
EXPERT RATIONALE: Phasing out ensures that phase conductors are properly matched
(A, B, C) to avoid phase-to-phase faults when tying circuits together.
QUESTION 9
The inductive reactance of an overhead conductor depends primarily on:
A. Conductor resistance
B. Spacing between conductors and conductor radius
C. System voltage
D. Frequency and conductor length only
CORRECT ANSWER: B
EXPERT RATIONALE: Inductive reactance X_L = 2πf L, where L depends on geometric
mean distance (GMD) between conductors and geometric mean radius (GMR). Spacing
and conductor size are key.
