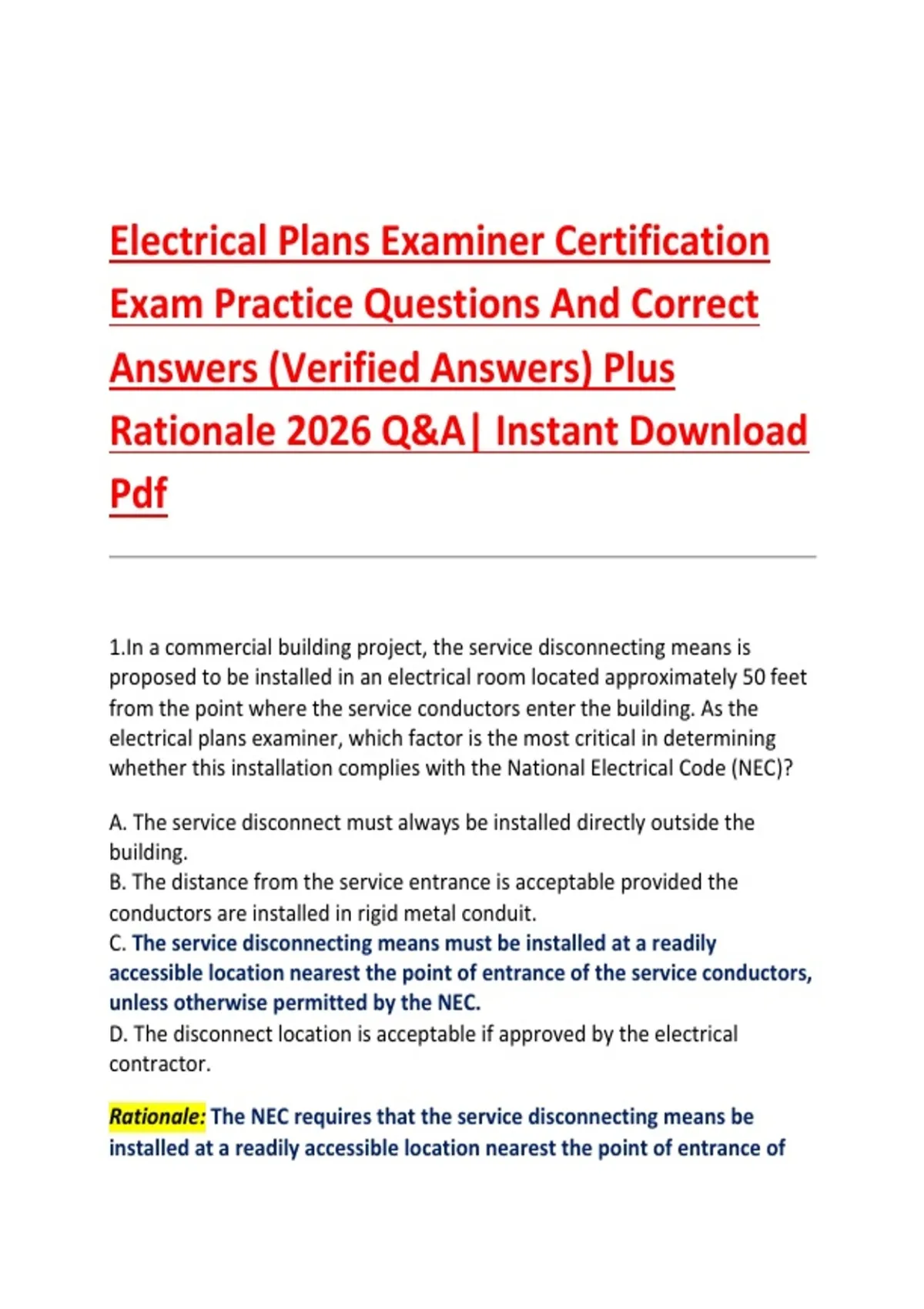

Electrical Plans Examiner Certification
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1.In a commercial building project, the service disconnecting means is
proposed to be installed in an electrical room located approximately 50 feet
from the point where the service conductors enter the building. As the
electrical plans examiner, which factor is the most critical in determining
whether this installation complies with the National Electrical Code (NEC)?
A. The service disconnect must always be installed directly outside the
building.
B. The distance from the service entrance is acceptable provided the
conductors are installed in rigid metal conduit.
C. The service disconnecting means must be installed at a readily
accessible location nearest the point of entrance of the service conductors,
unless otherwise permitted by the NEC.
D. The disconnect location is acceptable if approved by the electrical
contractor.
Rationale: The NEC requires that the service disconnecting means be
installed at a readily accessible location nearest the point of entrance of
,the service conductors into the building unless specific exceptions apply.
Plans examiners must verify compliance with these location requirements
to minimize the length of unprotected service conductors.
2. During plan review of a healthcare facility, the examiner notes that the
essential electrical system lacks separation between life safety and
critical branch wiring. What is the primary concern?
A. Excessive voltage drop.
B. Increased harmonic distortion.
C. Failure to comply with required branch separation for reliability and
patient safety.
D. Insufficient lighting levels.
Rationale: Healthcare facilities require separation of the life safety, critical,
and equipment branches to ensure reliable operation during emergencies.
Proper separation reduces the likelihood that a single failure will disable
multiple essential systems.
3. A feeder supplies a continuous load of 160 amperes and a
noncontinuous load of 70 amperes. What minimum ampacity must
the feeder conductors have?
A. 200 A
B. 270 A
C. 230 A
D. 250 A
Rationale: Continuous loads are calculated at 125 percent, while
noncontinuous loads are added at 100 percent. Therefore: (160 × 1.25) +
70 = 200 + 70 = 270 amperes.
4. An electrical room contains equipment rated over 1,200 amperes and
over 6 feet wide. Which additional feature is generally required for
personnel safety?
,A. GFCI protection.
B. Fire-rated ceiling.
C. A second means of egress under specified conditions.
D. Emergency lighting only.
Rationale: Large electrical equipment may require two means of egress to
provide a safe escape path for personnel in the event of an arc flash or
other electrical emergency.
5. While reviewing plans, the examiner notices that conductor insulation
types are not identified. Why is this information important?
A. It determines the panelboard color.
B. It identifies the circuit voltage only.
C. It establishes the conductor's temperature rating, environmental
suitability, and permitted applications.
D. It determines the breaker manufacturer's warranty.
Rationale: Conductor insulation types such as THHN, XHHW, or RHW
indicate temperature ratings, wet or dry location suitability, and other
installation limitations that affect code compliance.
6. What is the principal purpose of short-circuit current ratings (SCCR)
shown on electrical equipment?
A. To determine voltage drop.
B. To calculate power factor.
C. To verify the equipment can safely withstand the available fault current.
D. To establish grounding electrode size.
Rationale: The SCCR must equal or exceed the available fault current at the
installation point to prevent catastrophic equipment failure during a fault.
7. Which document provides the basis for determining available fault
current during plan review?
, A. Architectural elevations.
B. Lighting schedule.
C. Utility information and electrical fault current calculations.
D. HVAC specifications.
Rationale: Fault current calculations rely on utility data, transformer
characteristics, and conductor impedance. Plans examiners verify that
equipment ratings are adequate for the calculated available fault current.
8. A panelboard is installed in a clothes closet of a commercial office
building. How should the plans examiner respond?
A. Approve because commercial buildings are exempt.
B. Approve if the panel cover is lockable.
C. Reject because overcurrent devices generally are prohibited in clothes
closets.
D. Approve if GFCI breakers are installed.
Rationale: The NEC generally prohibits overcurrent devices in clothes
closets due to fire and accessibility concerns.
9. What is the primary purpose of equipment grounding conductors?
A. Carry normal load current.
B. Improve power quality.
C. Provide a low-impedance fault current path to facilitate operation of
overcurrent devices.
D. Increase conductor ampacity.
Rationale: Equipment grounding conductors provide an effective fault
current path that allows overcurrent protective devices to clear faults
rapidly, reducing shock and fire hazards.
10. Which occupancy classification generally requires emergency
illumination of means of egress?
