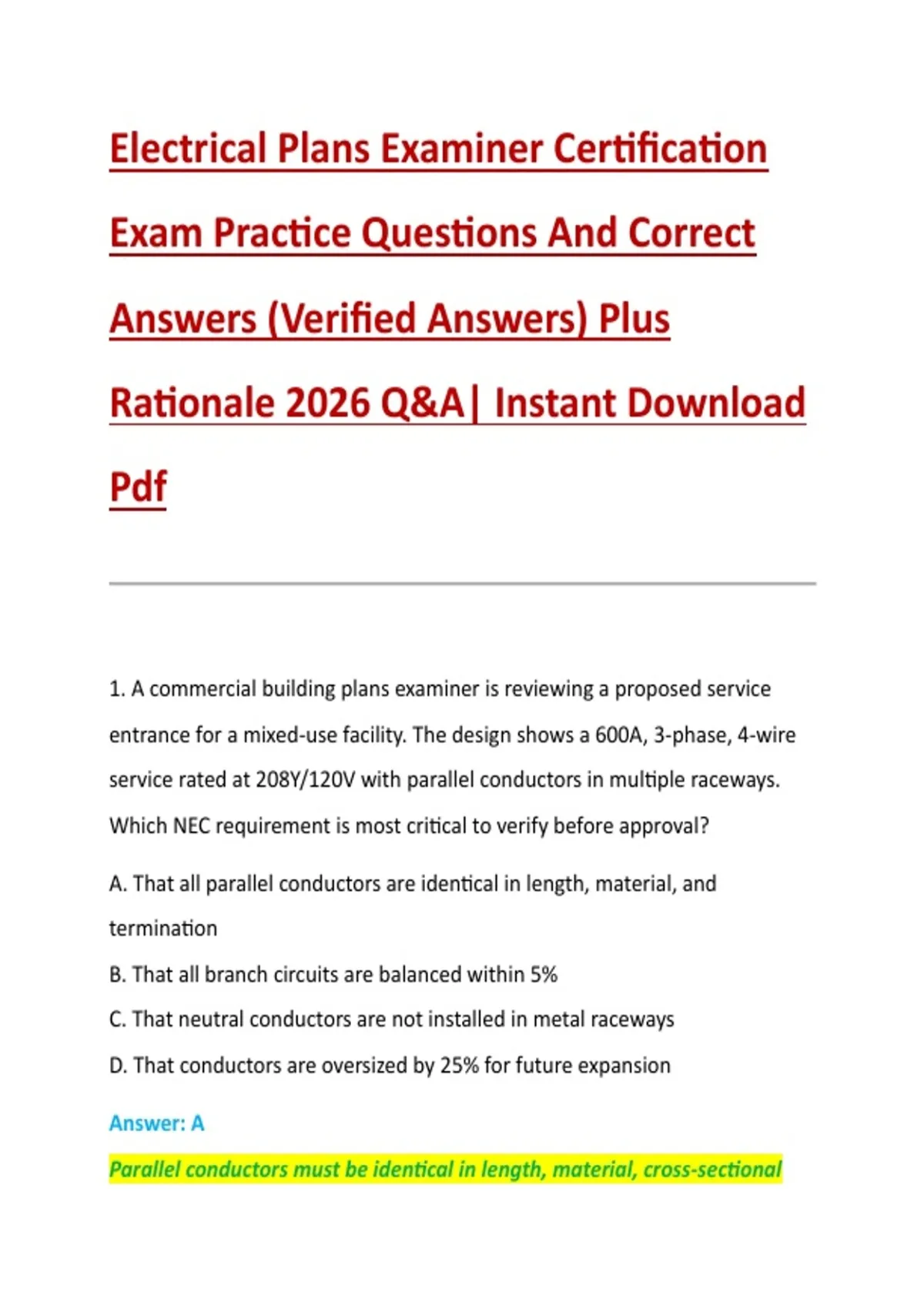

Electrical Plans Examiner Certification
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. A commercial building plans examiner is reviewing a proposed service
entrance for a mixed-use facility. The design shows a 600A, 3-phase, 4-wire
service rated at 208Y/120V with parallel conductors in multiple raceways.
Which NEC requirement is most critical to verify before approval?
A. That all parallel conductors are identical in length, material, and
termination
B. That all branch circuits are balanced within 5%
C. That neutral conductors are not installed in metal raceways
D. That conductors are oversized by 25% for future expansion
Answer: A
Parallel conductors must be identical in length, material, cross-sectional
,area, insulation type, and terminated in the same manner to ensure equal
current sharing and prevent overheating or unequal loading. This is a
fundamental NEC requirement for parallel conductor installations.
2. A plans examiner is evaluating a one-line diagram showing an
emergency generator supplying life safety loads. Which transfer switch
characteristic is required for life safety systems?
A. Open transition, non-automatic operation
B. Delayed transfer with manual bypass
C. Automatic transfer within code-defined time limits
D. Soft-loading synchronization only
Answer: C
Life safety systems require automatic transfer switches that operate
without manual intervention and restore power within NEC-mandated
time limits to ensure continuity of essential emergency loads.
3. A proposed feeder supplies multiple panelboards in a high-rise
building. The engineer has omitted overcurrent protection at the
source of the feeder. What is the primary NEC concern?
A. Voltage drop exceeding 10%
B. Lack of required conductor ampacity adjustment
C. Absence of required overcurrent protection at the feeder origin
D. Improper grounding electrode selection
,Answer: C
Feeders must be protected against overcurrent at their supply source
unless specifically permitted otherwise; omission creates a serious safety
hazard and violates fundamental NEC overcurrent protection requirements.
4. In reviewing a healthcare facility design, which wiring requirement is
most critical for patient care areas classified as essential electrical
systems?
A. Use of aluminum conductors for reduced cost
B. Isolation of essential circuits from normal power failure
C. Installation of shared neutrals for efficiency
D. Use of nonmetallic conduit throughout
Answer: B
Essential electrical systems in healthcare facilities must remain operational
during outages, requiring separation and reliability of circuits serving
critical patient care loads.
5. A commercial project includes a 480Y/277V system with grounded
neutral. Which condition would most likely indicate a violation in the
plans?
A. Neutral is solidly grounded at service equipment
B. Equipment grounding conductors are isolated from neutrals downstream
of service
C. Neutral and equipment grounding conductors are bonded in a
, downstream panelboard
D. Grounding electrode conductor is properly sized
Answer: C
Neutral and equipment grounding conductors must only be bonded at the
service disconnecting means; downstream bonding creates objectionable
current paths and violates NEC separation rules.
6. A lighting design shows continuous LED fixtures on a 20A branch
circuit. The total load is calculated at 16A. What is the key NEC concern
for the plans examiner?
A. Continuous load must not exceed 80% of circuit rating
B. LED fixtures must be individually fused
C. Lighting circuits must be 240V only
D. Neutral conductors must be doubled
Answer: A
Continuous loads must not exceed 80% of the branch circuit rating to
prevent overheating and ensure safe long-term operation under NEC
requirements.
7. A proposed installation includes PVC conduit embedded in concrete
for a feeder run. What must be verified regarding conductor
installation?
A. Conductors must be installed before concrete curing
B. Conductors must be rated for wet locations
