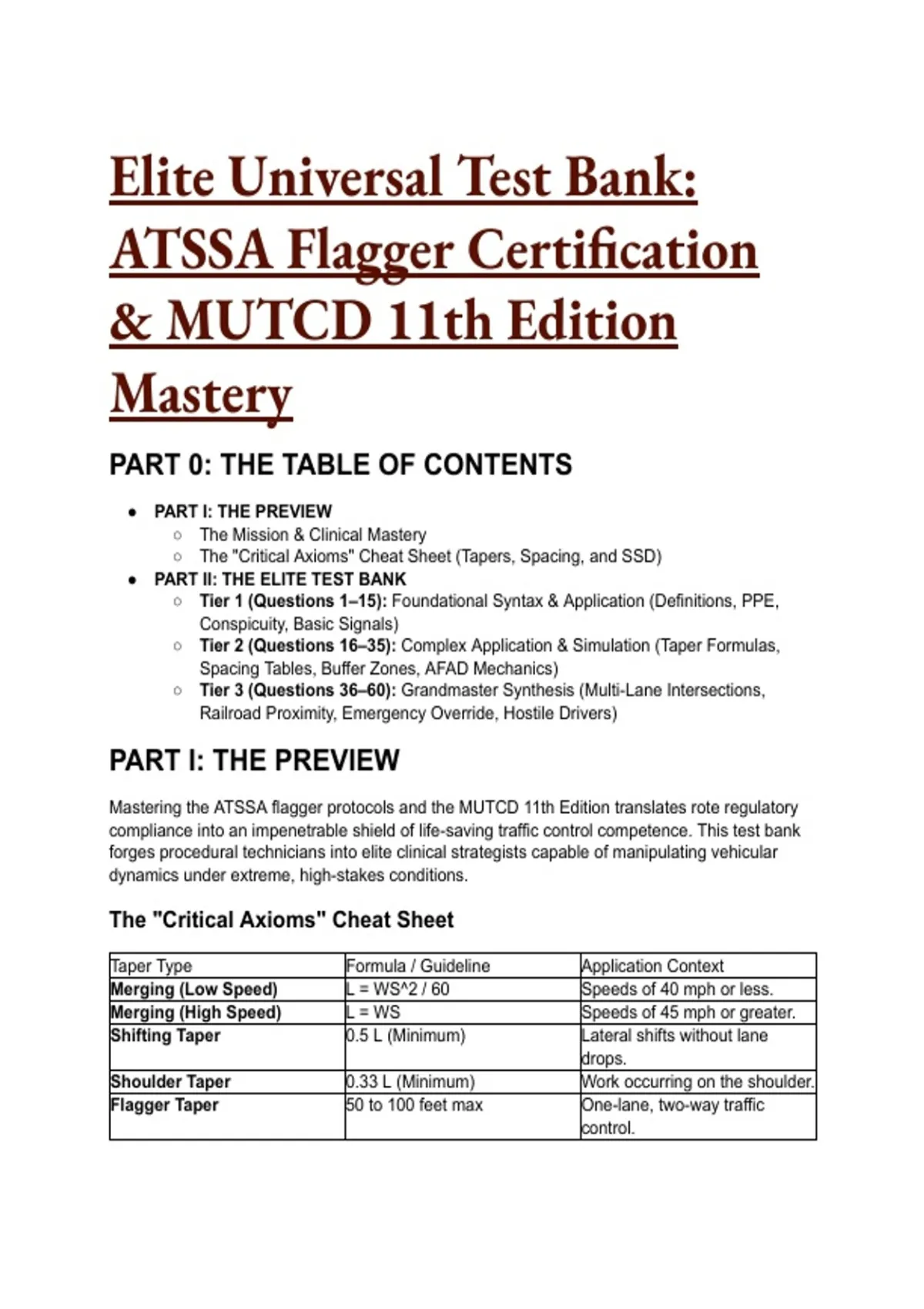

Elite Universal Test Bank:
ATSSA Flagger Certification
& MUTCD 11th Edition
Mastery
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Mission & Clinical Mastery
○ The "Critical Axioms" Cheat Sheet (Tapers, Spacing, and SSD)
● PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–15): Foundational Syntax & Application (Definitions, PPE,
Conspicuity, Basic Signals)
○ Tier 2 (Questions 16–35): Complex Application & Simulation (Taper Formulas,
Spacing Tables, Buffer Zones, AFAD Mechanics)
○ Tier 3 (Questions 36–60): Grandmaster Synthesis (Multi-Lane Intersections,
Railroad Proximity, Emergency Override, Hostile Drivers)
PART I: THE PREVIEW
Mastering the ATSSA flagger protocols and the MUTCD 11th Edition translates rote regulatory
compliance into an impenetrable shield of life-saving traffic control competence. This test bank
forges procedural technicians into elite clinical strategists capable of manipulating vehicular
dynamics under extreme, high-stakes conditions.
The "Critical Axioms" Cheat Sheet
Taper Type Formula / Guideline Application Context
Merging (Low Speed) L = WS^ Speeds of 40 mph or less.
Merging (High Speed) L = WS Speeds of 45 mph or greater.
Shifting Taper 0.5 L (Minimum) Lateral shifts without lane
drops.
Shoulder Taper 0.33 L (Minimum) Work occurring on the shoulder.
Flagger Taper 50 to 100 feet max One-lane, two-way traffic
control.
,Road Type "A" Dimension "B" Dimension "C" Dimension
Urban (Low Speed) 100 feet 100 feet 100 feet
Urban (High Speed) 350 feet 350 feet 350 feet
Rural 500 feet 500 feet 500 feet
Freeway / 1,000 feet 1,500 feet 2,640 feet
Expressway
Note: Dimensions
represent the distance
between advance
warning signs.
Speed (mph) Buffer Space / SSD (0% Grade) Buffer Space (-9% Downgrade)
25 mph 155 feet 173 feet
35 mph 250 feet 287 feet
45 mph 360 feet 427 feet
55 mph 495 feet 593 feet
Note: Buffer spaces must
remain completely empty to
absorb errant vehicle kinetic
energy.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A newly deployed flagger is preparing for a nighttime operation on a conventional rural
highway. Based on the principles of the MUTCD 11th Edition, which high-visibility safety apparel
is the ABSOLUTE MINIMUM requirement for this environment? A) ANSI Class 2 fluorescent
yellow-green vest. B) A standard orange safety vest with localized reflective striping. C) ANSI
Class 3 retroreflective safety apparel. D) Dark, weather-resistant clothing with a retroreflective
armband.
● The Answer: C (ANSI Class 3 retroreflective safety apparel)
● Distractor Analysis:
○ A is incorrect: Class 2 is insufficient for nighttime operations due to a lack of
required retroreflective surface area on the limbs.
○ B is incorrect: Standard non-ANSI vests lack the tested conspicuity standards
required to identify the flagger's biomechanical movements.
○ D is incorrect: Armbands do not meet the 1,000-foot visibility threshold mandated
for night flagging.
The Mentor's Analysis: Visibility dictates survivability in nighttime work zones. When facing
low-light conditions, the immediate priority is biomechanical recognition. By utilizing Class 3
apparel, you bypass the common trap of blending into visual clutter. Professional/Academic
Intuition: Class 3 high-visibility safety apparel is the non-negotiable minimum standard
for all nighttime flagging operations globally.
Q2: A flagger is directing traffic using a standard STOP/SLOW paddle. To properly signal traffic
to proceed, what is the MOST ACCURATE sequence of physical movements? A) Wave the
paddle aggressively back and forth across the body. B) Hold the SLOW face toward traffic and
, motion up and down with the free hand. C) Lower the paddle out of view and wave both hands
in a forward motion. D) Stand parallel to the lane, face the SLOW side to traffic, and motion
forward with the free hand.
● The Answer: D (Stand parallel to the lane, face the SLOW side to traffic, and motion
forward with the free hand)
● Distractor Analysis:
○ A is incorrect: Waving the paddle creates visual confusion and violates
standardization.
○ B is incorrect: Motioning up and down with the free hand while displaying SLOW is
the specific signal to alert and slow traffic, not to release it.
○ C is incorrect: The SLOW face must remain visible to control the approach speed of
the released queue.
The Mentor's Analysis: Clarity of instruction prevents hesitation-based collisions. When facing
a stopped queue, the immediate priority is a controlled release. By utilizing standardized
free-hand motioning, you bypass the common trap of confusing the driver's perception of
right-of-way. Professional/Academic Intuition: The paddle face dictates the rule; the free
hand dictates the action.
Q3: According to MUTCD 11th Edition Section 6D.05, when is the use of hand movements
alone (without a paddle, flag, or AFAD) legally permissible to control a one-lane, two-way traffic
operation? A) When the flagger's paddle breaks during a shift. B) During short-duration
operations lasting less than 15 minutes. C) Only when performed by emergency responders or
uniformed law enforcement officers. D) When the flagger is wearing Class 3 apparel during
daylight hours.
● The Answer: C (Only when performed by emergency responders or uniformed law
enforcement officers)
● Distractor Analysis:
○ A is incorrect: Equipment failure requires halting operations until a compliant
signaling device is secured.
○ B is incorrect: Time duration does not negate the legal requirement for a
standardized physical signaling device.
○ D is incorrect: Apparel provides conspicuity, but a device is still mandatory for
conveying authority.
The Mentor's Analysis: Unarmed hand signals lack the regulatory weight necessary to compel
driver compliance. When facing traffic control duties, the immediate priority is authoritative
signaling. By utilizing standardized devices, you bypass the common trap of driver ambiguity
and legal liability. Professional/Academic Intuition: A flagger without a regulatory device is
legally invisible; only a badge can substitute for a paddle.
Q4: During a sudden equipment malfunction in the work zone, an excavator blocks the single
open lane. The flagger only has a red warning flag available. What is the PROPER method to
halt approaching vehicles using the flag? A) Wave the flag rapidly in a figure-eight motion above
the head. B) Point the flag directly at the lead vehicle's windshield. C) Face traffic and extend
the flag staff horizontally across the lane, keeping the full flag visible. D) Drop the flag and use
both hands to form an "X" over the chest.
● The Answer: C (Face traffic and extend the flag staff horizontally across the lane,
keeping the full flag visible)
● Distractor Analysis:
○ A is incorrect: A figure-eight motion is specifically reserved for nighttime flagging
with a flashlight.
