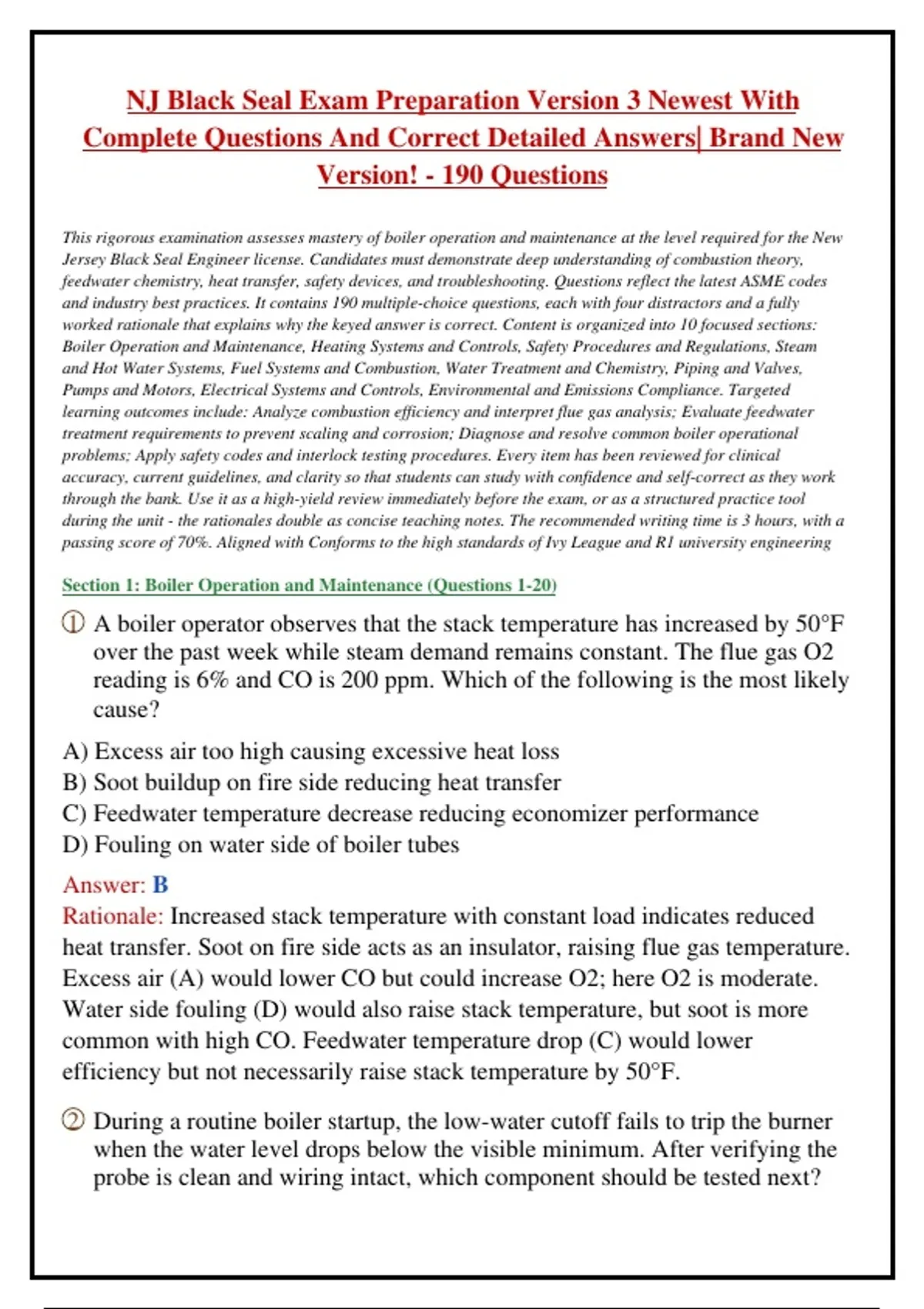

NJ Black Seal Exam Preparation Version 3 Newest With
Complete Questions And Correct Detailed Answers| Brand New
Version! - 190 Questions
This rigorous examination assesses mastery of boiler operation and maintenance at the level required for the New
Jersey Black Seal Engineer license. Candidates must demonstrate deep understanding of combustion theory,
feedwater chemistry, heat transfer, safety devices, and troubleshooting. Questions reflect the latest ASME codes
and industry best practices. It contains 190 multiple-choice questions, each with four distractors and a fully
worked rationale that explains why the keyed answer is correct. Content is organized into 10 focused sections:
Boiler Operation and Maintenance, Heating Systems and Controls, Safety Procedures and Regulations, Steam
and Hot Water Systems, Fuel Systems and Combustion, Water Treatment and Chemistry, Piping and Valves,
Pumps and Motors, Electrical Systems and Controls, Environmental and Emissions Compliance. Targeted
learning outcomes include: Analyze combustion efficiency and interpret flue gas analysis; Evaluate feedwater
treatment requirements to prevent scaling and corrosion; Diagnose and resolve common boiler operational
problems; Apply safety codes and interlock testing procedures. Every item has been reviewed for clinical
accuracy, current guidelines, and clarity so that students can study with confidence and self-correct as they work
through the bank. Use it as a high-yield review immediately before the exam, or as a structured practice tool
during the unit - the rationales double as concise teaching notes. The recommended writing time is 3 hours, with a
passing score of 70%. Aligned with Conforms to the high standards of Ivy League and R1 university engineering
Section 1: Boiler Operation and Maintenance (Questions 1-20)
1 A boiler operator observes that the stack temperature has increased by 50°F
over the past week while steam demand remains constant. The flue gas O2
reading is 6% and CO is 200 ppm. Which of the following is the most likely
cause?
A) Excess air too high causing excessive heat loss
B) Soot buildup on fire side reducing heat transfer
C) Feedwater temperature decrease reducing economizer performance
D) Fouling on water side of boiler tubes
Answer: B
Rationale: Increased stack temperature with constant load indicates reduced
heat transfer. Soot on fire side acts as an insulator, raising flue gas temperature.
Excess air (A) would lower CO but could increase O2; here O2 is moderate.
Water side fouling (D) would also raise stack temperature, but soot is more
common with high CO. Feedwater temperature drop (C) would lower
efficiency but not necessarily raise stack temperature by 50°F.
2 During a routine boiler startup, the low-water cutoff fails to trip the burner
when the water level drops below the visible minimum. After verifying the
probe is clean and wiring intact, which component should be tested next?
,A) Blowdown valve
B) Feedwater pump relay
C) Flame scanner
D) High-limit pressure control
Answer: B
Rationale: If the low-water cutoff probe and wiring are fine, the issue may be
that the feedwater pump relay is stuck closed, allowing the pump to run and
maintain water level artificially. The cutoff may not be able to drain the boiler
fast enough to trip. Blowdown valve (A) is for testing but not the component.
Flame scanner (C) and high-limit pressure (D) are unrelated to water level
control.
3 A fire-tube boiler is operating at 150 psig with a feedwater temperature of
180°F. The blowdown is performed manually once per shift. Which of the
following best describes the primary purpose of periodic bottom blowdown?
A) To reduce total dissolved solids and prevent foaming
B) To remove sludge and sediment from the mud drum
C) To increase boiler efficiency by lowering blowdown losses
D) To maintain proper water level during high steam demand
Answer: B
Rationale: Bottom blowdown primarily removes sludge and sediment that settle
in the mud drum. Surface blowdown (continuous) controls TDS and foaming
(A). Efficiency improvement (C) is not a direct purpose; blowdown actually
wastes heat. Water level maintenance (D) is done by feedwater control, not
blowdown.
4 A boiler operator notices that the water level in the gauge glass fluctuates
rapidly and the steam pressure drops suddenly. The feedwater pump is
running continuously. What is the most likely cause?
A) Priming (carryover of water into steam line)
B) Tube rupture allowing water to escape
C) Faulty feedwater regulator stuck open
D) Steam trap failure on the main steam line
Answer: A
Rationale: Rapid water level fluctuation and pressure drop indicate carryover of
water into steam (priming), often due to high water level or foaming. Tube
,rupture (B) would cause rapid water loss and low water alarm, not fluctuation.
Feedwater regulator stuck open (C) would raise water level steadily. Steam trap
failure (D) would not affect water level directly.
5 When performing a hydrostatic test on a boiler, the pressure is raised to 1.5
times the MAWP. During the test, a slight drop in pressure is observed over
30 minutes. Which of the following actions is most appropriate?
A) Immediately depressurize and inspect for leaks
B) Continue to hold pressure for another 30 minutes
C) Increase pressure to 2 times MAWP and recheck
D) Record the pressure drop and pass the test if less than 5%
Answer: A
Rationale: Any pressure drop during a hydrostatic test indicates a leak or
weakness. The test must be stopped, pressure relieved, and the boiler inspected.
Holding longer (B) is unsafe. Increasing pressure (C) is dangerous. ASME
code does not allow a pressure drop tolerance (D); the test requires no visible
leakage and no pressure drop.
6 A boiler is equipped with a modulating combustion control system. At low
fire, the O2 level is 8%, but at high fire it drops to 2%. Which of the
following adjustments is most appropriate?
A) Increase the fuel pressure at low fire only
B) Decrease the air damper position at high fire only
C) Adjust the fuel-to-air ratio curve to increase air at high fire
D) Replace the O2 sensor as it is likely faulty
Answer: C
Rationale: The O2 drop from 8% to 2% indicates insufficient air at high fire
(rich mixture). The fuel-to-air ratio curve should be adjusted to provide more
air at higher firing rates. Increasing fuel at low fire (A) would worsen low-fire
O2. Decreasing air at high fire (B) would further reduce O2. Sensor fault (D) is
unlikely since readings are consistent with load change.
7 During a boiler inspection, a crack is found in the shell of a water-tube boiler
near a stay bolt. The crack is 2 inches long and not through-wall. According
to ASME Code Section I, what is the required action?
A) Monitor the crack at each inspection and record growth
, B) Drill stop holes at each end of the crack
C) Weld repair following an approved procedure
D) Replace the entire shell section
Answer: C
Rationale: ASME Code Section I requires repair of cracks in pressure parts by
welding using an approved WPS. Stop holes (B) are not a permanent repair for
pressure parts. Monitoring (A) is not allowed for cracks in primary pressure
boundaries. Replacement (D) is excessive unless the crack is extensive.
8 A boiler operator is troubleshooting a high CO level (800 ppm) in the flue
gas. The O2 level is 4% and the stack temperature is normal. Which of the
following is the most likely cause?
A) Insufficient combustion air
B) Poor fuel-air mixing due to burner fouling
C) Excess combustion air cooling the flame
D) High nitrogen content in the fuel
Answer: B
Rationale: High CO with moderate O2 (4%) and normal stack temperature
indicates incomplete combustion due to poor mixing, often caused by burner
fouling or damaged flame retention parts. Insufficient air (A) would show low
O2 (<2%). Excess air (C) would lower CO and raise O2. Fuel nitrogen (D)
affects NOx, not CO.
9 When blowdown is performed on a boiler operating at 150 psig, the
blowdown valve should be opened fully and then closed quickly. What is the
primary reason for this procedure?
A) To create a thermal shock that dislodges scale
B) To prevent water hammer in the blowdown line
C) To minimize the amount of water lost
D) To ensure complete removal of sludge
Answer: D
Rationale: Opening fully and closing quickly creates a rapid flow that stirs up
and removes settled sludge. Slow opening allows sludge to settle back.
Thermal shock (A) is not intended and can damage the boiler. Water hammer
(B) is minimized by opening slowly initially, not fully. Water loss (C) is not
the primary concern.
Complete Questions And Correct Detailed Answers| Brand New
Version! - 190 Questions
This rigorous examination assesses mastery of boiler operation and maintenance at the level required for the New
Jersey Black Seal Engineer license. Candidates must demonstrate deep understanding of combustion theory,
feedwater chemistry, heat transfer, safety devices, and troubleshooting. Questions reflect the latest ASME codes
and industry best practices. It contains 190 multiple-choice questions, each with four distractors and a fully
worked rationale that explains why the keyed answer is correct. Content is organized into 10 focused sections:
Boiler Operation and Maintenance, Heating Systems and Controls, Safety Procedures and Regulations, Steam
and Hot Water Systems, Fuel Systems and Combustion, Water Treatment and Chemistry, Piping and Valves,
Pumps and Motors, Electrical Systems and Controls, Environmental and Emissions Compliance. Targeted
learning outcomes include: Analyze combustion efficiency and interpret flue gas analysis; Evaluate feedwater
treatment requirements to prevent scaling and corrosion; Diagnose and resolve common boiler operational
problems; Apply safety codes and interlock testing procedures. Every item has been reviewed for clinical
accuracy, current guidelines, and clarity so that students can study with confidence and self-correct as they work
through the bank. Use it as a high-yield review immediately before the exam, or as a structured practice tool
during the unit - the rationales double as concise teaching notes. The recommended writing time is 3 hours, with a
passing score of 70%. Aligned with Conforms to the high standards of Ivy League and R1 university engineering
Section 1: Boiler Operation and Maintenance (Questions 1-20)
1 A boiler operator observes that the stack temperature has increased by 50°F
over the past week while steam demand remains constant. The flue gas O2
reading is 6% and CO is 200 ppm. Which of the following is the most likely
cause?
A) Excess air too high causing excessive heat loss
B) Soot buildup on fire side reducing heat transfer
C) Feedwater temperature decrease reducing economizer performance
D) Fouling on water side of boiler tubes
Answer: B
Rationale: Increased stack temperature with constant load indicates reduced
heat transfer. Soot on fire side acts as an insulator, raising flue gas temperature.
Excess air (A) would lower CO but could increase O2; here O2 is moderate.
Water side fouling (D) would also raise stack temperature, but soot is more
common with high CO. Feedwater temperature drop (C) would lower
efficiency but not necessarily raise stack temperature by 50°F.
2 During a routine boiler startup, the low-water cutoff fails to trip the burner
when the water level drops below the visible minimum. After verifying the
probe is clean and wiring intact, which component should be tested next?
,A) Blowdown valve
B) Feedwater pump relay
C) Flame scanner
D) High-limit pressure control
Answer: B
Rationale: If the low-water cutoff probe and wiring are fine, the issue may be
that the feedwater pump relay is stuck closed, allowing the pump to run and
maintain water level artificially. The cutoff may not be able to drain the boiler
fast enough to trip. Blowdown valve (A) is for testing but not the component.
Flame scanner (C) and high-limit pressure (D) are unrelated to water level
control.
3 A fire-tube boiler is operating at 150 psig with a feedwater temperature of
180°F. The blowdown is performed manually once per shift. Which of the
following best describes the primary purpose of periodic bottom blowdown?
A) To reduce total dissolved solids and prevent foaming
B) To remove sludge and sediment from the mud drum
C) To increase boiler efficiency by lowering blowdown losses
D) To maintain proper water level during high steam demand
Answer: B
Rationale: Bottom blowdown primarily removes sludge and sediment that settle
in the mud drum. Surface blowdown (continuous) controls TDS and foaming
(A). Efficiency improvement (C) is not a direct purpose; blowdown actually
wastes heat. Water level maintenance (D) is done by feedwater control, not
blowdown.
4 A boiler operator notices that the water level in the gauge glass fluctuates
rapidly and the steam pressure drops suddenly. The feedwater pump is
running continuously. What is the most likely cause?
A) Priming (carryover of water into steam line)
B) Tube rupture allowing water to escape
C) Faulty feedwater regulator stuck open
D) Steam trap failure on the main steam line
Answer: A
Rationale: Rapid water level fluctuation and pressure drop indicate carryover of
water into steam (priming), often due to high water level or foaming. Tube
,rupture (B) would cause rapid water loss and low water alarm, not fluctuation.
Feedwater regulator stuck open (C) would raise water level steadily. Steam trap
failure (D) would not affect water level directly.
5 When performing a hydrostatic test on a boiler, the pressure is raised to 1.5
times the MAWP. During the test, a slight drop in pressure is observed over
30 minutes. Which of the following actions is most appropriate?
A) Immediately depressurize and inspect for leaks
B) Continue to hold pressure for another 30 minutes
C) Increase pressure to 2 times MAWP and recheck
D) Record the pressure drop and pass the test if less than 5%
Answer: A
Rationale: Any pressure drop during a hydrostatic test indicates a leak or
weakness. The test must be stopped, pressure relieved, and the boiler inspected.
Holding longer (B) is unsafe. Increasing pressure (C) is dangerous. ASME
code does not allow a pressure drop tolerance (D); the test requires no visible
leakage and no pressure drop.
6 A boiler is equipped with a modulating combustion control system. At low
fire, the O2 level is 8%, but at high fire it drops to 2%. Which of the
following adjustments is most appropriate?
A) Increase the fuel pressure at low fire only
B) Decrease the air damper position at high fire only
C) Adjust the fuel-to-air ratio curve to increase air at high fire
D) Replace the O2 sensor as it is likely faulty
Answer: C
Rationale: The O2 drop from 8% to 2% indicates insufficient air at high fire
(rich mixture). The fuel-to-air ratio curve should be adjusted to provide more
air at higher firing rates. Increasing fuel at low fire (A) would worsen low-fire
O2. Decreasing air at high fire (B) would further reduce O2. Sensor fault (D) is
unlikely since readings are consistent with load change.
7 During a boiler inspection, a crack is found in the shell of a water-tube boiler
near a stay bolt. The crack is 2 inches long and not through-wall. According
to ASME Code Section I, what is the required action?
A) Monitor the crack at each inspection and record growth
, B) Drill stop holes at each end of the crack
C) Weld repair following an approved procedure
D) Replace the entire shell section
Answer: C
Rationale: ASME Code Section I requires repair of cracks in pressure parts by
welding using an approved WPS. Stop holes (B) are not a permanent repair for
pressure parts. Monitoring (A) is not allowed for cracks in primary pressure
boundaries. Replacement (D) is excessive unless the crack is extensive.
8 A boiler operator is troubleshooting a high CO level (800 ppm) in the flue
gas. The O2 level is 4% and the stack temperature is normal. Which of the
following is the most likely cause?
A) Insufficient combustion air
B) Poor fuel-air mixing due to burner fouling
C) Excess combustion air cooling the flame
D) High nitrogen content in the fuel
Answer: B
Rationale: High CO with moderate O2 (4%) and normal stack temperature
indicates incomplete combustion due to poor mixing, often caused by burner
fouling or damaged flame retention parts. Insufficient air (A) would show low
O2 (<2%). Excess air (C) would lower CO and raise O2. Fuel nitrogen (D)
affects NOx, not CO.
9 When blowdown is performed on a boiler operating at 150 psig, the
blowdown valve should be opened fully and then closed quickly. What is the
primary reason for this procedure?
A) To create a thermal shock that dislodges scale
B) To prevent water hammer in the blowdown line
C) To minimize the amount of water lost
D) To ensure complete removal of sludge
Answer: D
Rationale: Opening fully and closing quickly creates a rapid flow that stirs up
and removes settled sludge. Slow opening allows sludge to settle back.
Thermal shock (A) is not intended and can damage the boiler. Water hammer
(B) is minimized by opening slowly initially, not fully. Water loss (C) is not
the primary concern.
