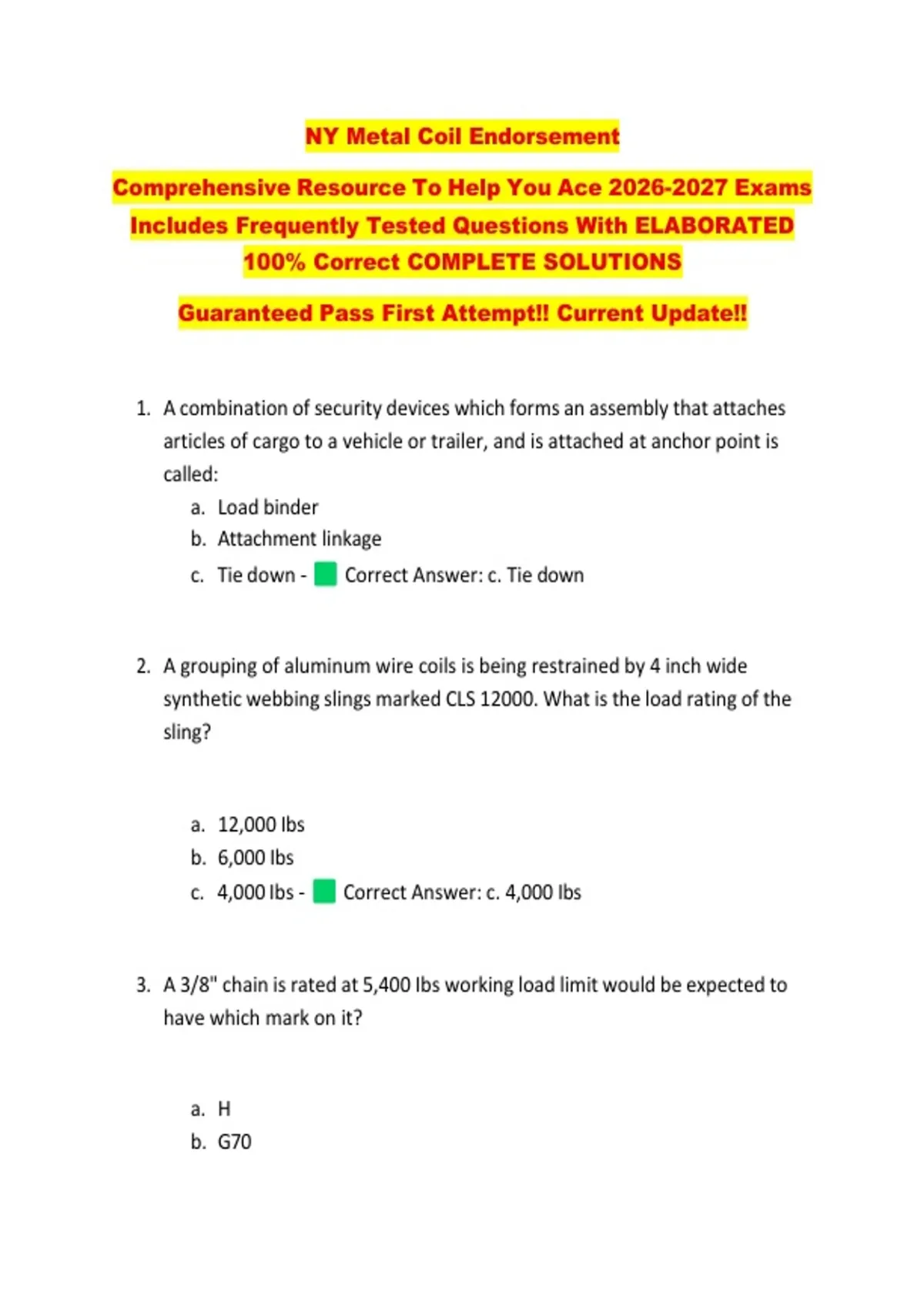

NY Metal Coil Endorsement
Comprehensive Resource To Help You Ace 2026-2027 Exams
Includes Frequently Tested Questions With ELABORATED
100% Correct COMPLETE SOLUTIONS
Guaranteed Pass First Attempt!! Current Update!!
1. A combination of security devices which forms an assembly that attaches
articles of cargo to a vehicle or trailer, and is attached at anchor point is
called:
a. Load binder
b. Attachment linkage
c. Tie down - ⬛ Correct Answer: c. Tie down
2. A grouping of aluminum wire coils is being restrained by 4 inch wide
synthetic webbing slings marked CLS 12000. What is the load rating of the
sling?
a. 12,000 Ibs
b. 6,000 Ibs
c. 4,000 Ibs - ⬛ Correct Answer: c. 4,000 Ibs
3. A 3/8" chain is rated at 5,400 Ibs working load limit would be expected to
have which mark on it?
a. H
b. G70
, c. HT - ⬛ Correct Answer: c. HT
4. What would be the working load limit of an unmarked 1/2" chain?
a. 9200 Ibs
b. 4,500 Ibs
c. 2,250 Ibs - ⬛ Correct Answer: b. 4,500 Ibs
5. Indirect tie downs serve which main purpose?
a. They increase friction
b. They hold back the load from rocking
c. They create a downward force - ⬛ Correct Answer: c. They create a
downward force
6. Who is responsible to ensure the tie down are correctly applied in
accordance with this specification?
a. The shipper
b. The driver
c. The insurer - ⬛ Correct Answer: b. The driver
7. Which of the following is not a prescribed interval at which the driver is
required to stop and inspect the cargo and securing devices and make
adjustment if necessary?
, a. Within the first 50 miles
b. Within the first 5 hours
c. After 3 hours of driving - ⬛ Correct Answer: b. Within the first 5
hours
8. How many options are there for securing a metal coil on a flat bed with the
eye of the coil lengthwise on the bed?
a. 1
b. 2
c. 3 - ⬛ Correct Answer: c. 3
9. When an add number of direct tie down chains is required to meet the
performance criteria for a metal coil with the eye crosswise on the truck
bed, the last chain should be placed:
a. To the rear
b. To the front
c. Never have an odd number of chains - ⬛ Correct Answer: a. To the
rear
10. When using direct tie down chains to secure a metal coil loaded with the
eye crosswise on the truck bed, the chain should be:
a. Pass through the center in parallel
b. Pass through the center in an x-configuration
, c. Pass over the top of the coil in an x-configuratuin - ⬛
Correct Answer: a. Pass through the center in parallel
11. A single metal coil weighting 30,000 Ibs is being secured in an upright
position on the vehicle where the eye is vertical. If three identical tie downs
are being used, what is the minimum working load limit of each tie down?
a. 5,000 Ibs
b. 10,000 Ibs
c. 15,000 Ibs - ⬛ Correct Answer: a. 5,000 Ibs
12. Direct tie down serve which purpose?
a. Oppose the force that act on the cargo
b. Increase friction
c. Just prevent rolling or shifting - ⬛ Correct Answer: a. Oppose the
force that act on the cargo
13. Friction mats provide resistance to horizontal movements equal to what
percentage of the cargo weight resting on the mat?
a. 20%
b. 50%
c. 66% - ⬛ Correct Answer: b. 50%
