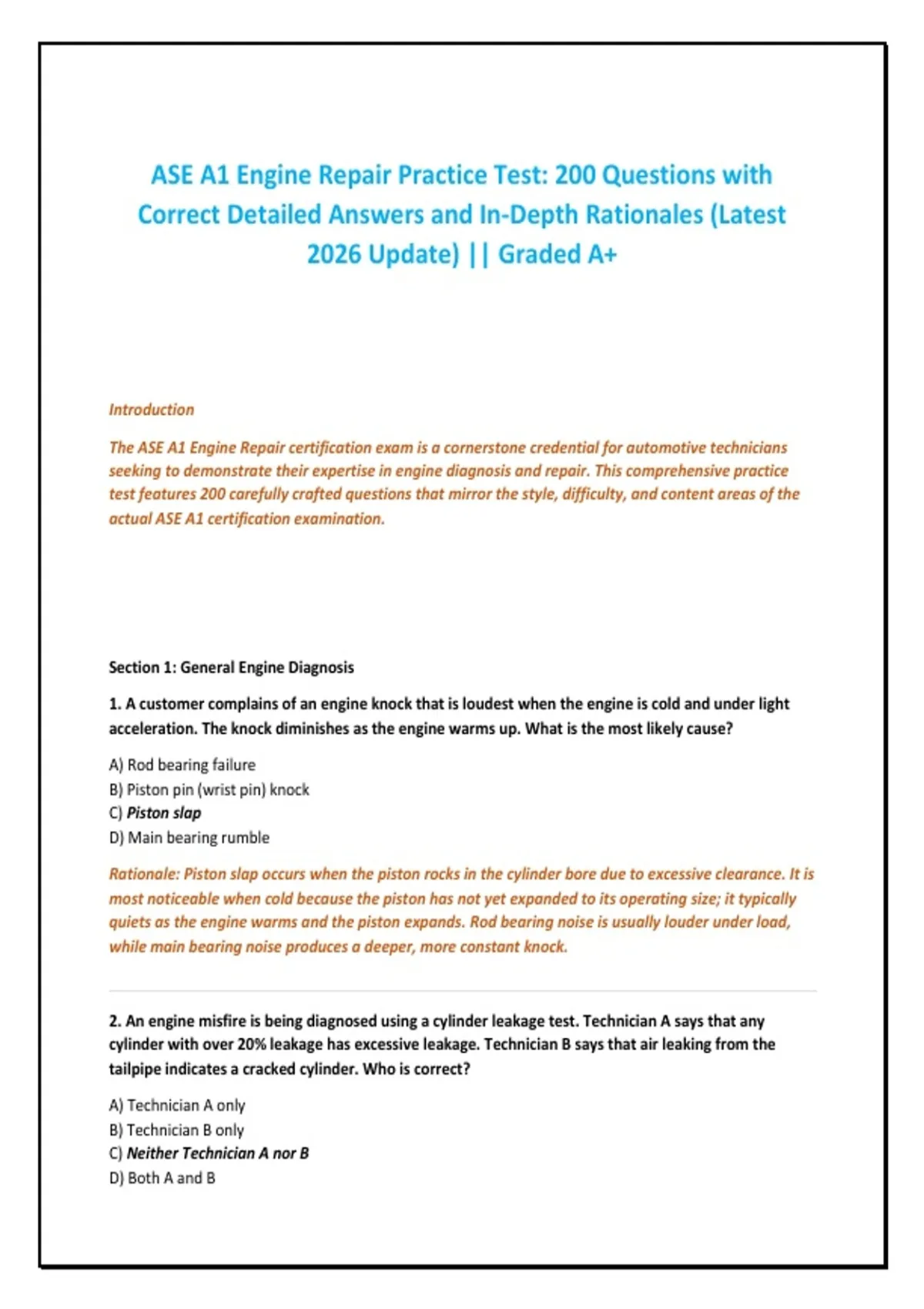

ASE A1 Engine Repair Practice Test: 200 Questions with
Correct Detailed Answers and In-Depth Rationales (Latest
2026 Update) || Graded A+
Introduction
The ASE A1 Engine Repair certification exam is a cornerstone credential for automotive technicians
seeking to demonstrate their expertise in engine diagnosis and repair. This comprehensive practice
test features 200 carefully crafted questions that mirror the style, difficulty, and content areas of the
actual ASE A1 certification examination.
Section 1: General Engine Diagnosis
1. A customer complains of an engine knock that is loudest when the engine is cold and under light
acceleration. The knock diminishes as the engine warms up. What is the most likely cause?
A) Rod bearing failure
B) Piston pin (wrist pin) knock
C) Piston slap
D) Main bearing rumble
Rationale: Piston slap occurs when the piston rocks in the cylinder bore due to excessive clearance. It is
most noticeable when cold because the piston has not yet expanded to its operating size; it typically
quiets as the engine warms and the piston expands. Rod bearing noise is usually louder under load,
while main bearing noise produces a deeper, more constant knock.
2. An engine misfire is being diagnosed using a cylinder leakage test. Technician A says that any
cylinder with over 20% leakage has excessive leakage. Technician B says that air leaking from the
tailpipe indicates a cracked cylinder. Who is correct?
A) Technician A only
B) Technician B only
C) Neither Technician A nor B
D) Both A and B
,Rationale: While 20% leakage is a common threshold for concern, the acceptable limit varies by
engine and manufacturer specifications. Air leaking from the tailpipe during a cylinder leakage test
indicates a leaking exhaust valve, not a cracked cylinder. Air leaking from the throttle body indicates a
leaking intake valve.
3. A P0304 misfire code is present. After swapping the #4 ignition coil with #1, the misfire moves to
cylinder #1. What is the most likely problem?
A) Fuel injector #4
B) Spark plug #4
C) Ignition coil #4
D) PCM driver for cylinder #4
Rationale: Moving the misfire with a component indicates that the component is faulty. Since the
misfire followed the coil from cylinder #4 to cylinder #1, the ignition coil is the cause. If the injector
were faulty, the misfire would remain at cylinder #4.
4. During a vacuum test at idle, the gauge reads steady but lower than normal (e.g., 14 inHg instead of
18–22 inHg). What is the most likely cause?
A) Late valve timing
B) Leaking intake manifold gasket
C) Worn piston rings
D) Restricted exhaust
Rationale: Late valve timing (retarded cam timing) reduces manifold vacuum because the intake valve
closes later, decreasing cylinder filling. A steady low reading points to timing issues. A leaking intake
manifold gasket would cause a fluctuating low reading, and a restricted exhaust would show a
vacuum that drops slowly as RPM increases.
5. A technician performs a cylinder leakage test and hears air escaping from the throttle body. This
indicates:
A) Leaking exhaust valve
B) Leaking intake valve
C) Worn piston rings
D) Blown head gasket between cylinders
Rationale: Air escaping from the throttle body (intake manifold) indicates an intake valve that is not
sealing properly, allowing compressed air to flow back into the intake tract. Air from the tailpipe
indicates an exhaust valve leak, and air from the oil fill cap or PCV indicates worn piston rings.
6. A vehicle is emitting black-colored exhaust. Which of these could be the cause?
,A) Oil burning in the combustion chamber
B) Coolant burning in the combustion chamber
C) A rich air-fuel ratio
D) A lean air-fuel ratio
Rationale: A rich air-fuel ratio produces black exhaust with high HC emissions and black sooty deposits
around the tailpipe. Oil burning results in blue-gray exhaust, and coolant entering the combustion
chamber produces white-colored exhaust.
7. The engine overheats after replacing the lower radiator hose and adding coolant. Which of the
following is MOST likely causing this condition?
A) A faulty water pump impeller
B) A leaking head gasket
C) A faulty fan motor relay
D) An air pocket in the cooling system
Rationale: After draining and refilling coolant, stubborn air pockets can form in the cooling system,
preventing proper coolant circulation and causing overheating. Some vehicles are more prone to this
problem than others and may require special bleeding procedures.
8. All of the following statements are true about an engine's PCV system EXCEPT:
A) A stuck closed PCV valve results in excessive crankcase pressure
B) A stuck open PCV valve results in a rough idle
C) Oil leakage indicates a problem with the system
D) The PCV valve should not rattle when shaken
Rationale: A properly functioning PCV valve should rattle when shaken, indicating the internal plunger
is free to move. A stuck closed valve causes excessive crankcase pressure, while a stuck open valve or
leaking hose causes a rough idle and drivability issues.
9. A cylinder power balance test indicates two adjacent cylinders are underperforming. What is
causing this test result?
A) A faulty fuel injector
B) A bad exhaust valve
C) Worn piston rings
D) A leaking head gasket
Rationale: A leaking or blown head gasket can leak compression between two adjacent cylinders,
causing both to underperform. A faulty fuel injector or exhaust valve affects only one cylinder, while
worn piston rings typically affect all cylinders.
, 10. Technician A says insufficient hydraulic lifter preload results in excessive valve train noise.
Technician B says excessive hydraulic lifter preload produces a high intake manifold vacuum. Who is
correct?
A) Technician A
B) Technician B
C) Both A and B
D) Neither A nor B
Rationale: Insufficient lifter preload causes valve train noise because the lifter cannot take up
clearance. Excessive hydraulic lifter preload causes a low intake manifold vacuum, not high vacuum.
Proper preload is critical for quiet hydraulic lifter operation.
11. A vehicle's engine is slow cranking. Which of the following should the technician check first?
A) The starter
B) The alternator
C) The battery
D) The ignition switch
Rationale: The battery is the first and most logical check for slow cranking. Loose or corroded battery
terminals create high resistance that prevents the high amperage needed for starter operation. A
battery state of charge test should be performed before condemning other components.
12. If an engine fails to crank (the starter does not turn the engine at all), what is the first physical
check you should perform?
A) Check the starter motor
B) Check the ignition switch
C) Inspect the battery terminals
D) Check the engine ground strap
Rationale: Battery terminals must be inspected first for corrosion and tightness. Loose or dirty
terminals create high resistance that prevents the high amperage needed for the starter to operate.
This is the quickest, easiest, and most common cause of no-crank conditions.
13. At what voltage is a standard lead-acid automotive battery considered to be 100% charged?
A) 12.0 volts
B) 12.4 volts
C) 12.66 volts
D) 13.2 volts
Rationale: A fully charged 12-volt lead-acid battery reads approximately 12.66 volts. A reading of
12.4V indicates approximately 75% charge, while 12.0V is essentially a discharged battery.
