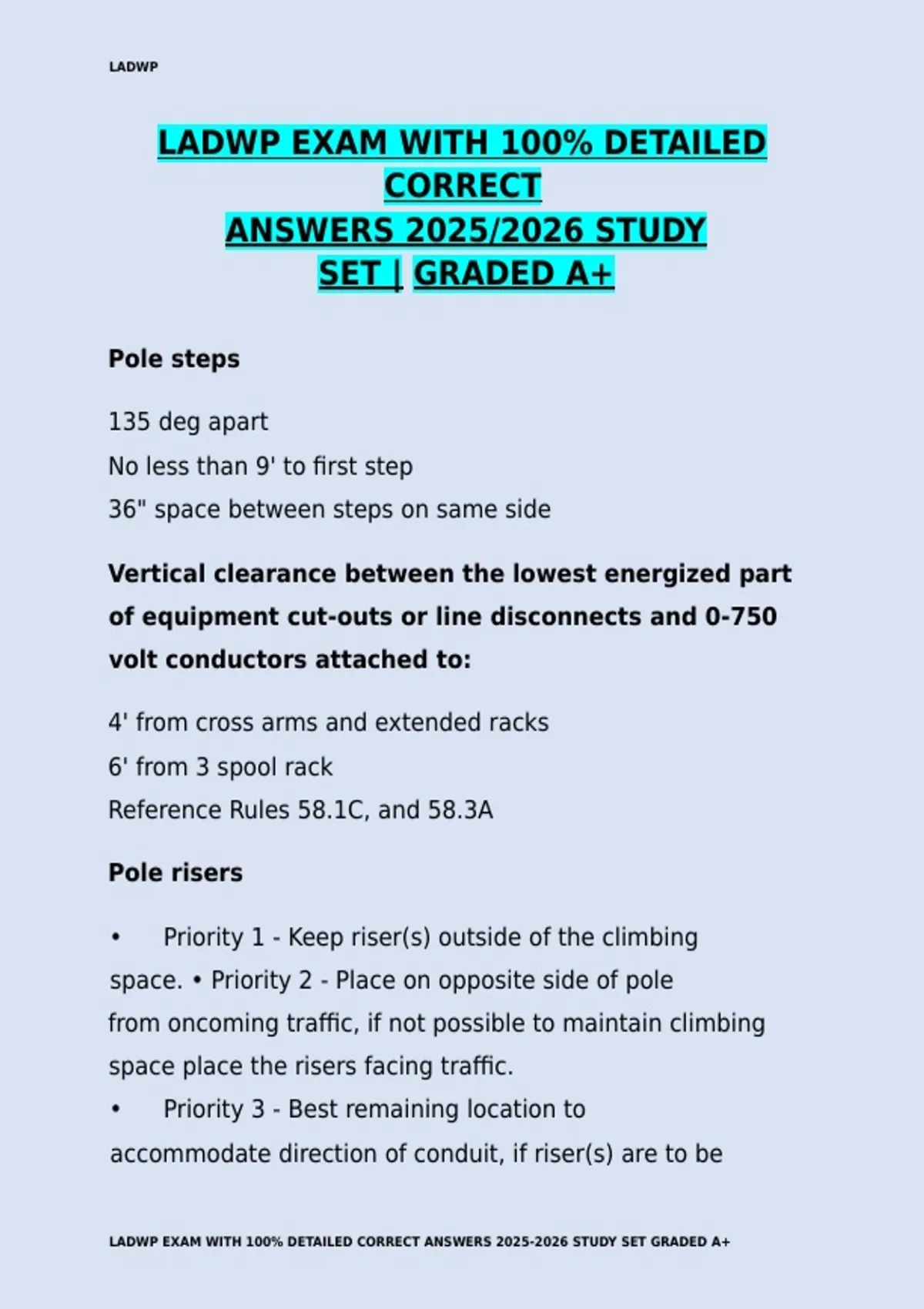

LADWP
LADWP EXAM WITH 100% DETAILED
CORRECT
ANSWERS 2025/2026 STUDY
SET | GRADED A+
Pole steps
135 deg apart
No less than 9' to first step
36" space between steps on same side
Vertical clearance between the lowest energized part
of equipment cut-outs or line disconnects and 0-750
volt conductors attached to:
4' from cross arms and extended racks
6' from 3 spool rack
Reference Rules 58.1C, and 58.3A
Pole risers
• Priority 1 - Keep riser(s) outside of the climbing
space. • Priority 2 - Place on opposite side of pole
from oncoming traffic, if not possible to maintain climbing
space place the risers facing traffic.
• Priority 3 - Best remaining location to
accommodate direction of conduit, if riser(s) are to be
LADWP EXAM WITH 100% DETAILED CORRECT ANSWERS 2025-2026 STUDY SET GRADED A+
,LADWP
placed on the street side of the pole, the distance between
the face of the riser and the curb face should preferably be
18" if possible, but no less than 12". High volt signs
approximately 30" below the lowest line
conductor energized in excess of 750 volts
6" below the equipment and above all secondary conductors
and com
approximately 30 inches below the lowest exposed energized
portion of the pothead.
Guy make ups
YBOG
Yellow- 1/4" 2375
Black- 5/16"
Orange 3/8" 5400
Green 7/16" 7250
Service make ups
#4 orange ORYOG
#2 red
1/0 yellow
3/0 orange
LADWP EXAM WITH 100% DETAILED CORRECT ANSWERS 2025-2026 STUDY SET GRADED A+
,LADWP
336 green
Bullet colors
8 sol brown
6 sol green
34.5 mid span lateral
Min 35' from pole
Reduced tension span not to exceed 55'
Line conductor sizes for mid-span clamp 3/0 ASCR to 795 AAC
and 1/0 to
350 CU
Max dead end strain on clamp not to exceed 1000 lbs. max
wire size of 477
ASCR
& 4/0 CU at reduced tension
Single cross arm
Carriage bolt w nuts
Mechanical gain
18" da bolt. X2 nuts/washers
LADWP EXAM WITH 100% DETAILED CORRECT ANSWERS 2025-2026 STUDY SET GRADED A+
, LADWP
V brace 60"
12" machine bolt x 1 washer/nut
Double cross arm
Boney arm : has all the bolts a d v brace
Regular arm with mac gain
Center 2 nuts 2 washers
11 nuts 11 washers
Wood measurement 13" of wood, set arm bolts for 13"
apart Reme holes!
X (1) 12" v brace bolt
X (3) 24" arm bolt
Transformer
Manufacturer
Serial number
Class
Weight
Center hole to v brace
LADWP EXAM WITH 100% DETAILED CORRECT ANSWERS 2025-2026 STUDY SET GRADED A+
