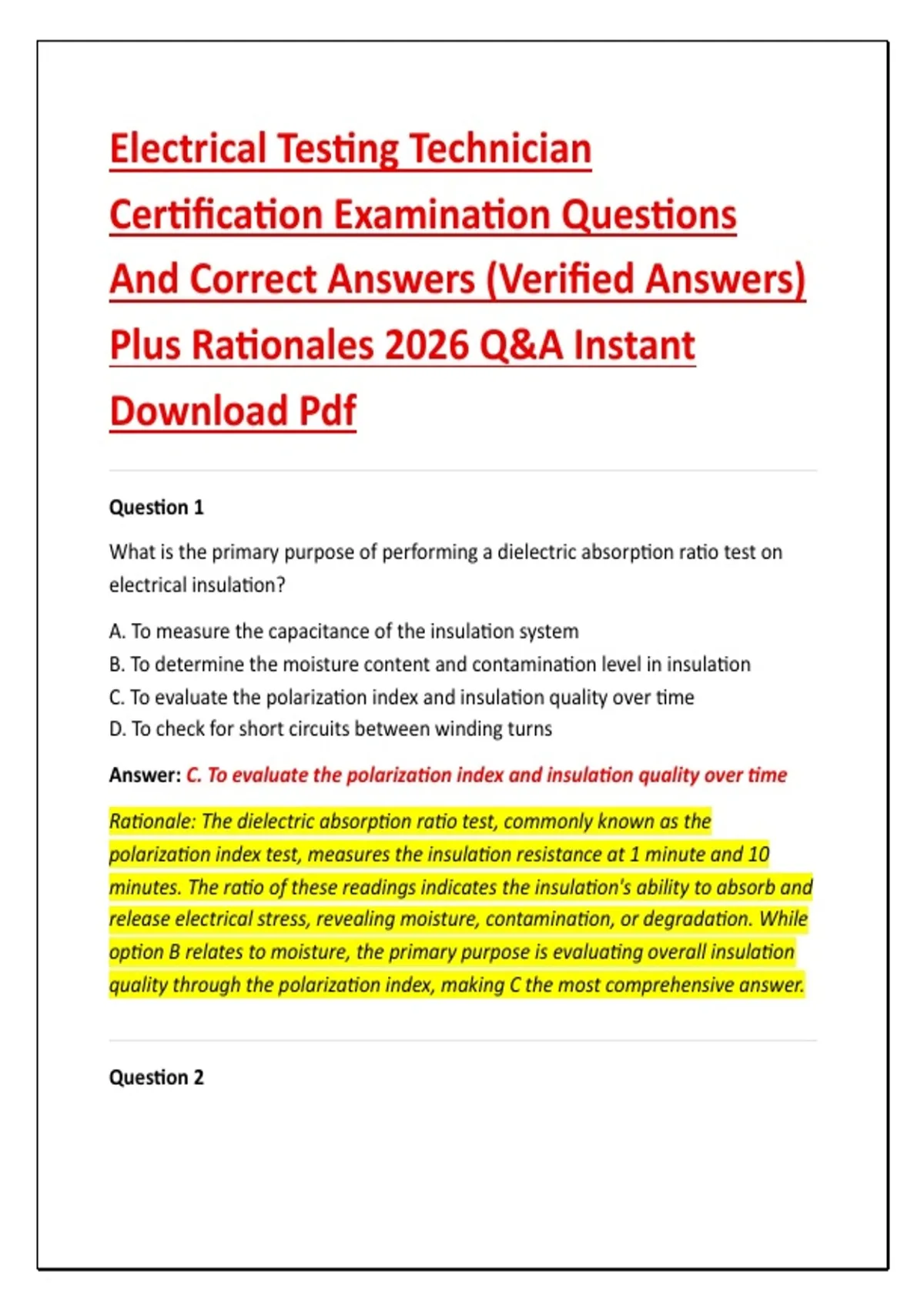

Electrical Testing Technician
Certification Examination Questions
And Correct Answers (Verified Answers)
Plus Rationales 2026 Q&A Instant
Download Pdf
Question 1
What is the primary purpose of performing a dielectric absorption ratio test on
electrical insulation?
A. To measure the capacitance of the insulation system
B. To determine the moisture content and contamination level in insulation
C. To evaluate the polarization index and insulation quality over time
D. To check for short circuits between winding turns
Answer: C. To evaluate the polarization index and insulation quality over time
Rationale: The dielectric absorption ratio test, commonly known as the
polarization index test, measures the insulation resistance at 1 minute and 10
minutes. The ratio of these readings indicates the insulation's ability to absorb and
release electrical stress, revealing moisture, contamination, or degradation. While
option B relates to moisture, the primary purpose is evaluating overall insulation
quality through the polarization index, making C the most comprehensive answer.
Question 2
,When performing a ground resistance test using the three-point fall-of-potential
method, at what distance should the potential electrode be placed from the
ground electrode under test?
A. 52% of the distance to the current electrode
B. 62% of the distance to the current electrode
C. 72% of the distance to the current electrode
D. 82% of the distance to the current electrode
Answer: B. 62% of the distance to the current electrode
Rationale: In the fall-of-potential method, the potential electrode should be placed
at approximately 62% of the distance between the ground electrode under test
and the current electrode. This positioning ensures that the potential electrode is
outside the resistance gradients of both electrodes, providing an accurate
measurement of ground resistance. The 62% rule is a standard industry practice
that minimizes measurement errors.
Question 3
What is the acceptable leakage current limit for a 480V motor insulation
resistance test at 1000V DC?
A. 1 microamp per 1000V
B. 5 milliamps per 1000V
C. 10 microamps per 1000V
D. 50 milliamps per 1000V
Answer: A. 1 microamp per 1000V
Rationale: Industry standards typically specify that leakage current should not
exceed 1 microampere per 1000V of applied test voltage for good insulation. At
1000V DC, this translates to a maximum leakage of 1 microamp. Higher leakage
currents indicate insulation degradation. Options B and D are far too high and
would indicate failure. Option C is ten times the acceptable limit.
,Question 4
Which type of transformer testing involves applying a voltage higher than rated
voltage to verify insulation strength?
A. Turns ratio test
B. Polarity test
C. Dielectric withstand test
D. Excitation current test
Answer: C. Dielectric withstand test
Rationale: The dielectric withstand test, also known as the high-potential or hipot
test, applies a voltage significantly higher than the transformer's rated voltage
(typically 2X rated voltage + 1000V) to verify that the insulation can withstand
transient overvoltages. This test confirms the integrity of the insulation system.
The turns ratio test measures voltage ratios, polarity test checks phase
relationships, and excitation current test evaluates core conditions.
Question 5
A digital multimeter set to resistance mode shows "OL" when measuring across a
circuit breaker. What does this indicate?
A. The circuit breaker is closed with continuity
B. The circuit breaker is open with infinite resistance
C. The circuit breaker has a short circuit
D. The circuit breaker has low resistance
Answer: B. The circuit breaker is open with infinite resistance
Rationale: "OL" on a digital multimeter stands for "overload," indicating that the
resistance exceeds the meter's range. In the context of a circuit breaker, this
typically means the breaker is in the open (tripped or off) position, presenting an
, open circuit with effectively infinite resistance. A closed breaker would show near-
zero resistance, while a short would also show low resistance.
Question 6
What is the correct procedure for discharging a capacitor after testing?
A. Short the terminals together with an insulated screwdriver
B. Connect a high-wattage resistor across the terminals and wait
C. Ground one terminal and leave the other floating
D. Immediately connect the capacitor to a voltage source
Answer: B. Connect a high-wattage resistor across the terminals and wait
Rationale: Capacitors retain a dangerous charge after testing. The proper
discharge method uses a high-wattage resistor connected across the terminals to
safely bleed the charge to zero over time. Shorting with a screwdriver can cause
arcing, damage the capacitor, and create safety hazards. Grounding only one
terminal does not discharge the capacitor, and connecting to a voltage source is
dangerous and counterproductive.
Question 7
What does a power factor of 0.8 lagging indicate in an AC circuit?
A. The circuit is predominantly resistive
B. The circuit is predominantly capacitive
C. The circuit is predominantly inductive
D. The circuit is purely resistive
Answer: C. The circuit is predominantly inductive
Rationale: A lagging power factor indicates that the current lags behind the
voltage, which is characteristic of inductive loads such as motors, transformers,
and reactors. A power factor of 0.8 means that only 80% of the apparent power is
