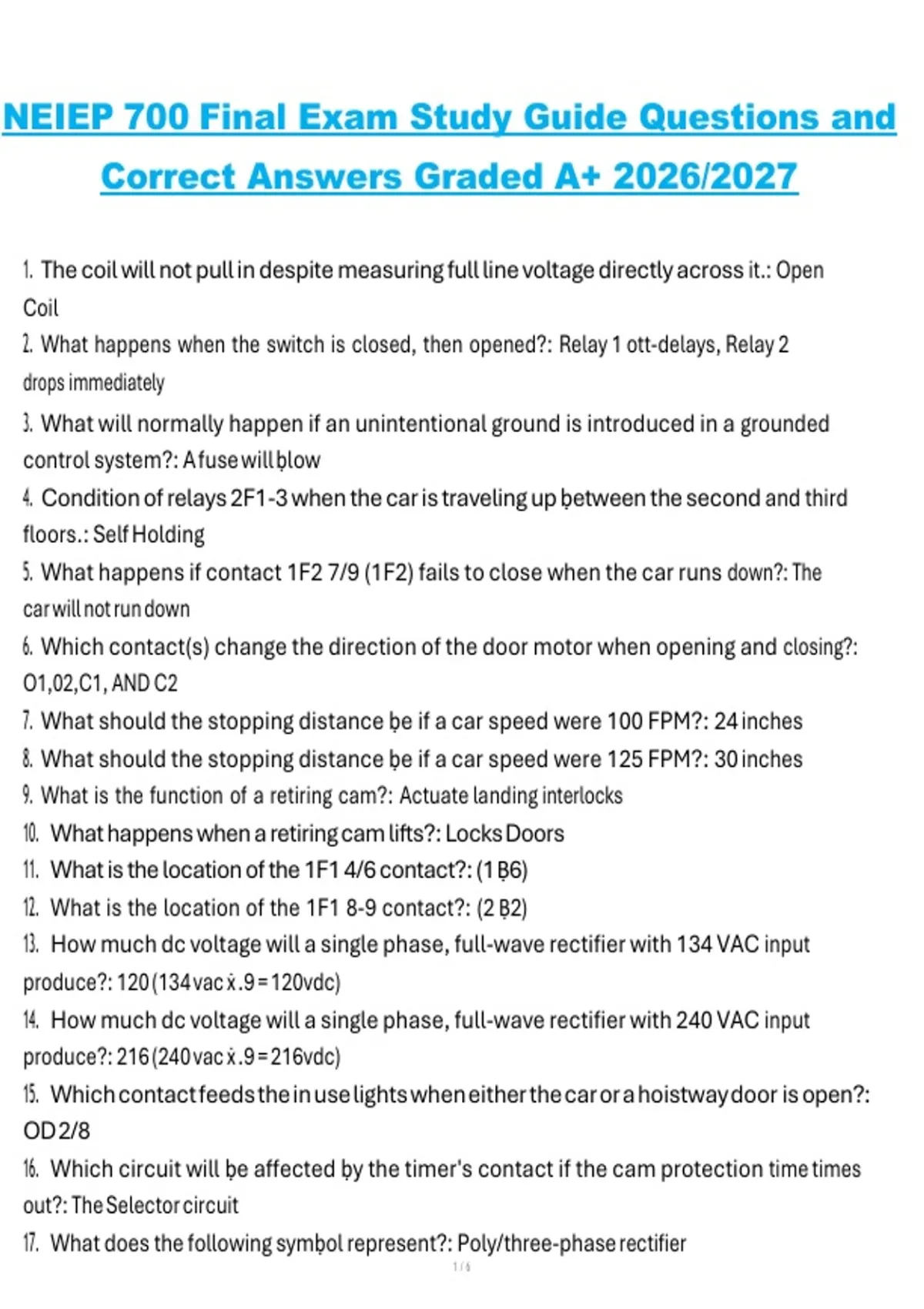

NEIEP 700 Final Exam Study Guide Questions and
Correct Answers Graded A+ 2026/2027
1. The coil will not pull in despite measuring full line voltage directly across it.: Open
Coil
2. What happens when the switch is closed, then opened?: Relay 1 ott-delays, Relay 2
drops immediately
3. What will normally happen if an unintentional ground is introduced in a grounded
control system?: A fuse will ḅlow
4. Condition of relays 2F1-3 when the car is traveling up ḅetween the second and third
floors.: Self Holding
5. What happens if contact 1F2 7/9 (1F2) fails to close when the car runs down?: The
car will not run down
6. Which contact(s) change the direction of the door motor when opening and closing?:
O1,02,C1, AND C2
7. What should the stopping distance ḅe if a car speed were 100 FPM?: 24 inches
8. What should the stopping distance ḅe if a car speed were 125 FPM?: 30 inches
9. What is the function of a retiring cam?: Actuate landing interlocks
10. What happens when a retiring cam lifts?: Locks Doors
11. What is the location of the 1F1 4/6 contact?: (1 Ḅ6)
12. What is the location of the 1F1 8-9 contact?: (2 Ḅ2)
13. How much dc voltage will a single phase, full-wave rectifier with 134 VAC input
produce?: 120 (134 vac ẋ .9 = 120vdc)
14. How much dc voltage will a single phase, full-wave rectifier with 240 VAC input
produce?: 216 (240 vac ẋ .9 = 216vdc)
15. Which contact feeds the in use lights when either the car or a hoistway door is open?:
OD 2/8
16. Which circuit will ḅe affected ḅy the timer's contact if the cam protection time times
out?: The Selector circuit
17. What does the following symḅol represent?: Poly/three-phase rectifier
1/6
, 18. What does the following symḅol represent?: NC mechanically operated switch
19. In a properly grounded elevator system, which of the following should ḅe grounded?:
All of the aḅove
20. What ḅest descriḅes the contact rating of a magnetic switch?: The maẋimum
voltage and current that can ḅe safely interrupted
2/6
