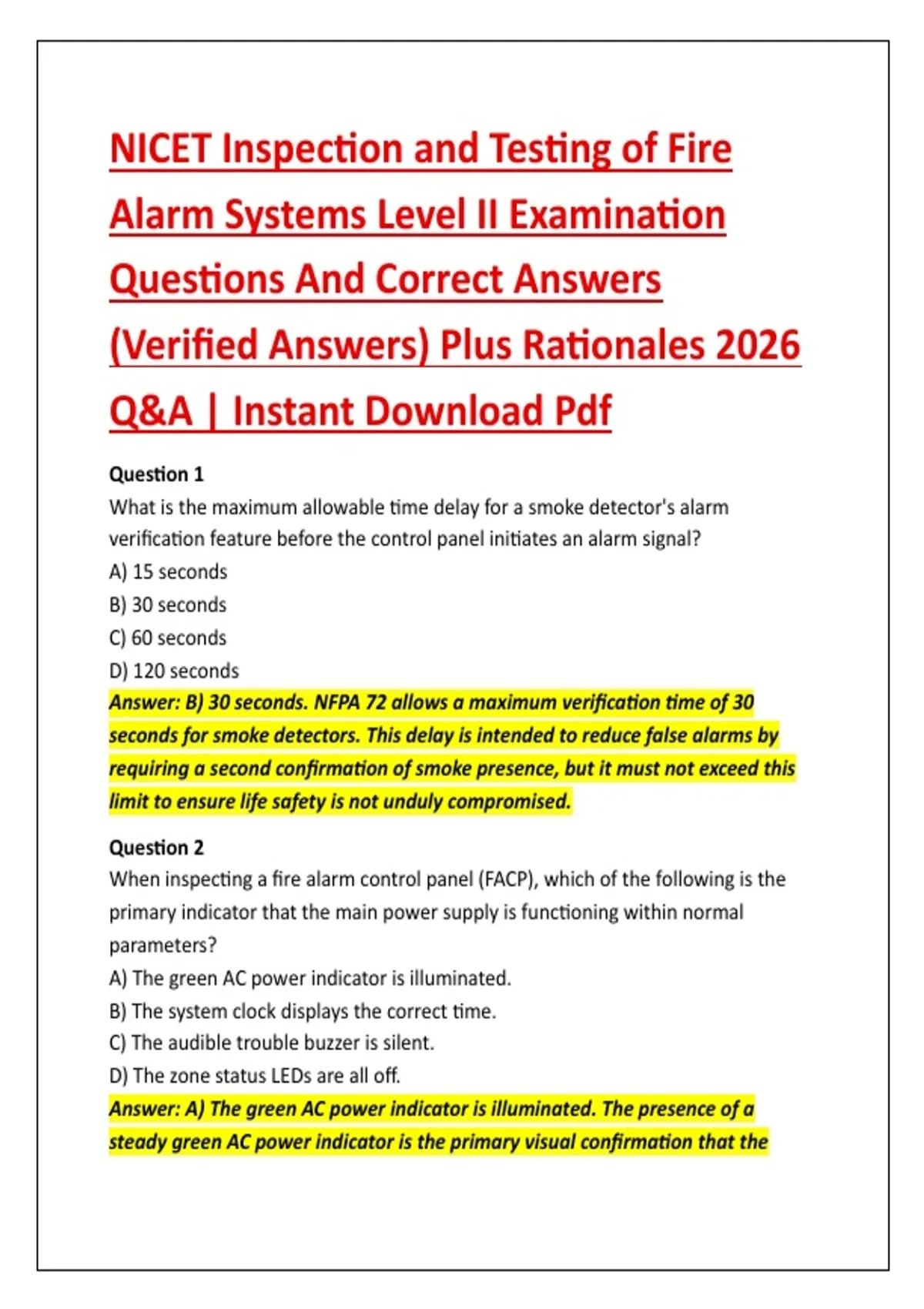

NICET Inspection and Testing of Fire
Alarm Systems Level II Examination
Questions And Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A | Instant Download Pdf
Question 1
What is the maximum allowable time delay for a smoke detector's alarm
verification feature before the control panel initiates an alarm signal?
A) 15 seconds
B) 30 seconds
C) 60 seconds
D) 120 seconds
Answer: B) 30 seconds. NFPA 72 allows a maximum verification time of 30
seconds for smoke detectors. This delay is intended to reduce false alarms by
requiring a second confirmation of smoke presence, but it must not exceed this
limit to ensure life safety is not unduly compromised.
Question 2
When inspecting a fire alarm control panel (FACP), which of the following is the
primary indicator that the main power supply is functioning within normal
parameters?
A) The green AC power indicator is illuminated.
B) The system clock displays the correct time.
C) The audible trouble buzzer is silent.
D) The zone status LEDs are all off.
Answer: A) The green AC power indicator is illuminated. The presence of a
steady green AC power indicator is the primary visual confirmation that the
,FACP is receiving and processing primary power correctly. While other conditions
may be normal, the AC indicator specifically addresses power supply status.
Question 3
During a periodic test of a waterflow switch on a wet-pipe sprinkler system, the
inspector observes that the switch activates, but the fire alarm signal does not
transmit to the central station. What is the most likely cause?
A) The waterflow switch is installed backwards.
B) The retard delay is set too short.
C) The tamper switch is open.
D) The municipal tie-in module or dialer is malfunctioning.
Answer: D) The municipal tie-in module or dialer is malfunctioning. The
waterflow switch itself is activating, indicating mechanical and electrical
operation up to the control panel. The failure to transmit to the central station
points to a fault in the communication path, specifically the module or dialer
responsible for sending the signal.
Question 4
According to NFPA 72, what is the required sound level for audible notification
appliances in a sleeping area, measured at the pillow?
A) At least 15 dBA above the average ambient sound level
B) At least 75 dBA
C) At least 85 dBA
D) At least 15 dBA above the ambient sound level or 75 dBA, whichever is greater
Answer: D) At least 15 dBA above the ambient sound level or 75 dBA, whichever
is greater. NFPA 72 specifies that in sleeping areas, the alarm sound must be at
least 15 dBA above the average ambient sound level or 75 dBA, whichever is
louder. This ensures the signal is sufficient to awaken occupants.
Question 5
A fire alarm system is being inspected in a high-rise building. Which of the
following is a critical test for the building's fire alarm voice evacuation system?
A) Verifying the frequency response of all speakers.
B) Confirming that the strobe lights are synchronized.
,C) Testing the intelligibility of the voice message in all areas.
D) Measuring the DC resistance of all speaker circuits.
Answer: C) Testing the intelligibility of the voice message in all areas. While
other tests are important, the primary function of a voice evacuation system is
to communicate clear, understandable instructions. Intelligibility testing, often
using a Common Intelligibility Scale (CIS) test, is a critical requirement for these
systems.
Question 6
When inspecting a duct smoke detector, what is the most important factor to
verify regarding its sampling tubes?
A) The tubes are made of corrosion-resistant material.
B) The tubes are properly secured and free of obstructions.
C) The tubes are connected to the correct port (inlet/outlet).
D) The tubes are painted to match the ductwork.
Answer: C) The tubes are connected to the correct port (inlet/outlet). The
orientation and connection of the sampling tubes are critical. The inlet tube
must face the airflow, and the exhaust tube must be downstream. Reversing
them will prevent the detector from functioning correctly, even if the tubes are
clean and secured.
Question 7
A technician is performing a battery capacity test on a lead-acid battery used for a
fire alarm system. After a 24-hour charge, the battery voltage is measured. What
is the acceptable voltage for a 12V nominal system?
A) 12.0 to 12.5 VDC
B) 12.6 to 13.8 VDC
C) 13.0 to 14.5 VDC
D) 13.8 to 14.5 VDC
Answer: B) 12.6 to 13.8 VDC. A fully charged 12V lead-acid battery at rest will
typically show a voltage between 12.6 and 13.8 volts. A voltage below this
range, even after a full charge, indicates the battery is sulfated, has failed, or is
losing capacity.
, Question 8
Which type of fire alarm circuit provides supervision of the wiring integrity and
does not require an end-of-line resistor?
A) Class A (Style Z)
B) Class B (Style Y)
C) Class X
D) Class D
Answer: A) Class A (Style Z). A Class A circuit provides a redundant return path to
the control panel. Because the panel can monitor both ends of the circuit, it can
detect an open wire and continue to operate without requiring an end-of-line
resistor to supervise the single path, as Class B circuits do.
Question 9
When inspecting a fire alarm system that uses a proprietary supervising station,
what is the primary responsibility of the on-site staff?
A) To perform all required daily system tests.
B) To acknowledge and act upon all signals from the control panel.
C) To dispatch the fire department directly.
D) To maintain the central station receiving equipment.
Answer: B) To acknowledge and act upon all signals from the control panel. A
proprietary supervising station is staffed by the owner's personnel who are
trained to monitor, acknowledge, and respond to all alarms, troubles, and
supervisory signals from the fire alarm system on the property.
Question 10
A photoelectric smoke detector is being tested. Which of the following test
aerosols or methods is considered acceptable by NFPA 72 for testing the
detector's sensitivity?
A) Using a magnet to initiate a test signal.
B) Using a canned aerosol smoke that is specifically listed for the detector.
C) Using a heat source to test the detector's thermal element.
D) Using an ohmmeter to measure the photoelectric sensor's resistance.
Answer: B) Using a canned aerosol smoke that is specifically listed for the
detector. NFPA 72 requires that smoke detectors be tested with an approved
