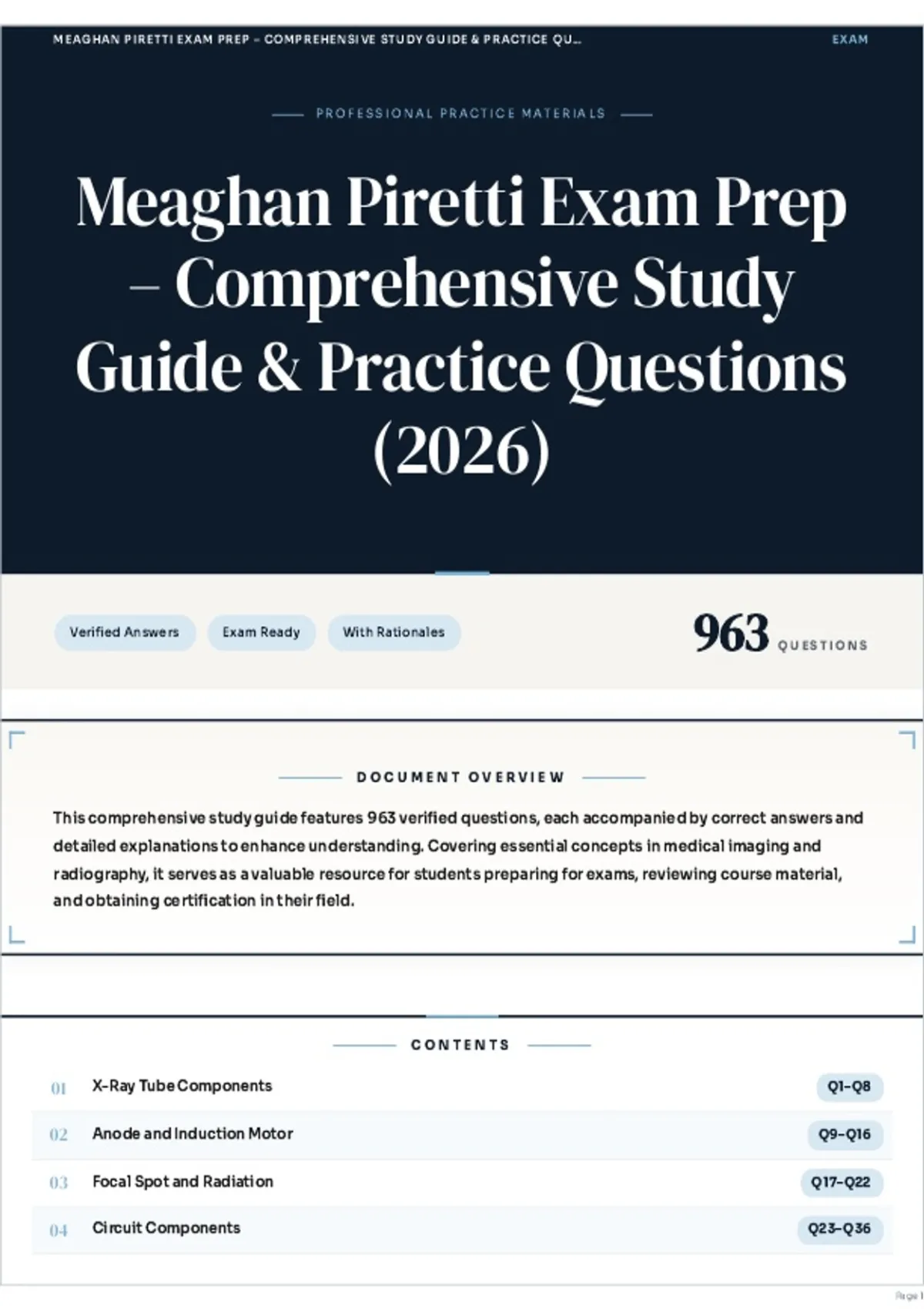

MEAGHAN PIRETTI EXAM PREP – COMPREHENSIVE STUDY GUIDE & PRACTICE QU… EXAM
P R O F E S S I O N A L P R A C T I C E M AT E R I A L S
Meaghan Piretti Exam Prep
– Comprehensive Study
Guide & Practice Questions
(2026)
Verified Answers Exam Ready With Rationales
963 QUESTIONS
DOCUMENT OVERVIEW
This comprehensive study guide features 963 verified questions, each accompanied by correct answers and
detailed explanations to enhance understanding. Covering essential concepts in medical imaging and
radiography, it serves as a valuable resource for students preparing for exams, reviewing course material,
and obtaining certification in their field.
CONTENTS
01 X-Ray Tube Components Q1–Q8
02 Anode and Induction Motor Q9–Q16
03 Focal Spot and Radiation Q17–Q22
04 Circuit Components Q23–Q36
Page 1
, 05 Transformer Functions Q37–Q41
06 Exposure Factors Q42–Q53
07 Automatic Exposure Control (AEC) Q54–Q62
08 Grids and Contrast Q63–Q77
09 Digital Imaging Process Q78–Q89
10 Image Quality Factors Q90–Q104
11 Contrast and Attenuation Q105–Q132
12 Spatial Resolution and Distortion Q133–Q171
13 Additional Questions Q172–Q963
E XA M Q U EST I O N S
Q1 QUESTION 1 OF 963
What side of the x-ray tube positive
CORRECT ANSWER
Anode
RATIONALE
The anode is the positively charged electrode in an x-ray tube, facilitating the acceleration of electrons from the
cathode and enabling x-ray production upon their interaction with the target material. This fundamental principle of
electron dynamics governs the functioning of x-ray imaging systems.
Q2 QUESTION 2 OF 963
What side of the x-ray tube is negative
CORRECT ANSWER
Cathode
Page 2
, RATIONALE
The cathode is the negative side of the x-ray tube, where thermionic emission occurs, releasing electrons that are then
accelerated toward the anode. This process is fundamental to x-ray production, as the interaction of high-energy
electrons with the anode generates x-rays.
Q3 QUESTION 3 OF 963
What is the role of the glass envelope
CORRECT ANSWER
Containment and maintains the vacuum
RATIONALE
The glass envelope serves to contain the thermal energy produced during electron interactions while maintaining a
vacuum, which is essential for efficient electron flow and preventing oxidation of internal components. This design
minimizes energy loss and enhances the longevity and performance of the device.
Q4 QUESTION 4 OF 963
What is the role of the tube housing
CORRECT ANSWER
Prevents leakage and insulates
RATIONALE
Tube housing functions to contain radiation produced during x-ray generation, preventing leakage that could expose
personnel and patients to harmful doses, while also providing thermal insulation to maintain optimal operating
temperatures for the tube. This dual role is critical for safety and efficiency in radiological practices.
Q5 QUESTION 5 OF 963
What end of the tube has the filament and focusing cup
CORRECT ANSWER
Cathode
Page 3
, RATIONALE
The cathode contains the filament and focusing cup, which are essential for thermionic emission, where the filament
heats up to release electrons. This process is critical for generating the electron beam in x-ray production within the
tube.
Q6 QUESTION 6 OF 963
What are the types of anodes
CORRECT ANSWER
Rotating and Stationary
RATIONALE
Anodes are classified based on their operational mechanics; rotating anodes enhance heat dissipation and image
quality by distributing electron bombardment over a larger surface area, while stationary anodes are simpler in design
and suitable for lower-power applications. Understanding these distinctions is crucial for optimizing radiographic
techniques and equipment selection in medical imaging.
Q7 QUESTION 7 OF 963
What is the anode made of
CORRECT ANSWER
Tungsten
RATIONALE
Tungsten's high atomic number and melting point make it ideal for anodes in x-ray tubes, allowing for efficient electron
bombardment and heat dissipation. This property is critical for maintaining structural integrity during high-energy
radiation production.
Q8 QUESTION 8 OF 963
Why is Tungsten the chosen material for the anode
CORRECT ANSWER
Has a high atomic number meaning it has a high melting point
Page 4
