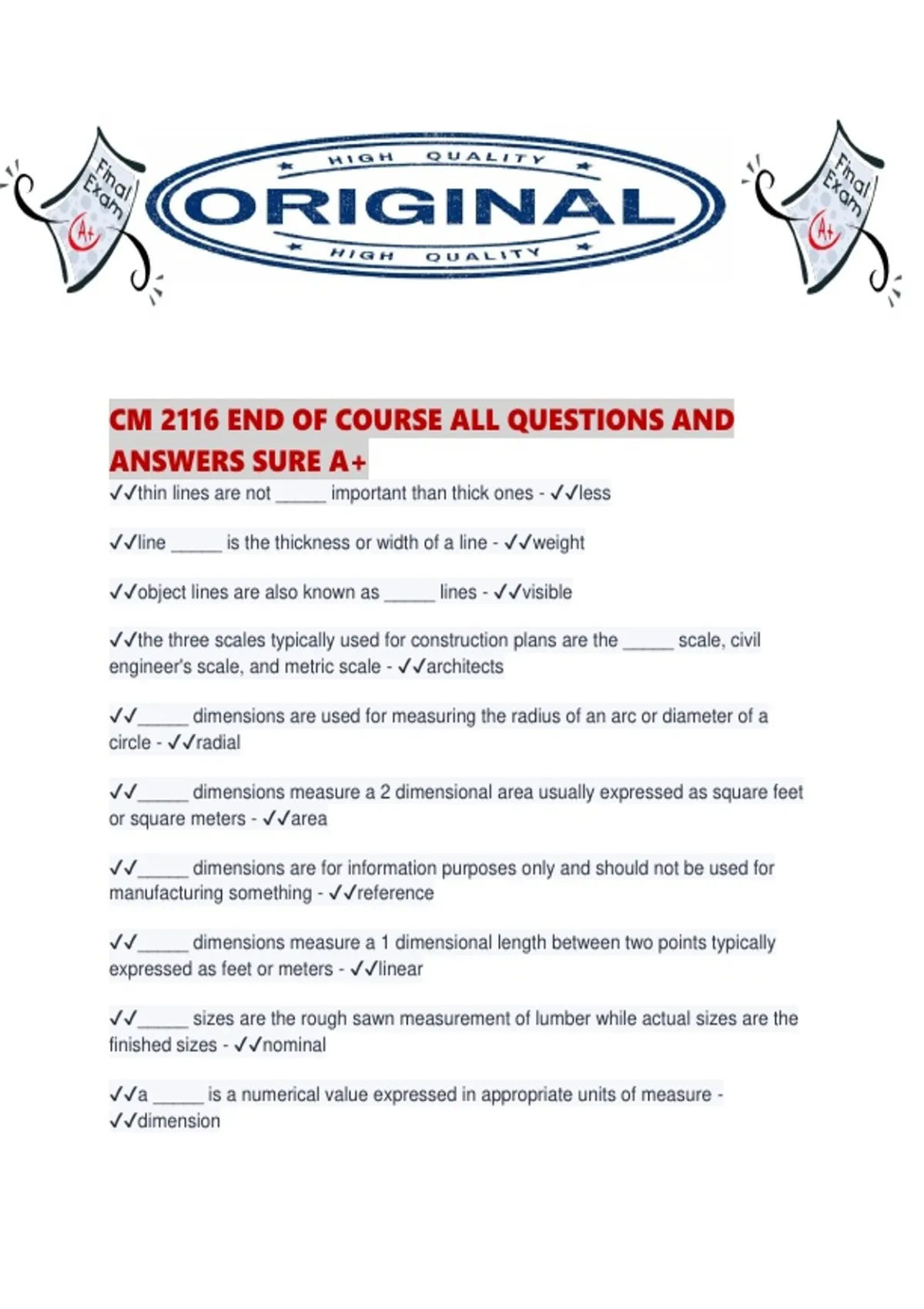

CM 2116 END OF COURSE ALL QUESTIONS AND
ANSWERS SURE A+
✔✔thin lines are not _____ important than thick ones - ✔✔less
✔✔line _____ is the thickness or width of a line - ✔✔weight
✔✔object lines are also known as _____ lines - ✔✔visible
✔✔the three scales typically used for construction plans are the _____ scale, civil
engineer's scale, and metric scale - ✔✔architects
✔✔_____ dimensions are used for measuring the radius of an arc or diameter of a
circle - ✔✔radial
✔✔_____ dimensions measure a 2 dimensional area usually expressed as square feet
or square meters - ✔✔area
✔✔_____ dimensions are for information purposes only and should not be used for
manufacturing something - ✔✔reference
✔✔_____ dimensions measure a 1 dimensional length between two points typically
expressed as feet or meters - ✔✔linear
✔✔_____ sizes are the rough sawn measurement of lumber while actual sizes are the
finished sizes - ✔✔nominal
✔✔a _____ is a numerical value expressed in appropriate units of measure -
✔✔dimension
,✔✔the amount that a measurement can vary from the plans is known as the _____ -
✔✔tolerance
✔✔Dimensions typically use metric or _____ units - ✔✔english
✔✔_____ dimensions measure a 3 dimensional volume usually expressed in cubic feet
or cubic meters - ✔✔volume
✔✔orthographic views do not show any _____ to an object - ✔✔depth
✔✔a _____ view is an orthographic view looking at an object from directly above -
✔✔plan
✔✔the two important rules of orthographic drawing are view, _____, and alignment -
✔✔placement
✔✔orthographic drawing is also known as _____ drawing - ✔✔multiview
✔✔common orthographic drawings on construction drawings are plans, _____, and
sections - ✔✔elevations
✔✔in practice, the _____ number of orthographic views are necessary are provided on
a set of plans - ✔✔minimum
✔✔isometric drawings are used to show a _____ dimensional picture in one view -
✔✔three
✔✔_____ objects make distant objects appear smaller even though they have the same
shape - ✔✔perspective
✔✔the six primary orthographic views are the front, _____, right, left, bottom, and back
views - ✔✔top
✔✔the United States and Canada use _____ angle orthographic projection for plans -
✔✔third
✔✔On-screen takeoff does not provide in-house training - ✔✔False
✔✔On-screen takeoff is used to build takeoffs and calculations - ✔✔true
✔✔PlanGrid is best described as Construction Productivity Software - ✔✔True
, ✔✔on-screen takeoff can be used to put together an accurate project estimate - ✔✔true
✔✔According to the YouTube video on center software - inside the blueprint official an
average one in five bids is actually won by the company - ✔✔false
✔✔on-screen takeoff creates blueprints in different languages - ✔✔false
✔✔PlanGrid securely plans up information to the cloud - ✔✔true
✔✔PlanGrid and On-screen takeoff are completely free to use forever - ✔✔false
✔✔What will using on-screen takeoff not do? - ✔✔Identify code violations
✔✔PlanGrid lets you share content and mark ups with your team within 24 to 36 hours -
✔✔False
✔✔According to the title block of the sheet A0.2, what is the issuance date of the
drawing? - ✔✔8-22-07
✔✔What is the drawing type for sheet No. A1.2? - ✔✔Plan Layout
✔✔according to sheet A1.2, what is the type of line shown by C? - ✔✔leader line
✔✔According to sheet A1.1, what is the type of line shown by B> - ✔✔hidden object line
✔✔what is the drawing type for sheet no. A9.1 - ✔✔section view
✔✔according to the title block of the sheet A0.2, who has checked the drawing? -
✔✔CA
✔✔What is the drawing type for sheet no. A9.2? - ✔✔section view
✔✔what is the drawing type for sheet no. A5.1? - ✔✔elevation
✔✔according to the title block of the sheet A0.2, who has drawn the drawing? - ✔✔DG
✔✔What is the drawing type for sheet no. A1.1? - ✔✔plan layout
✔✔according to the title block of the sheet A0.2, what is the name of the project? -
✔✔Delhi Flower & Garden Centers & United Dairy Farmers
✔✔In sheet A1.1, using the PLanGrid measurement tool and other dimensions, define
the missed dimension G, - ✔✔14' 8 3/4"
