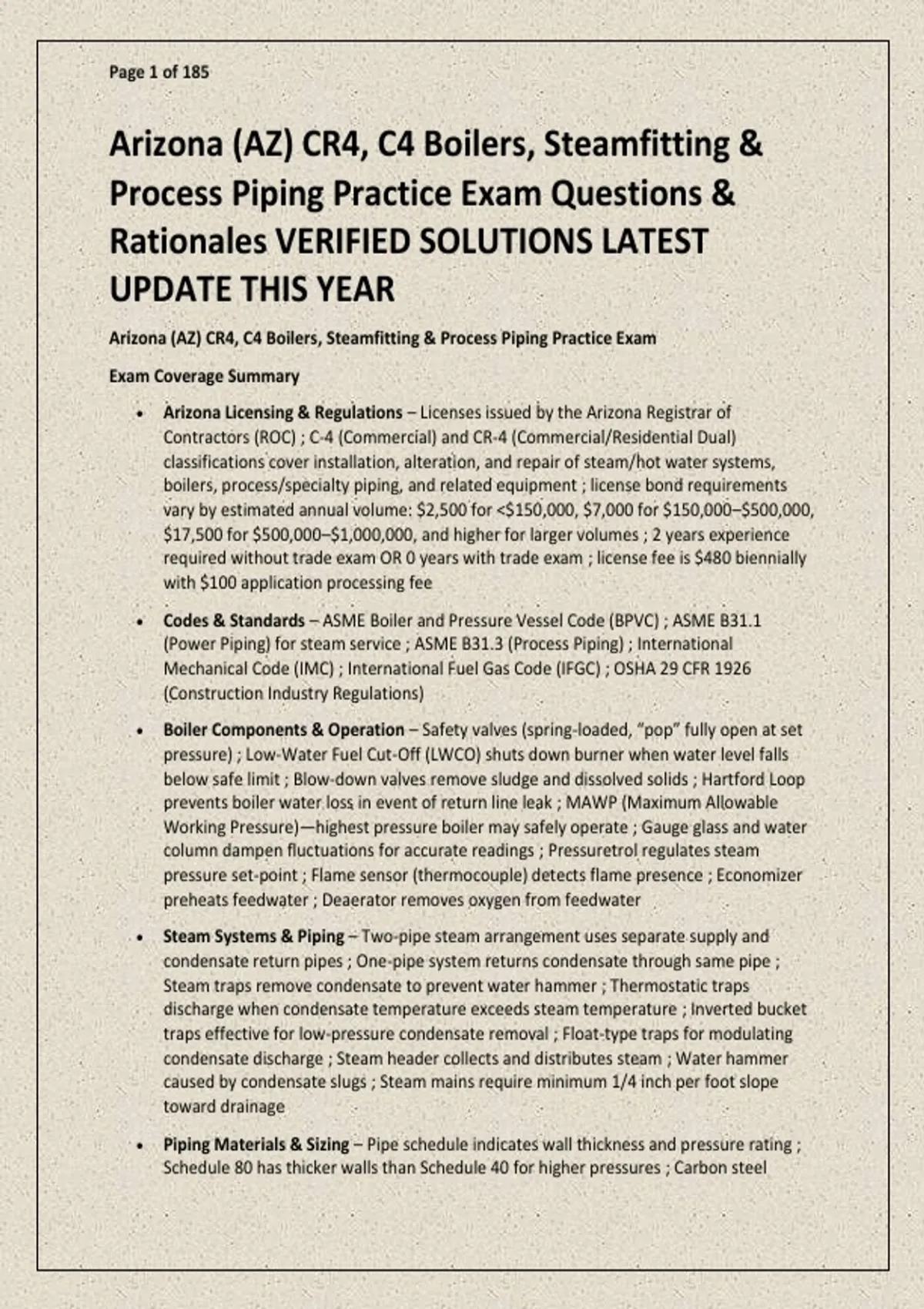

Page 1 of 185
Arizona (AZ) CR4, C4 Boilers, Steamfitting &
Process Piping Practice Exam Questions &
Rationales VERIFIED SOLUTIONS LATEST
UPDATE THIS YEAR
Arizona (AZ) CR4, C4 Boilers, Steamfitting & Process Piping Practice Exam
Exam Coverage Summary
• Arizona Licensing & Regulations – Licenses issued by the Arizona Registrar of
Contractors (ROC) ; C-4 (Commercial) and CR-4 (Commercial/Residential Dual)
classifications cover installation, alteration, and repair of steam/hot water systems,
boilers, process/specialty piping, and related equipment ; license bond requirements
vary by estimated annual volume: $2,500 for <$150,000, $7,000 for $150,000–$500,000,
$17,500 for $500,000–$1,000,000, and higher for larger volumes ; 2 years experience
required without trade exam OR 0 years with trade exam ; license fee is $480 biennially
with $100 application processing fee
• Codes & Standards – ASME Boiler and Pressure Vessel Code (BPVC) ; ASME B31.1
(Power Piping) for steam service ; ASME B31.3 (Process Piping) ; International
Mechanical Code (IMC) ; International Fuel Gas Code (IFGC) ; OSHA 29 CFR 1926
(Construction Industry Regulations)
• Boiler Components & Operation – Safety valves (spring-loaded, “pop” fully open at set
pressure) ; Low-Water Fuel Cut-Off (LWCO) shuts down burner when water level falls
below safe limit ; Blow-down valves remove sludge and dissolved solids ; Hartford Loop
prevents boiler water loss in event of return line leak ; MAWP (Maximum Allowable
Working Pressure)—highest pressure boiler may safely operate ; Gauge glass and water
column dampen fluctuations for accurate readings ; Pressuretrol regulates steam
pressure set-point ; Flame sensor (thermocouple) detects flame presence ; Economizer
preheats feedwater ; Deaerator removes oxygen from feedwater
• Steam Systems & Piping – Two-pipe steam arrangement uses separate supply and
condensate return pipes ; One-pipe system returns condensate through same pipe ;
Steam traps remove condensate to prevent water hammer ; Thermostatic traps
discharge when condensate temperature exceeds steam temperature ; Inverted bucket
traps effective for low-pressure condensate removal ; Float-type traps for modulating
condensate discharge ; Steam header collects and distributes steam ; Water hammer
caused by condensate slugs ; Steam mains require minimum 1/4 inch per foot slope
toward drainage
• Piping Materials & Sizing – Pipe schedule indicates wall thickness and pressure rating ;
Schedule 80 has thicker walls than Schedule 40 for higher pressures ; Carbon steel
,Page 2 of 185
(ASTM A53 Grade B) for high-temperature steam (up to 500°F) ; Stainless steel 304 for
corrosive chemicals up to 150°F ; Chrome-Moly alloy for high-temperature/high-
pressure service ; Dielectric unions prevent galvanic corrosion between dissimilar
metals ; Galvanized steel is prohibited for fuel-gas piping
• Valves – Safety valve: spring-loaded, prevents over-pressure by releasing steam at
MAWP ; Gate valve: for fully open or fully closed service only ; Globe valve: for throttling
flow control ; Check valve: allows flow in only one direction ; Ball valve: quarter-turn for
isolation ; Pressure relief valve set pressure based on MAWP
• Boiler Types & Classifications – Fire-tube boiler: combustion gases pass through tubes
surrounded by water ; Water-tube boiler: water circulates in tubes surrounded by hot
gases; handles higher pressures ; Low-pressure steam boiler: maximum 15 psi (ASME
Section IV / IMC) ; High-pressure boiler: greater than 15 psi ; Low-pressure hot water
boiler: maximum 160 psi or 250°F
• Testing & Inspection – Hydrostatic test: 1.5 × MAWP for new boilers ; Process piping per
ASME B31.3: 1.5 × design pressure ; ASME B31.1 steam piping: 1.5 × design pressure ;
Pneumatic test: 1.25 × design pressure, maximum 150 psi ; Safety valve testing required
at least monthly ; Gas piping: soap-bubble test under low pressure for leak detection ;
Boiler inspections required to detect leaks and corrosion
• Combustion & Fuels – Natural gas common fuel for industrial and residential boilers ;
Draft pressure for atmospheric boiler: -0.01 to -0.05 inches WC (slight vacuum) ;
Breeching connects boiler exhaust to chimney ; Flue gas: exhaust from combustion
process ; Draft regulator maintains constant flue gas velocity ; Combustion air opening:
4 sq in. per 1,000 BTU/hr minimum ; CO limit: maximum 400 ppm in flue gas
• Safety & PPE – 29 CFR 1926.251 covers PPE for welding (helmets, gloves, eye
protection) ; Confined space entry requires continuous atmospheric monitoring ;
Minimum clearance for steam pipes from combustibles: 4 inches ; Minimum clearance
for boiler from combustible wall: 6–36 inches depending on code ; Lock-out/Tag-out
(LOTO) required for maintenance ; Hot work permits required for welding/brazing ;
Personal protective equipment (PPE) for rigging and boiler work
• Pump & Condensate Systems – Feedwater pump capacity: minimum 125% of maximum
evaporation rate ; Condensate return saves energy and chemical costs ; Boiler
feedwater treatment: deaeration, softening, filtration (chlorination is NOT used) ;
Oxygen pitting caused by dissolved oxygen in feedwater ; Boiler scale: mineral buildup
from hardness in feedwater ; TDS limit: maximum 3500 ppm total dissolved solids
QUESTIONS 1–100
,Page 3 of 185
Question 1
Which component of a low-pressure fire-tube boiler prevents over-pressure by releasing steam
when the set pressure is exceeded?
A) Gauge glass
B) Low-water cutoff
C) Safety valve
D) Blow-off valve
Answer: C
The safety valve is a spring-loaded device that opens at a predetermined pressure to protect the
boiler from exceeding its MAWP .
Question 2
In a steam heating system, a two-pipe arrangement uses which configuration?
A) One pipe for both supply and return steam
, Page 4 of 185
B) Separate pipes for supply steam and condensate return
C) One pipe for hot water and one for cold water
D) Two parallel steam supply lines only
Answer: B
A two-pipe steam system has a dedicated steam supply pipe and a separate condensate return
pipe, allowing better control and reduced condensate carryover .
Question 3
The term "MAWP" stands for:
A) Maximum Allowable Working Pressure
B) Minimum Authorized Water Pressure
C) Maximum Authorized Water Pump
D) Minimum Allowable Wind Pressure
Answer: A
