AVIXA CTS-D: Determine Image Specifications Questions and Answers with Verified Solutions | Latest 2026 Update

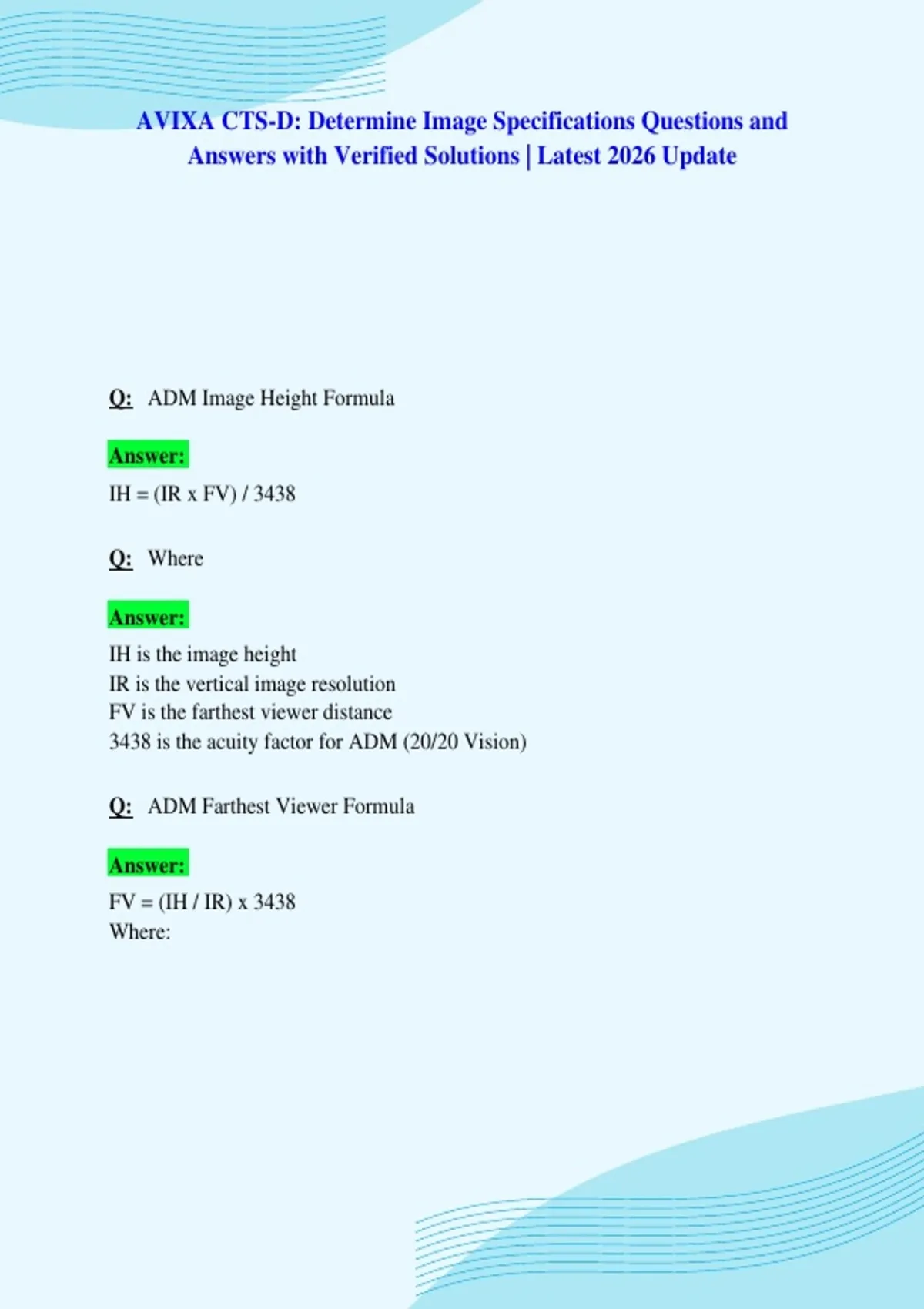

AVIXA CTS-D: Determine Image Specifications Questions and
Answers with Verified Solutions | Latest 2026 Update




Q: ADM Image Height Formula

Answer:
IH = (IR x FV) / 3438

Q: Where

Answer:
IH is the image height
IR is the vertical image resolution
FV is the farthest viewer distance
3438 is the acuity factor for ADM (20/20 Vision)

Q: ADM Farthest Viewer Formula

Answer:
FV = (IH / IR) x 3438
Where:

, AVIXA CTS-D: Determine Image Specifications Questions and
Answers with Verified Solutions | Latest 2026 Update




Q: FV is the farthest viewer distance

Answer:


Q: IR is the vertical image resolution

Answer:


Q: IH is the image height

Answer:


Q: 3438 is the acuity factor for ADM

Answer:

, AVIXA CTS-D: Determine Image Specifications Questions and
Answers with Verified Solutions | Latest 2026 Update




Q: BDM Image Height Formula

Answer:
H = FV / (200 x %EH)
Where:

Q: IH is the minimum image height for the space

Answer:


Q: FV is the farthest distance a viewer will be from the image

Answer:


Q: %EH is the percent element height, which is the height of the element being
viewed expressed

Answer:
as a percentage of overall image height
