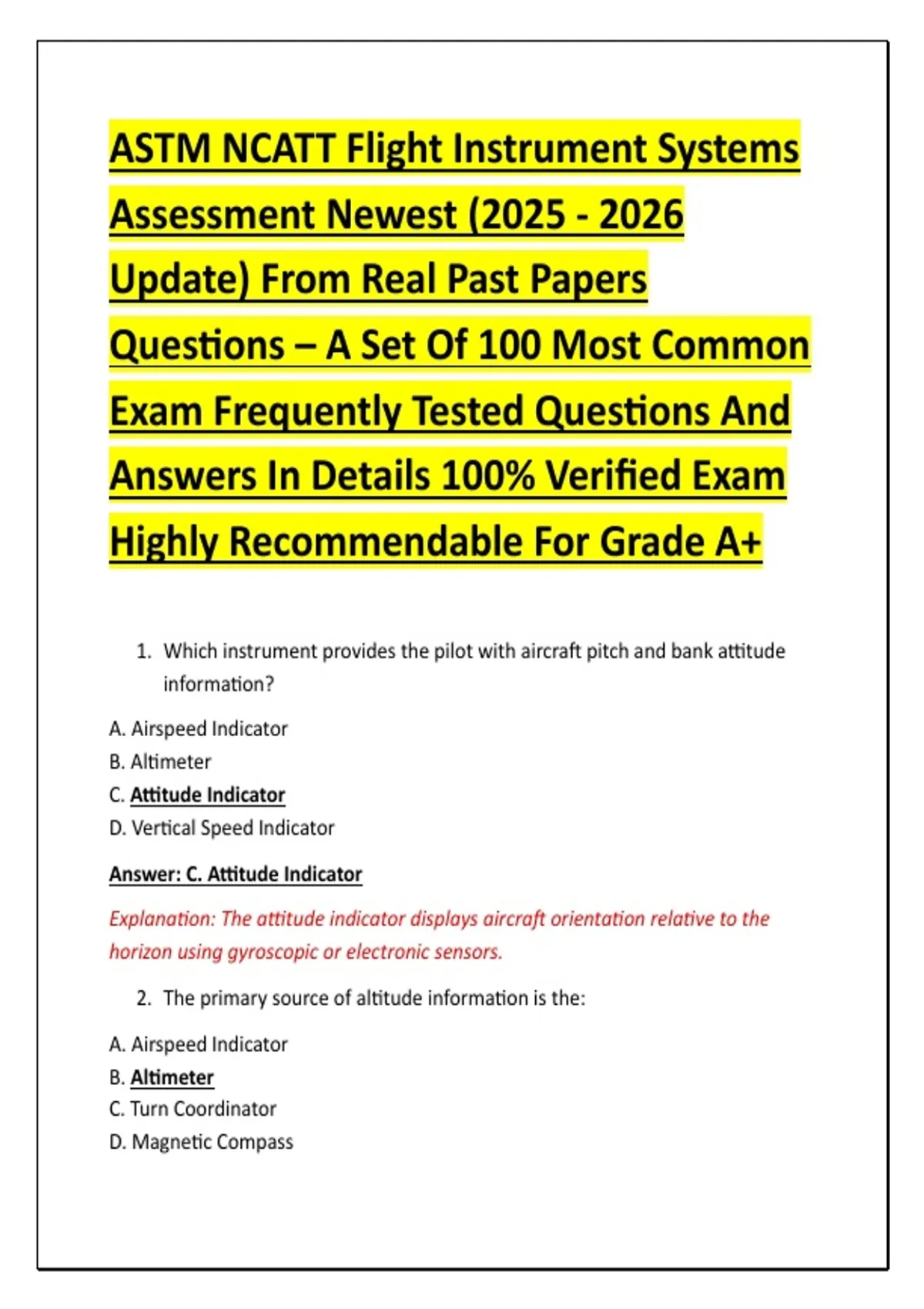

ASTM NCATT Flight Instrument Systems Assessment Newest ( Update) From Real Past Papers Questions – A Set Of 100 Most Common Exam Frequently Tested Questions And Answers In Details 100% Verified Exam Highly Recommendable For Grade A+

ASTM NCATT Flight Instrument Systems
Assessment Newest (2025 - 2026
Update) From Real Past Papers
Questions – A Set Of 100 Most Common
Exam Frequently Tested Questions And
Answers In Details 100% Verified Exam
Highly Recommendable For Grade A+

1. Which instrument provides the pilot with aircraft pitch and bank attitude
information?
A. Airspeed Indicator
B. Altimeter
C. Attitude Indicator
D. Vertical Speed Indicator
Answer: C. Attitude Indicator
Explanation: The attitude indicator displays aircraft orientation relative to the
horizon using gyroscopic or electronic sensors.
2. The primary source of altitude information is the:
A. Airspeed Indicator
B. Altimeter
C. Turn Coordinator
D. Magnetic Compass

,Answer: B. Altimeter
Explanation: The altimeter measures atmospheric pressure to determine aircraft
altitude.
3. Which instrument measures the aircraft's speed through the air?
A. Heading Indicator
B. Vertical Speed Indicator
C. Airspeed Indicator
D. Turn Coordinator
Answer: C. Airspeed Indicator
Explanation: The airspeed indicator uses pitot and static pressure to display
indicated airspeed.
4. The Vertical Speed Indicator measures:
A. Ground speed
B. Airspeed
C. Rate of climb or descent
D. Pitch angle
Answer: C. Rate of climb or descent
Explanation: The VSI measures changes in static pressure to indicate vertical
speed.
5. The altimeter receives pressure from the:
A. Pitot tube only
B. Engine manifold
C. Static port
D. Fuel vent
Answer: C. Static port
Explanation: Only static pressure is used to operate the altimeter.
6. The airspeed indicator requires:

, A. Static pressure only
B. Cabin pressure only
C. Pitot and static pressure
D. Hydraulic pressure
Answer: C. Pitot and static pressure
Explanation: Airspeed is determined from the difference between pitot and static
pressures.
7. A blocked pitot tube primarily affects the:
A. Altimeter
B. VSI
C. Airspeed Indicator
D. Compass
Answer: C. Airspeed Indicator
Explanation: The pitot tube provides ram air pressure necessary for airspeed
indication.
8. If the static port becomes blocked, which instrument is least affected?
A. Altimeter
B. VSI
C. Magnetic Compass
D. Airspeed Indicator
Answer: C. Magnetic Compass
Explanation: The magnetic compass operates independently of the pitot-static
system.
9. Which instrument displays aircraft heading using a gyroscope?
A. Magnetic Compass
B. Heading Indicator
C. Altimeter
D. VSI
