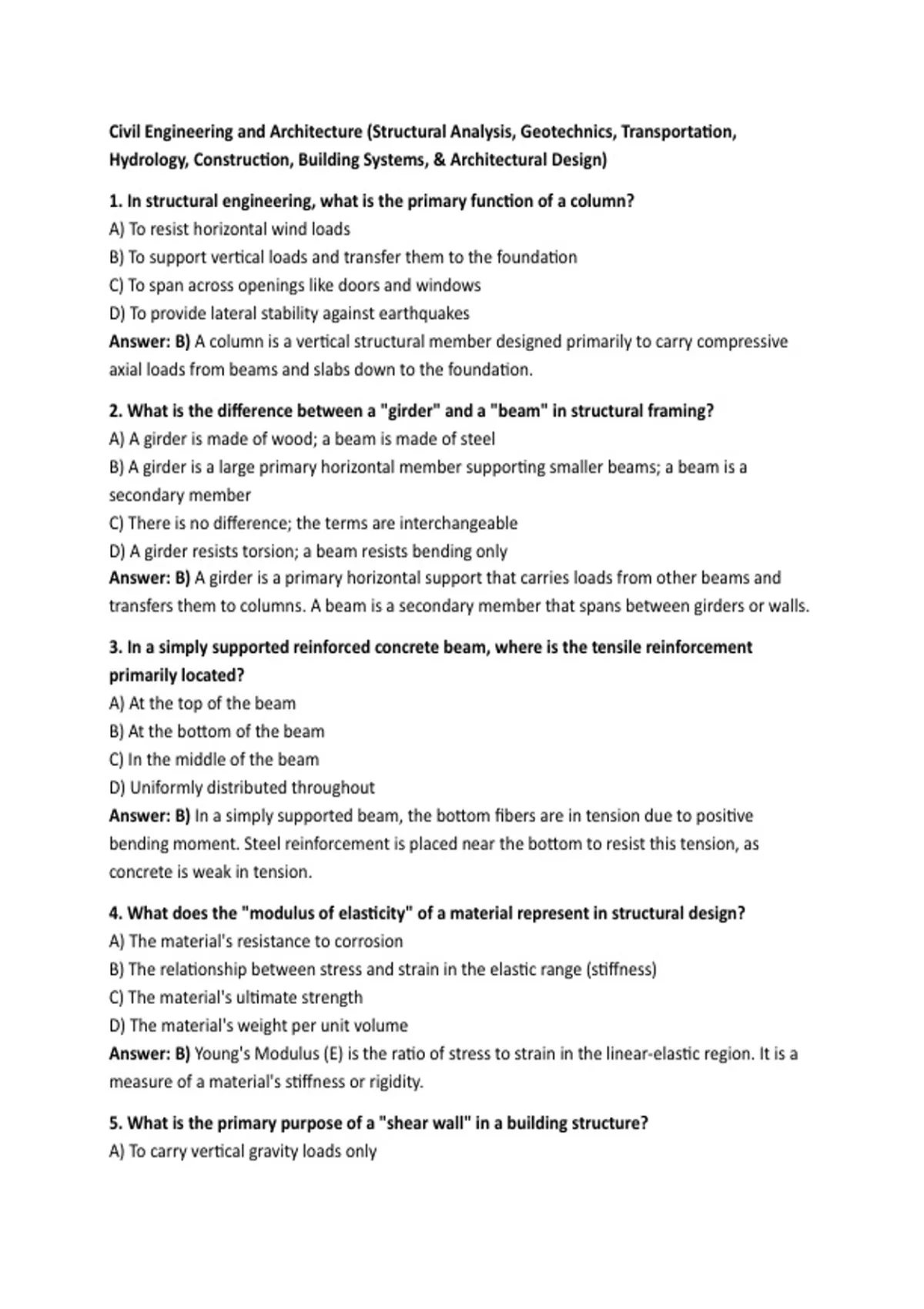

Civil Engineering and Architecture (Structural Analysis, Geotechnics, Transportation,
Hydrology, Construction, Building Systems, & Architectural Design)
1. In structural engineering, what is the primary function of a column?
A) To resist horizontal wind loads
B) To support vertical loads and transfer them to the foundation
C) To span across openings like doors and windows
D) To provide lateral stability against earthquakes
Answer: B) A column is a vertical structural member designed primarily to carry compressive
axial loads from beams and slabs down to the foundation.
2. What is the difference between a "girder" and a "beam" in structural framing?
A) A girder is made of wood; a beam is made of steel
B) A girder is a large primary horizontal member supporting smaller beams; a beam is a
secondary member
C) There is no difference; the terms are interchangeable
D) A girder resists torsion; a beam resists bending only
Answer: B) A girder is a primary horizontal support that carries loads from other beams and
transfers them to columns. A beam is a secondary member that spans between girders or walls.
3. In a simply supported reinforced concrete beam, where is the tensile reinforcement
primarily located?
A) At the top of the beam
B) At the bottom of the beam
C) In the middle of the beam
D) Uniformly distributed throughout
Answer: B) In a simply supported beam, the bottom fibers are in tension due to positive
bending moment. Steel reinforcement is placed near the bottom to resist this tension, as
concrete is weak in tension.
4. What does the "modulus of elasticity" of a material represent in structural design?
A) The material's resistance to corrosion
B) The relationship between stress and strain in the elastic range (stiffness)
C) The material's ultimate strength
D) The material's weight per unit volume
Answer: B) Young's Modulus (E) is the ratio of stress to strain in the linear-elastic region. It is a
measure of a material's stiffness or rigidity.
5. What is the primary purpose of a "shear wall" in a building structure?
A) To carry vertical gravity loads only
,B) To provide lateral resistance against wind and seismic forces
C) To act as a decorative architectural element
D) To support the roof membrane
Answer: B) Shear walls are vertical, rigid walls that resist in-plane horizontal forces, providing
lateral stability to the building and preventing excessive sway.
6. In the AISC Steel Construction Manual, what does "W" in a W-shape designation (e.g.,
W14x22) indicate?
A) Wide flange shape
B) Welded shape
C) Weight per foot in kilograms
D) Wind-resistant shape
Answer: A) "W" stands for Wide Flange, a common structural steel shape with a wide flange
and a web, used for beams and columns.
7. A column is classified as "short" vs. "long" based on which parameter?
A) Its cross-sectional area
B) Its slenderness ratio (KL/r)
C) The material strength
D) The load magnitude
Answer: B) The slenderness ratio (KL/r) determines whether a column fails by crushing (short
column) or by buckling (long/slender column). Euler's buckling formula applies to long columns.
8. What is the "neutral axis" in a beam under pure bending?
A) The axis at the top of the beam
B) The axis at the bottom of the beam
C) The axis where the bending stress is zero
D) The axis where the shear stress is maximum
Answer: C) The neutral axis passes through the centroid of the cross-section. Longitudinal fibers
along this axis experience no strain or stress under pure bending.
9. What is the primary purpose of "camber" in a structural steel beam?
A) To increase the beam's load capacity
B) To offset dead load deflection and maintain a level surface
C) To improve the beam's fire resistance
D) To reduce the beam's weight
Answer: B) Camber is a slight upward curvature built into a beam to counteract the downward
deflection caused by dead loads, ensuring the finished floor remains level.
, 10. In foundation design, what is "bearing capacity"?
A) The ability of the soil to support the loads from the structure without failure
B) The weight of the structure per unit area
C) The depth of the foundation below ground
D) The shear strength of the concrete
Answer: A) Bearing capacity is the maximum average contact pressure between a foundation
and the soil that will not cause shear failure in the soil. It is a critical geotechnical parameter.
11. What type of foundation is most suitable for a structure with heavy loads and weak
surface soils?
A) Spread footing (isolated footing)
B) Strip footing
C) Mat foundation (raft foundation)
D) Pile foundation
Answer: D) Pile foundations (deep foundations) transfer loads through weak surface soils to
stronger, deeper strata (soil or rock) via end bearing and skin friction.
12. In soil mechanics, what is "liquefaction"?
A) The process of water filtering through soil
B) The sudden loss of shear strength in saturated, loose, granular soils due to seismic shaking
C) The consolidation of clay soils over time
D) The expansion of expansive clays when wet
Answer: B) Liquefaction occurs when earthquake-induced pore water pressure increases,
effectively "floating" the soil particles and causing it to behave like a liquid, which can severely
damage structures.
13. What is the Atterberg Limits test used to determine?
A) The strength of concrete
B) The water content at which fine-grained soils transition between states (plastic, liquid, etc.)
C) The permeability of sandy soils
D) The compaction characteristics of gravel
Answer: B) Atterberg Limits (Liquid Limit, Plastic Limit, Shrinkage Limit) characterize the
consistency of fine-grained soils (clays and silts) and are used for classification.
14. What is the purpose of the "Standard Proctor Compaction Test"?
A) To determine the optimum moisture content and maximum dry density of a soil
B) To measure the bearing capacity of the soil
C) To determine the shear strength of the soil
D) To classify the soil type
