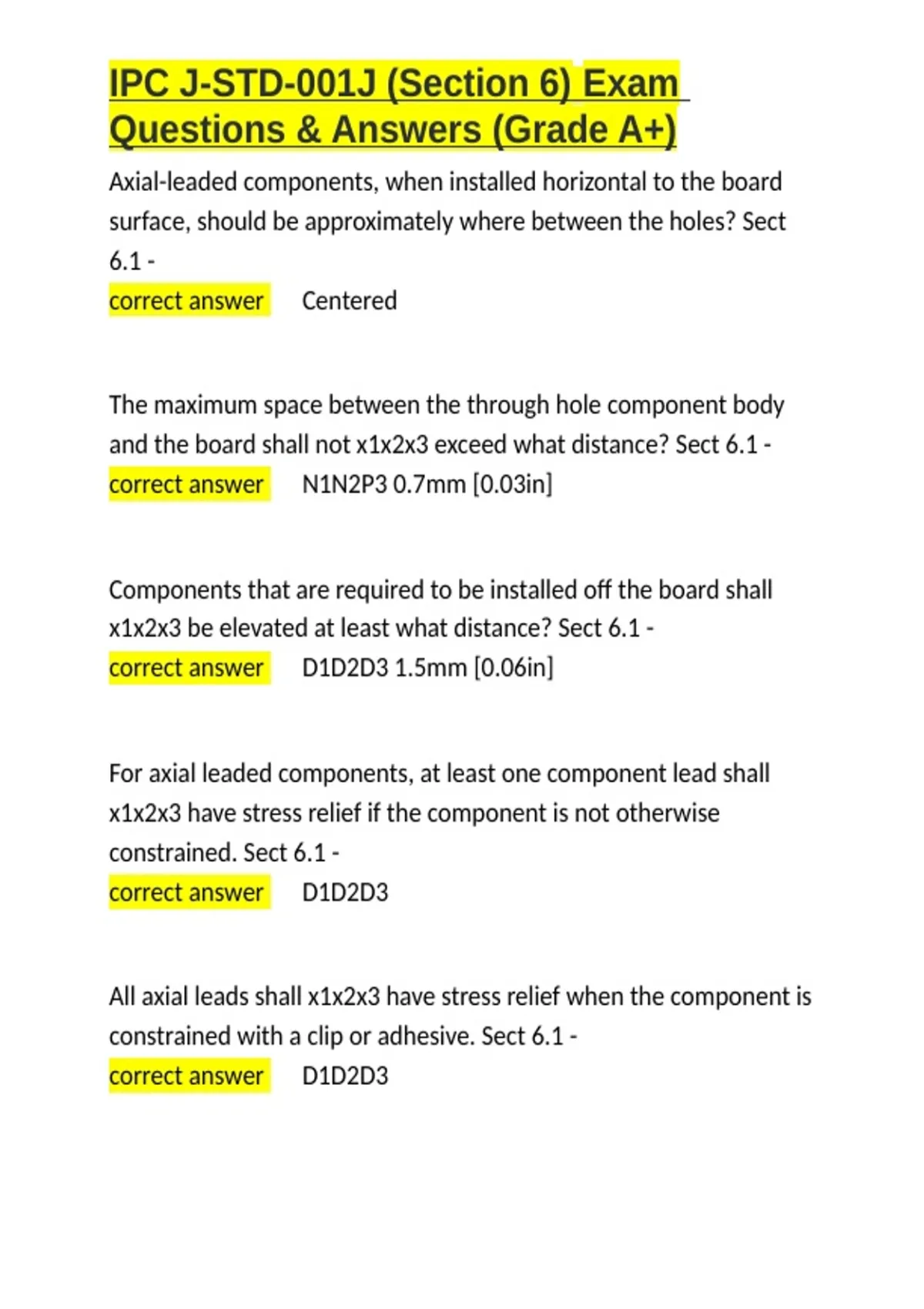

IPC J-STD-001J (Section 6) Exam
Questions & Answers (Grade A+)
Axial-leaded components, when installed horizontal to the board
surface, should be approximately where between the holes? Sect
6.1 -
correct answer ✅Centered
The maximum space between the through hole component body
and the board shall not x1x2x3 exceed what distance? Sect 6.1 -
correct answer ✅N1N2P3 0.7mm [0.03in]
Components that are required to be installed off the board shall
x1x2x3 be elevated at least what distance? Sect 6.1 -
correct answer ✅D1D2D3 1.5mm [0.06in]
For axial leaded components, at least one component lead shall
x1x2x3 have stress relief if the component is not otherwise
constrained. Sect 6.1 -
correct answer ✅D1D2D3
All axial leads shall x1x2x3 have stress relief when the component is
constrained with a clip or adhesive. Sect 6.1 -
correct answer ✅D1D2D3
, IPC J-STD-001J (Section 6) Exam
Questions & Answers (Grade A+)
Components installed in unsupported holes shall x1x2x3 be
installed with lead forms or other mechanical support. Sect 6.1 -
correct answer ✅D1D2D3
The requirements for a through-hole component with spacer when
the spacer is inverted is x1x2x3. Table 6-2 -
correct answer ✅N1D2D3
The minimum component clearance from the land to the body or
weld bead for all classes is what distance? Table 6-1 -
correct answer ✅0.1mm [0.004in] (Class 1)
The requirements for a through-hole component with spacer when
the spacer is not touching either the board or component is x1x2x3.
Table 6-2 -
correct answer ✅A1P2D3
During the lead forming process for a Class 2 device, one of the lead
seals is damaged. This condition would be classified as [blank]. Sect
6.1.1 -
correct answer ✅Defect (D1D2D3)
Questions & Answers (Grade A+)
Axial-leaded components, when installed horizontal to the board
surface, should be approximately where between the holes? Sect
6.1 -
correct answer ✅Centered
The maximum space between the through hole component body
and the board shall not x1x2x3 exceed what distance? Sect 6.1 -
correct answer ✅N1N2P3 0.7mm [0.03in]
Components that are required to be installed off the board shall
x1x2x3 be elevated at least what distance? Sect 6.1 -
correct answer ✅D1D2D3 1.5mm [0.06in]
For axial leaded components, at least one component lead shall
x1x2x3 have stress relief if the component is not otherwise
constrained. Sect 6.1 -
correct answer ✅D1D2D3
All axial leads shall x1x2x3 have stress relief when the component is
constrained with a clip or adhesive. Sect 6.1 -
correct answer ✅D1D2D3
, IPC J-STD-001J (Section 6) Exam
Questions & Answers (Grade A+)
Components installed in unsupported holes shall x1x2x3 be
installed with lead forms or other mechanical support. Sect 6.1 -
correct answer ✅D1D2D3
The requirements for a through-hole component with spacer when
the spacer is inverted is x1x2x3. Table 6-2 -
correct answer ✅N1D2D3
The minimum component clearance from the land to the body or
weld bead for all classes is what distance? Table 6-1 -
correct answer ✅0.1mm [0.004in] (Class 1)
The requirements for a through-hole component with spacer when
the spacer is not touching either the board or component is x1x2x3.
Table 6-2 -
correct answer ✅A1P2D3
During the lead forming process for a Class 2 device, one of the lead
seals is damaged. This condition would be classified as [blank]. Sect
6.1.1 -
correct answer ✅Defect (D1D2D3)
