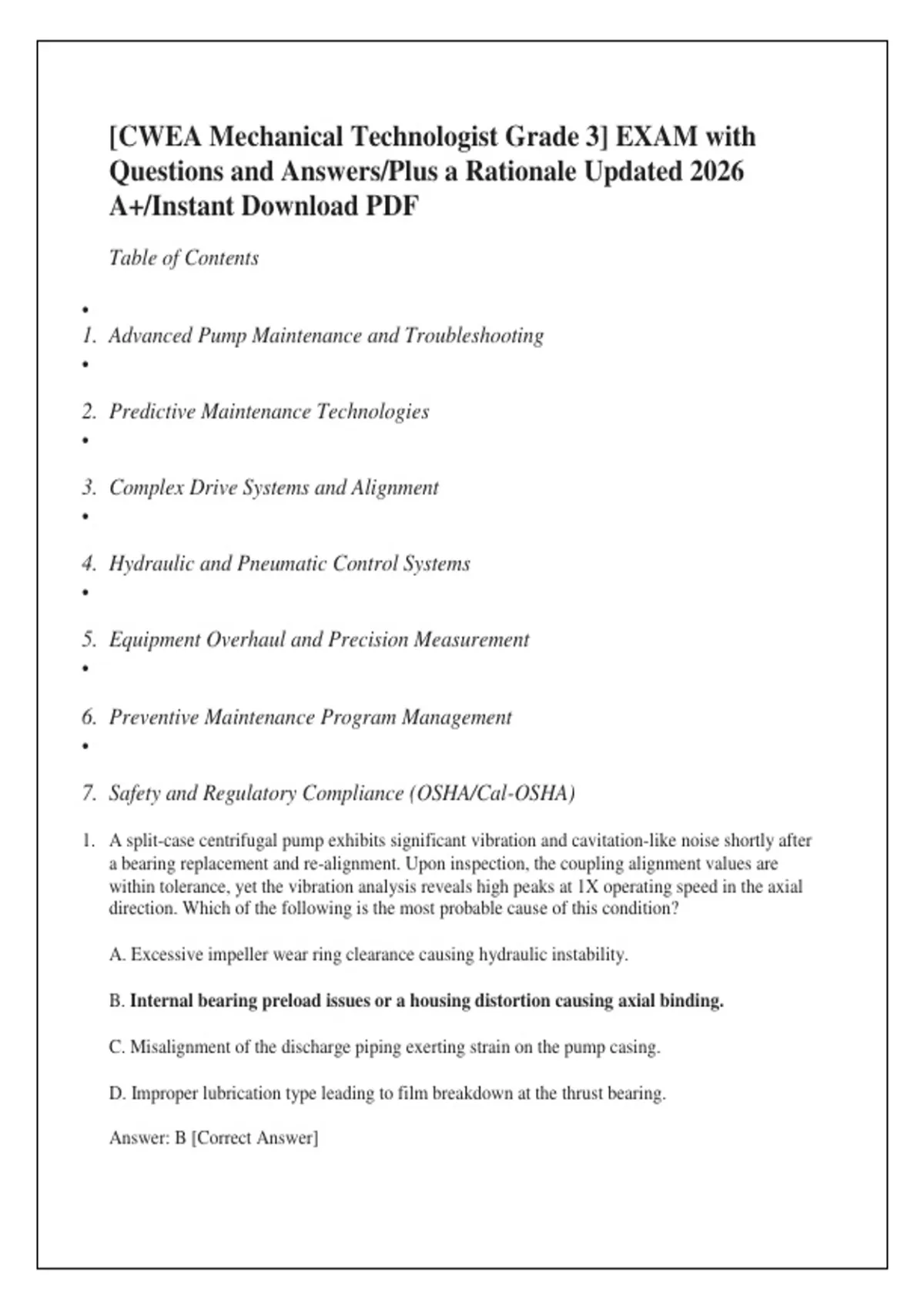

[CWEA Mechanical Technologist Grade 3] EXAM with
Questions and Answers/Plus a Rationale Updated 2026
A+/Instant Download PDF
Table of Contents
1. Advanced Pump Maintenance and Troubleshooting
2. Predictive Maintenance Technologies
3. Complex Drive Systems and Alignment
4. Hydraulic and Pneumatic Control Systems
5. Equipment Overhaul and Precision Measurement
6. Preventive Maintenance Program Management
7. Safety and Regulatory Compliance (OSHA/Cal-OSHA)
1. A split-case centrifugal pump exhibits significant vibration and cavitation-like noise shortly after
a bearing replacement and re-alignment. Upon inspection, the coupling alignment values are
within tolerance, yet the vibration analysis reveals high peaks at 1X operating speed in the axial
direction. Which of the following is the most probable cause of this condition?
A. Excessive impeller wear ring clearance causing hydraulic instability.
B. Internal bearing preload issues or a housing distortion causing axial binding.
C. Misalignment of the discharge piping exerting strain on the pump casing.
D. Improper lubrication type leading to film breakdown at the thrust bearing.
Answer: B [Correct Answer]
, Rationale: High 1X vibration in the axial direction often indicates mechanical binding or
internal stress rather than purely hydraulic issues. While wear rings (A) cause radial instability
and piping strain (C) would show up as 2X or 1X radial vibration, axial binding caused by
housing distortion or improper bearing installation directly forces the shaft into an axial
oscillation at rotating frequency. Lubrication issues (D) typically manifest as higher-frequency
bearing fault frequencies.
2. During an overhaul of a vertical turbine pump, you detect a slight "wobble" in the bowl assembly
shaft alignment. After measuring the runout, you find it exceeds manufacturer specifications by
0.005 inches. Given the critical nature of this equipment, which sequence of corrective actions is
most appropriate?
A. Shimming the motor base to compensate for the shaft deflection before final bolting.
B. Straightening the shaft using a hydraulic press and dial indicators, followed by re-
verification of runout.
C. Replacing the bowl bearings with high-clearance bushings to accommodate the existing shaft
deflection.
D. Grinding the shaft to a smaller diameter to remove the stress riser and re-bushing the pump
bowl.
Answer: B [Correct Answer]
Rationale: Precision mechanical maintenance requires restoring components to original
specifications rather than compensating for defects. Shimming the motor (A) does not correct the
internal shaft runout, and using high-clearance bushings (C) promotes premature wear and
vibration. Grinding the shaft (D) would compromise the structural integrity and fit of the sealing
surfaces.
3. A facility is transitioning from reactive maintenance to a Reliability Centered Maintenance
(RCM) model. You are tasked with determining the failure modes for a critical high-head sludge
pump. Which tool provides the most comprehensive analysis for identifying the interaction
between component degradation and system performance loss?
A. Root Cause Analysis (RCA) conducted after each unplanned shutdown.
B. Failure Mode, Effects, and Criticality Analysis (FMECA).
C. Periodic vibration spectrum analysis trending.
D. Spare parts inventory turnover assessment.
Answer: B [Correct Answer]
, Rationale: FMECA is the primary systematic method used in RCM to identify how failures occur
and their consequences on system safety and availability. While RCA (A) is reactive and useful
after the fact, and vibration analysis (C) is a monitoring tool, FMECA provides the proactive
framework necessary to design maintenance tasks that mitigate risks before they manifest.
4. While performing precision laser alignment on a close-coupled motor-pump set, the "soft foot"
check reveals a significant vertical gap under one of the motor feet. What is the correct
procedure to address this condition?
A. Tighten the bolts on the foot with the gap until the gap is closed to minimize stress.
B. Identify the specific foot causing the soft foot, shim it precisely until the foot load is
stabilized, and re-check.
C. Force the motor frame into alignment using the anchor bolts and then lock the jam nuts.
D. Replace the motor mounting bolts with high-tensile steel bolts to ensure a tighter pull-down.
Answer: B [Correct Answer]
Rationale: Soft foot creates structural distortion and internal misalignment that cannot be
corrected by simple tightening. Forcing the frame (C) or tightening (A) only induces casing
strain and potential bearing housing misalignment. Proper shimming (B) ensures the equipment
sits naturally on its foundation, allowing for true alignment.
5. A mechanical seal on a high-pressure pump keeps failing prematurely after 200 hours of
operation. The seal faces show signs of heat checking and carbon blistering. What is the most
likely culprit, and how should it be investigated?
A. Check the seal flush plan integrity and ensure the buffer fluid temperature/pressure is
within the design window.
B. Replace the seal faces with a harder material, such as tungsten carbide, to prevent thermal
degradation.
C. Increase the spring tension on the seal gland to ensure a tighter seal and prevent leaking.
D. Decrease the pump operating speed to reduce the frictional heat generated at the seal faces.
Answer: A [Correct Answer]
Rationale: Heat checking and carbon blistering are definitive indicators of thermal stress caused
by insufficient lubrication or cooling at the seal interface. The flush plan (A) is designed to
manage this environment; if it fails, the seal faces overheat. Increasing tension (C) exacerbates
heat generation, while changing materials (B) ignores the root cause.
, 6. You are evaluating the condition of a mechanical gear reducer that powers a large bar screen.
The oil analysis report indicates elevated levels of iron, chromium, and copper. What is the most
immediate mechanical concern?
A. The gear oil has reached its end of life and requires an immediate change-out.
B. The gear teeth are experiencing adhesive wear, and internal bearing surfaces are likely
compromised.
C. The motor driving the gear reducer is running too hot, causing the transmission of heat to the
oil.
D. The system is operating within normal parameters as these elements are common additives.
Answer: B [Correct Answer]
Rationale: Iron and chromium typically signify wear of ferrous components like gear teeth, while
copper points to wear on brass/bronze cage components in bearings. This combination confirms
internal mechanical degradation. An oil change (A) would mask the issue, and these elements
are not typical additives (D).
7. During the installation of a new V-belt drive for a blower, you must ensure maximum service
life. Which of the following is the standard best practice for tensioning?
A. Tighten the belts until they exhibit zero deflection when pressed with a thumb.
B. Apply the manufacturer-recommended force and verify deflection using a tensiometer at
the belt span midpoint.
C. Tension the belt to be loose enough to slip slightly during start-up to prevent motor overload.
D. Use a belt dressing spray to increase friction and reduce the need for high tension.
Answer: B [Correct Answer]
Rationale: Proper tension (B) is critical to prevent belt stretch and bearing overload. Over-
tensioning (A) ruins bearings, while slipping (C) causes heat and premature belt failure. Belt
dressing (D) is generally discouraged as it can lead to belt damage and does not address the
fundamental tension requirement.
8. When troubleshooting a variable frequency drive (VFD) driven pump that trips on "Overcurrent"
during acceleration, but operates normally at steady state, what is the most likely mechanical
cause?
A. The VFD parameters are set too low for the pump's torque curve.
