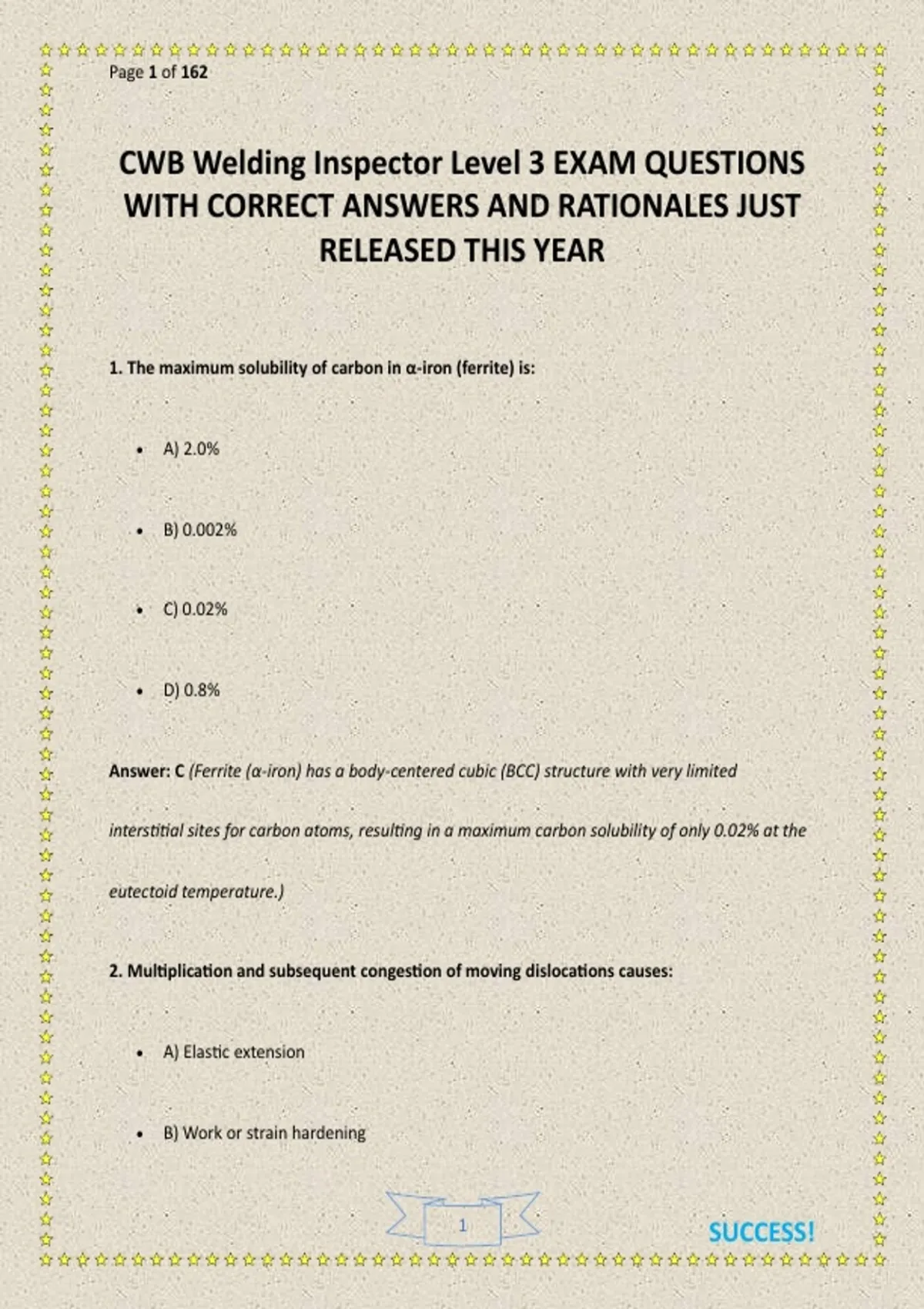

Page 1 of 162
CWB Welding Inspector Level 3 EXAM QUESTIONS
WITH CORRECT ANSWERS AND RATIONALES JUST
RELEASED THIS YEAR
1. The maximum solubility of carbon in α-iron (ferrite) is:
• A) 2.0%
• B) 0.002%
• C) 0.02%
• D) 0.8%
Answer: C (Ferrite (α-iron) has a body-centered cubic (BCC) structure with very limited
interstitial sites for carbon atoms, resulting in a maximum carbon solubility of only 0.02% at the
eutectoid temperature.)
2. Multiplication and subsequent congestion of moving dislocations causes:
• A) Elastic extension
• B) Work or strain hardening
1
SUCCESS!
,Page 2 of 162
• C) A drop in the yield stress
• D) Increased ductility
Answer: B (As dislocations multiply and become congested during plastic deformation, they
impede each other's movement, requiring increasing stress for continued deformation—this is
the fundamental mechanism of strain hardening.)
3. The hardness of martensite depends mainly on the:
• A) Alloy content
• B) Rate of cooling
• C) Carbon content
• D) Size of the part
Answer: C (The hardness of martensite is primarily determined by the carbon content. Higher
carbon content causes greater tetragonal distortion of the body-centered tetragonal (BCT)
lattice, resulting in higher hardness.)
4. Can bainite normally be produced in continuous cooling of a plain carbon steel?
• A) Yes, always
2
SUCCESS!
,Page 3 of 162
• B) No
• C) Yes, but only with very slow cooling
• D) Yes, but only with very rapid cooling
Answer: B (Bainite typically requires isothermal transformation (holding at a constant
temperature between the pearlite and martensite transformation ranges). Continuous cooling
does not normally produce bainite in plain carbon steels.)
5. The iron-carbon phase diagram shows that the eutectoid composition is approximately:
• A) 0.02% carbon
• B) 0.77% carbon
• C) 2.0% carbon
• D) 4.3% carbon
Answer: B (The eutectoid composition is approximately 0.77% carbon. At this composition,
austenite transforms directly to pearlite (fine lamellar mixture of ferrite and cementite) upon
cooling.)
6. Pearlite is a lamellar mixture of:
3
SUCCESS!
, Page 4 of 162
• A) Ferrite and austenite
• B) Ferrite and cementite
• C) Austenite and cementite
• D) Martensite and ferrite
Answer: B (Pearlite consists of alternating lamellae of ferrite (α-iron) and cementite (Fe₃C). It
forms from the eutectoid decomposition of austenite.)
7. The transformation of austenite to martensite is:
• A) Diffusion-dependent
• B) Diffusionless (shear transformation)
• C) Isothermal
• D) Reversible
Answer: B (Martensitic transformation is diffusionless and occurs by a shear mechanism. It does
not require diffusion of atoms and is virtually instantaneous upon cooling below the martensite
start (Ms) temperature.)
4
SUCCESS!
