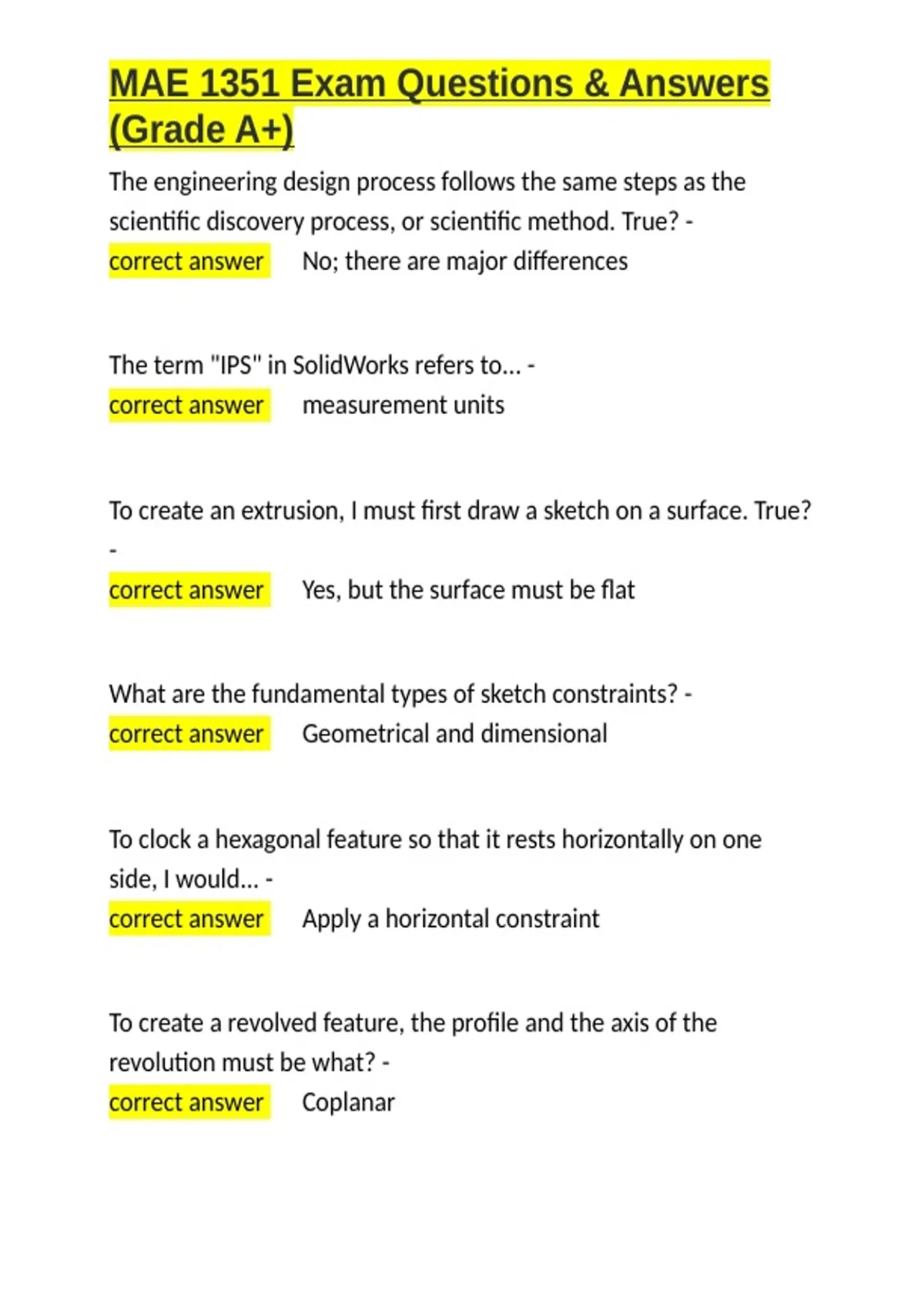

MAE 1351 Exam Questions & Answers
(Grade A+)
The engineering design process follows the same steps as the
scientific discovery process, or scientific method. True? -
correct answer ✅No; there are major differences
The term "IPS" in SolidWorks refers to... -
correct answer ✅measurement units
To create an extrusion, I must first draw a sketch on a surface. True?
-
correct answer ✅Yes, but the surface must be flat
What are the fundamental types of sketch constraints? -
correct answer ✅Geometrical and dimensional
To clock a hexagonal feature so that it rests horizontally on one
side, I would... -
correct answer ✅Apply a horizontal constraint
To create a revolved feature, the profile and the axis of the
revolution must be what? -
correct answer ✅Coplanar
, MAE 1351 Exam Questions & Answers
(Grade A+)
To create a solid of revolution, I must...
A) Select a plain line from the sketch to use as an axis
B) Make an axis in the sketch using a construction line
C) Use reference geometry to make an axis
D) Any of the above will work -
correct answer ✅D) Any of the above will work
I have a distance in my sketch preceded by a "sigma" symbol. This
means... -
correct answer ✅It is a dimension driven by a parametric formula
Graphical User Interface (GUI) -
correct answer ✅The format of information on the visual display
of a computer, giving its user control of the input, output, and
editing of the information
primary modeling planes, principal viewing planes, or datum planes
-
correct answer ✅The planes representing the XY-, XZ-, and YZ-
planes in a Cartesian coordinate system.
(Grade A+)
The engineering design process follows the same steps as the
scientific discovery process, or scientific method. True? -
correct answer ✅No; there are major differences
The term "IPS" in SolidWorks refers to... -
correct answer ✅measurement units
To create an extrusion, I must first draw a sketch on a surface. True?
-
correct answer ✅Yes, but the surface must be flat
What are the fundamental types of sketch constraints? -
correct answer ✅Geometrical and dimensional
To clock a hexagonal feature so that it rests horizontally on one
side, I would... -
correct answer ✅Apply a horizontal constraint
To create a revolved feature, the profile and the axis of the
revolution must be what? -
correct answer ✅Coplanar
, MAE 1351 Exam Questions & Answers
(Grade A+)
To create a solid of revolution, I must...
A) Select a plain line from the sketch to use as an axis
B) Make an axis in the sketch using a construction line
C) Use reference geometry to make an axis
D) Any of the above will work -
correct answer ✅D) Any of the above will work
I have a distance in my sketch preceded by a "sigma" symbol. This
means... -
correct answer ✅It is a dimension driven by a parametric formula
Graphical User Interface (GUI) -
correct answer ✅The format of information on the visual display
of a computer, giving its user control of the input, output, and
editing of the information
primary modeling planes, principal viewing planes, or datum planes
-
correct answer ✅The planes representing the XY-, XZ-, and YZ-
planes in a Cartesian coordinate system.
